NSN 2510-01-158-3243 10871273, 01-158-3243, 011583243
Product Details | LEAF SPRING ASSEMBLY SHACKLE
2510-01-158-3243 An open link of various shapes with extended legs, usually having transverse holes in the legs to accommodate a retaining pin, bolt, bushing, or the like, or having threaded legs for a plate attachment, and having a connection facility opposite the legs so designed to attach a SPRING ASSEMBLY, LEAF to a rigid supporting hanger on a vehicle. Excludes SHACKLE and CLEVIS, ROD END.
Part Alternates: 10871273, 2510-01-158-3243, 01-158-3243, 2510011583243, 011583243
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 20 JUL 1983 | 01-158-3243 | 22100 ( SHACKLE, LEAF SPRING ASSEMBLY ) |
Drawings & Photos | NSN 2510-01-158-3243
Demand History | NSN 2510-01-158-3243
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 011583243 | 2012-08-222 | 1 | US |
Cross Reference | NSN 2510-01-158-3243
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10871273 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2510-01-158-3243
Related Products | NSN 2510-01-158-3243
Technical Data | NSN 2510-01-158-3243
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON MALLEABLE OVERALL |

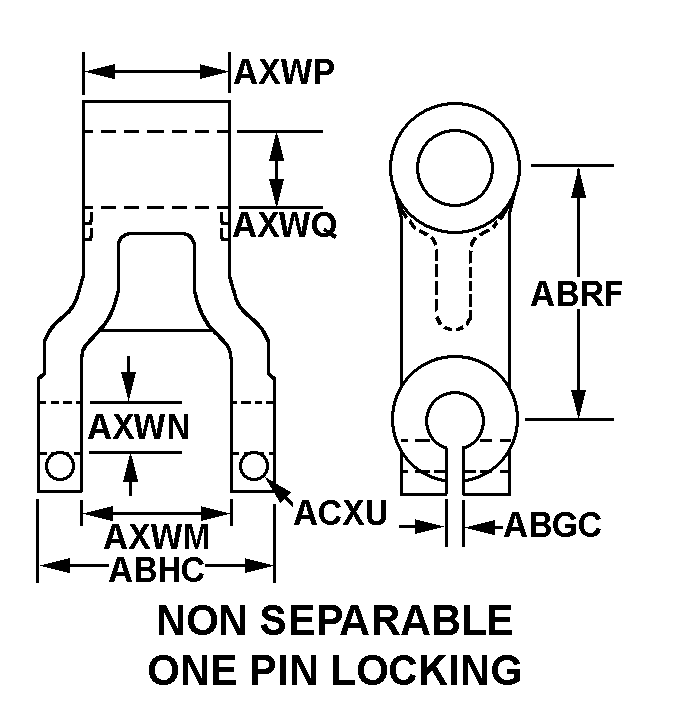

| STYLE DESIGNATOR | N3 NON SEPARABLE ONE PIN LOCKING |
| SLOT WIDTH | 0.156 INCHES NOMINAL |
| OVERALL WIDTH | 4.843 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 4.375 INCHES NOMINAL |
| PINHOLE DIAMETER | 0.514 INCHES NOMINAL |
| WIDTH BETWEEN LEGS | 3.016 INCHES NOMINAL |
| LEG HOLE DIAMETER | 2.000 INCHES NOMINAL |
| ATTACHING END WIDTH | 3.000 INCHES NOMINAL |
| ATTACHING END HOLE DIAMETER | 2.000 INCHES NOMINAL |
| FEATURES PROVIDED | BUSHING |
Restrictions/Controls & Freight Information | NSN 2510-01-158-3243
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019470 | AUTO SHACKLES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
