Product Details | SUSPENSION TORSION BAR

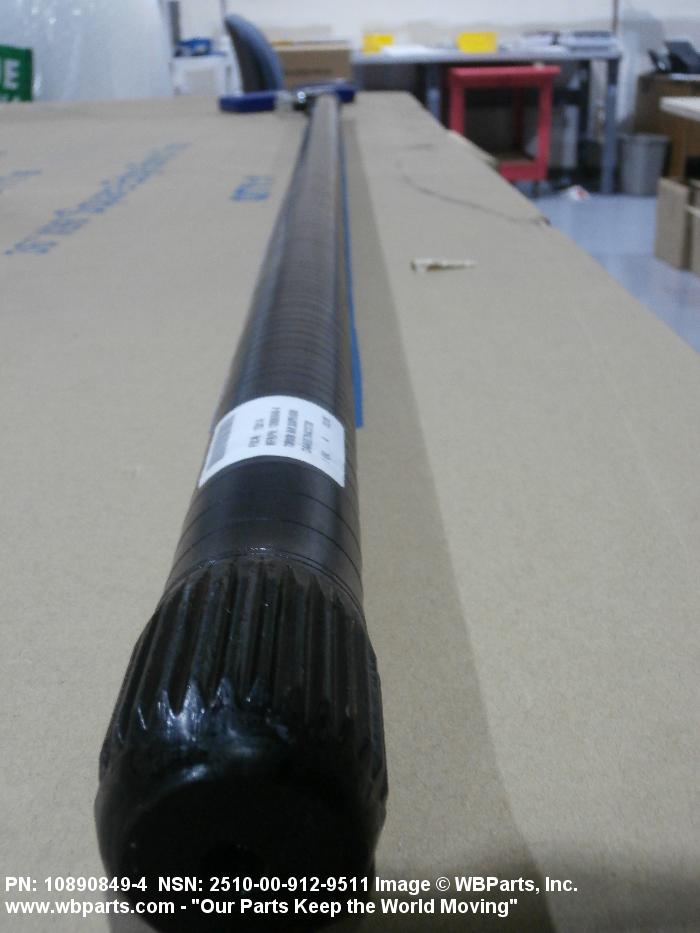

2510-00-912-9511 A straight metal item having a solid or tubular circular cross section with serrations, flats, or the like, on each end. It is designed to withstand a severe twisting action along its longitudinal axis, while held fast at the ends. It is used in the suspension system of a vehicle to absorb road shock. See also TORQUE ROD, TANDEM AXLE.

Part Alternates: 10890849-4, 2510-00-912-9511, 00-912-9511, 2510009129511, 108908494, 009129511

Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components

Supply Group (FSG) NSN Assign. NIIN
25 01 JAN 1960 00-912-9511

Drawings & Photos | NSN 2510-00-912-9511


Demand History | NSN 2510-00-912-9511

Part Number Request Date QTY Origin
2510-00-912-9511 2023-09-261 2 DIBBS
2510-00-912-9511 2023-09-249 2 DIBBS
2510-00-912-9511 2020-11-335 3 DIBBS
2510-00-912-9511 2020-11-335 3 DIBBS
2510-00-912-9511 2018-10-291 7 DIBBS
2510-00-912-9511 2017-10-283 1 DIBBS
2510-00-912-9511 2017-04-101 35 DIBBS
2510-00-912-9511 2016-08-236 3 DIBBS
2510-00-912-9511 2016-07-193 35 DIBBS
2510-00-912-9511 2016-06-180 35 DIBBS
2510-00-912-9511 2016-02-56 35 United States
2510-00-912-9511 2016-01-14 1 DIBBS
2510-00-912-9511 2015-05-142 35 DIBBS
2510-00-912-9511 2015-05-131 35 DIBBS
2510-00-912-9511 2015-03-89 35 DIBBS
2510-00-912-9511 2015-03-77 35 DIBBS
2510-00-912-9511 2015-02-36 3 DIBBS
2510-00-912-9511 2012-09-261 4 DIBBS
2510-00-912-9511 2011-01-24 155 AU

Cross Reference | NSN 2510-00-912-9511

Part Number Cage Code Manufacturer
10890849-4 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2510-00-912-9511

Technical Data | NSN 2510-00-912-9511

Characteristic Specifications
MATERIAL STEEL
CONSTRUCTION SOLID

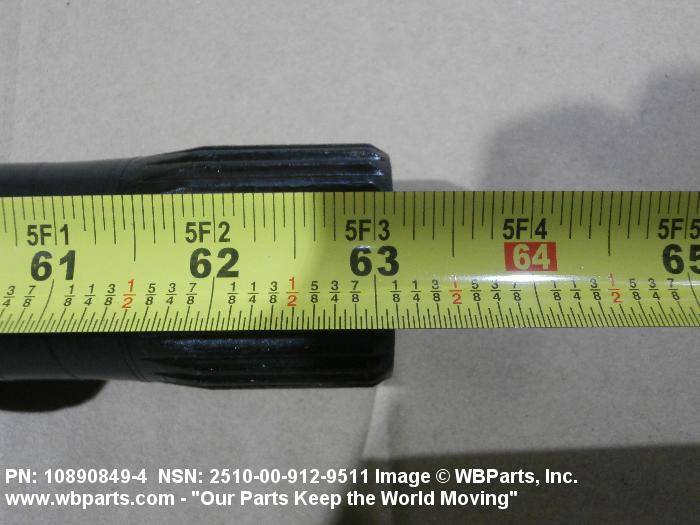

OVERALL LENGTH 63.000 INCHES NOMINAL

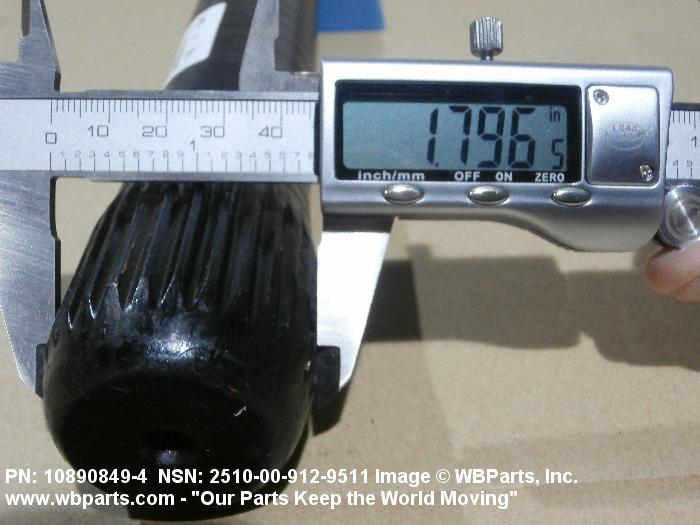

OUTSIDE DIAMETER 1.610 INCHES NOMINAL
TWIST DIRECTION COUNTERCLOCKWISE
FIRST END CHAMFER LENGTH 0.625 INCHES NOMINAL

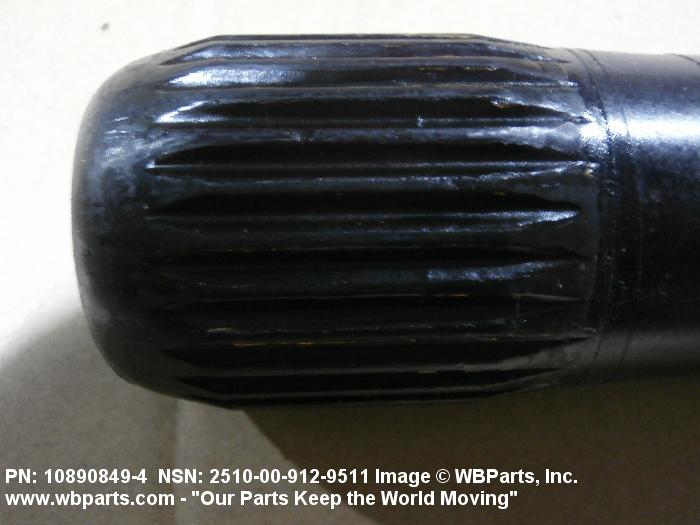

FIRST END CROSS-SECTIONAL SHAPE SERRATED
FIRST END TEETH QUANTITY 28
FIRST END SERRATION LENGTH 1.125 INCHES NOMINAL
FIRST END MAJOR DIAMETER 1.813 INCHES NOMINAL
FIRST END PITCH DIAMETER 1.750 INCHES NOMINAL
FIRST END PRESSURE ANGLE IN DEG 45.00

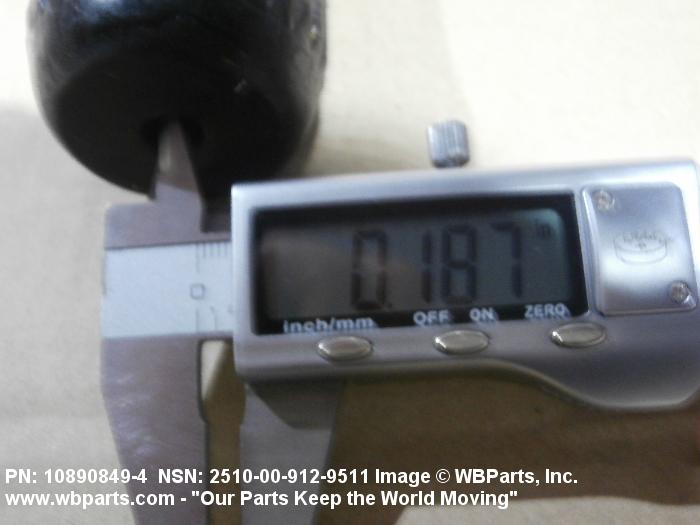

SECOND END CHAMFER LENGTH 0.188 INCHES NOMINAL
SECOND END CROSS-SECTIONAL SHAPE SERRATED
SECOND END TEETH QUANTITY 28
SECOND END SERRATION LENGTH 1.125 INCHES NOMINAL
SECOND END MAJOR DIAMETER 1.813 INCHES NOMINAL
SECOND END PITCH DIAMETER 1.750 INCHES NOMINAL
SECOND END PRESSURE ANGLE IN DEG 45.00

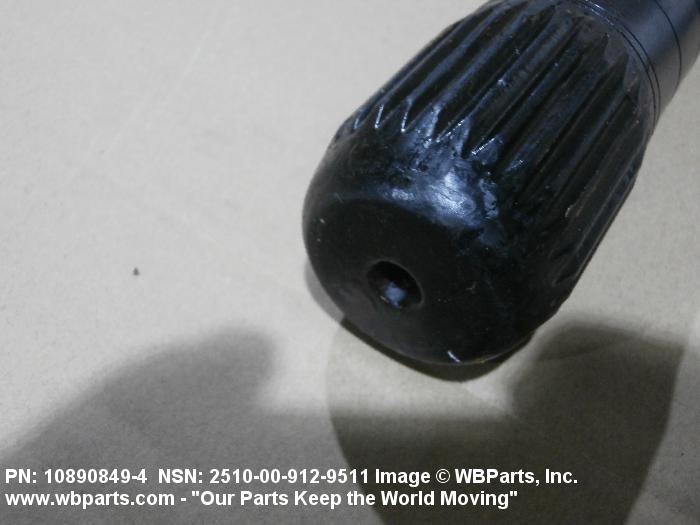

SOLID BAR END CHARACTERISTIC AT SECOND END THREADED HOLE
SECOND END THREAD SIZE 1/2-20
SECOND END THREAD SERIES/TYPE DESIGNATOR UNF
SECOND END INTERNAL THREAD LENGTH 0.812 INCHES NOMINAL
SECOND END THREAD CLASS 2B
SECOND END THREAD DIRECTION RIGHT-HAND
COVER NOT PROVIDED
MANUFACTURERS CODE 19207
DESIGN CONTROL REFERENCE 10890849-4
