NSN 2510-00-562-5139 005625139
Product Details | LEAF SPRING
2510-00-562-5139 A spring relatively thin in proportion to its length and width, when assembled with similar items forms a SPRING ASSEMBLY, LEAF.
Part Alternates: 005625139
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-562-5139 | 11059 ( SPRING, LEAF ) |
Drawings & Photos | NSN 2510-00-562-5139
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2510-00-562-5139
Related Products | NSN 2510-00-562-5139
Technical Data | NSN 2510-00-562-5139
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| EYE INSIDE DIAMETER WITHOUT BUSHING | 1.125 INCHES NOMINAL FIRST END 1.125 INCHES NOMINAL SECOND END |
| EYE INSIDE DIAMETER WITH BUSHING | 0.874 INCHES MINIMUM AND 0.878 INCHES MAXIMUM FIRST END 0.874 INCHES MINIMUM AND 0.878 INCHES MAXIMUM SECOND END |

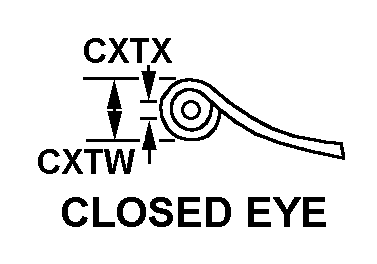

| END STYLE | J3 CLOSED EYE BOTH ENDS |
| SPRING LENGTH UNDER LOAD | 40.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2510-00-562-5139
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
