NSN 2510-00-318-1138 22QK35, 8332830, 00-318-1138
Product Details | LEAF SPRING ASSEMBLY SHACKLE
2510-00-318-1138 An open link of various shapes with extended legs, usually having transverse holes in the legs to accommodate a retaining pin, bolt, bushing, or the like, or having threaded legs for a plate attachment, and having a connection facility opposite the legs so designed to attach a SPRING ASSEMBLY, LEAF to a rigid supporting hanger on a vehicle. Excludes SHACKLE and CLEVIS, ROD END.
Part Alternates: 22QK35, 8332830, 2510-00-318-1138, 00-318-1138, 2510003181138, 003181138
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-318-1138 | 22100 ( SHACKLE, LEAF SPRING ASSEMBLY ) |
Drawings & Photos | NSN 2510-00-318-1138
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2510-00-318-1138
Related Products | NSN 2510-00-318-1138
Technical Data | NSN 2510-00-318-1138
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-681 GRADE 65-35 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

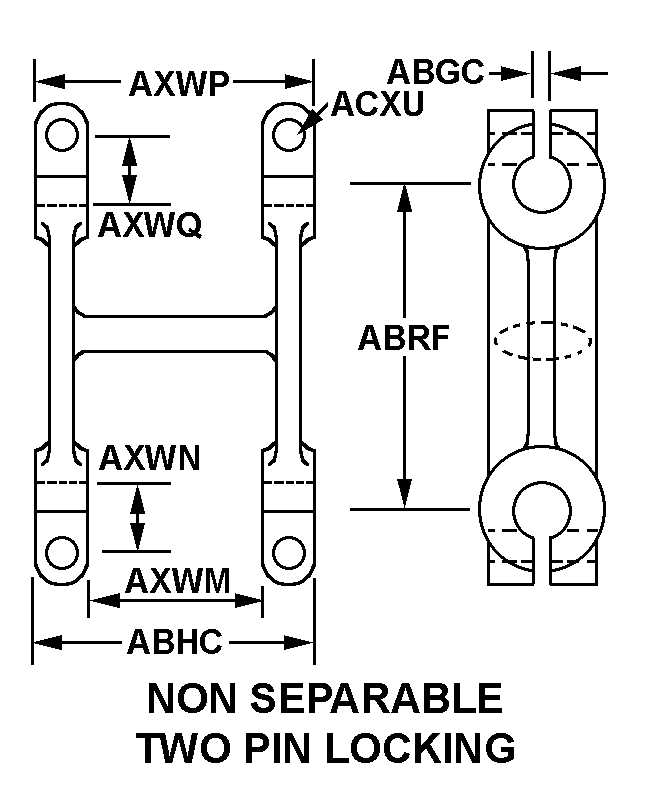

| STYLE DESIGNATOR | N2 NON SEPARABLE TWO PIN LOCKING |
| SLOT WIDTH | 0.110 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| OVERALL WIDTH | 5.182 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 6.500 INCHES NOMINAL |
| PINHOLE DIAMETER | 0.520 INCHES NOMINAL |
| WIDTH BETWEEN LEGS | 2.940 INCHES MINIMUM AND 2.960 INCHES MAXIMUM |
| LEG HOLE DIAMETER | 1.500 INCHES NOMINAL |
| ATTACHING END WIDTH | 5.182 INCHES NOMINAL |
| ATTACHING END HOLE DIAMETER | 1.500 INCHES NOMINAL |
| FEATURES PROVIDED | BUSHING |
Restrictions/Controls & Freight Information | NSN 2510-00-318-1138
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019470 | AUTO SHACKLES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
