NSN 2330-01-337-8944 MILS45384GTYPEIIICLASS3, MIL-S-45384GTYPEIIICLASS3, 01-337-8944
Product Details | FLAT BED TRAILER
2330-01-337-8944 A trailer with a flat load carrying platform without sides or end gate; the platform must be of solid, one level construction suspended above the wheels and must not include a gooseneck or wheel recesses that extend through the bed. It may have beveled edge(s) to facilitate loading. See also TRAILER, LOW BED and TRAILER, STAKE.
Part Alternates: MILS45384GTYPEIIICLASS3, MIL-S-45384GTYPEIIICLASS3, 2330-01-337-8944, 01-337-8944, 2330013378944, 013378944
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 23 APR 1991 | 01-337-8944 | 16259 ( TRAILER, FLAT BED ) |
Drawings & Photos | NSN 2330-01-337-8944
Cross Reference | NSN 2330-01-337-8944
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-S-45384GTYPEIIICLASS3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-01-337-8944
Related Products | NSN 2330-01-337-8944
Technical Data | NSN 2330-01-337-8944
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 25.00 TONS |
| BODY MATERIAL | STEEL |
| LOAD PLATFORM LENGTH | 541.000 INCHES NOMINAL |
| BODY OVERALL WIDTH | 96.000 INCHES NOMINAL |
| LOADING RAMP | NOT INCLUDED |
| BED TYPE | FIXED |
| TRANSPORTING CRANE SHOVEL ATTACHMENT DESIGN FEATURE | NOT INCLUDED |
| OVERALL LENGTH | 577.000 INCHES NOMINAL |
| OVERALL WIDTH | 96.000 INCHES NOMINAL |
| DISTANCE FROM BODY FRONT TO DRAWBAR COUPLER CENTER | 36.000 INCHES NOMINAL |
| SUSPENSION TYPE | ANY ACCEPTABLE |

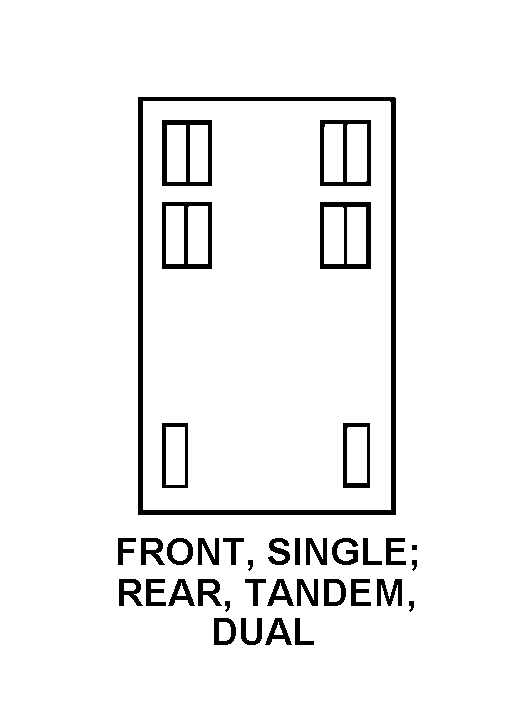

| WHEEL ARRANGEMENT STYLE | 26 FRONT, SINGLE, REAR TANDEM, DUAL |
| PARKING BRAKES | INCLUDED |
| DRAWBAR TYPE | ANY ACCEPTABLE |
| DRAWBAR CHARACTERISTIC | ANY ACCEPTABLE |
| DRAWBAR COUPLER TYPE | ANY ACCEPTABLE |
| RETRACTABLE SUPPORT FEATURE | INCLUDED |
| SUPPORT TYPE | ADJUSTABLE LEG |
| TOWING PINTLE HOOK | NOT INCLUDED |
| SPECIAL FEATURES | AIR TRANSPORTABLE; 90 DEGREE TURNING RADIUS; LANDING GEAR; 12V AND 24V LIGHTING SYSTEMS; 6 FT LOADING PLATFORM; FIFTH WHEEL COUPLING |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-45384GTYPEIIICLASS3 |
Restrictions/Controls & Freight Information | NSN 2330-01-337-8944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189540 | VEHICLES:TRAILER CARS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 891 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2330-01-337-8944
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | W | RESTRICTED REQUISITIONING-SPECIAL INSTRUCTIONS APPLY (NON-STOCKED ITEMS) Indicates stock number has been assigned to a generic item for use in bid invitations, allowance lists, etc., against which no stocks are ever recorded. Requisitions will be submitted only in accordance with IMM/Service requisitioning procedures. (This code will be used, when applicable, in conjunction with Phrase Code S (Stock as NSN(s)). It is considered applicable for use when a procurement source(s) becomes available. The Phrase Code S and the applicable stock as? NSN(s) will then be applied for use in stock, store and issue actions.) |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
