NSN 2330-01-072-8402 CRP35TYDH, MILS45152, MIL-S-45152
Product Details | LOW BED SEMITRAILER
2330-01-072-8402 A semitrailer with a front gooseneck (with or without a deck) designed to provide low loading height for transporting heavy and/or bulky objects. Excludes SEMITRAILER, TANK TRANSPORTER and SEMITRAILER STAKE. See also SEMITRAILER, FLAT BED.
Part Alternates: CRP35TYDH, MILS45152, MIL-S-45152, 2330-01-072-8402, 01-072-8402, 2330010728402, 010728402
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 04 MAR 1979 | 01-072-8402 | 12982 ( SEMITRAILER, LOW BED ) |
Drawings & Photos | NSN 2330-01-072-8402
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-01-072-8402
Related Products | NSN 2330-01-072-8402
Technical Data | NSN 2330-01-072-8402
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 35.00 TONS |
| BODY MATERIAL | ANY ACCEPTABLE |
| FLOOR LEVEL DESIGN | TWO LEVEL |
| LOAD PLATFORM LENGTH | 192.000 INCHES NOMINAL |
| BODY OVERALL WIDTH | 95.000 INCHES NOMINAL |
| LOAD PLATFORM HEIGHT | 28.000 INCHES NOMINAL |
| LOADING RAMP | INCLUDED |
| BED TYPE | FIXED |
| STAKE POCKET | NOT INCLUDED |
| OVERALL LENGTH | 420.000 INCHES NOMINAL |
| OVERALL WIDTH | 95.000 INCHES NOMINAL |
| COUPLING TYPE | FIFTH WHEEL UPPER PLATE W/KINGPIN |
| DISTANCE FROM KINGPIN CENTER TO FRONT END | 16.000 INCHES MINIMUM AND 20.000 INCHES MAXIMUM |
| SUSPENSION TYPE | ANY ACCEPTABLE |
| CONVERTER DOLLY | NOT INCLUDED |

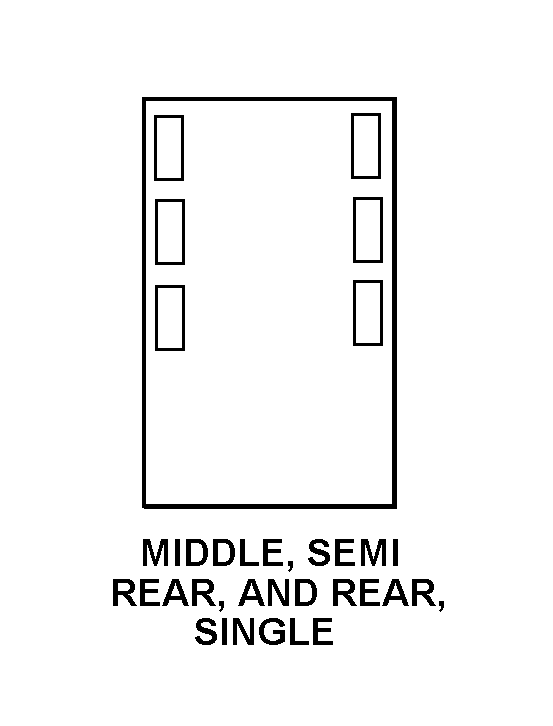

| WHEEL ARRANGEMENT STYLE | 9 MIDDLE, SEMI REAR AND REAR, SINGLE |
| SERVICE BRAKE TYPE | AIR |
| PARKING BRAKES | INCLUDED |
| RETRACTABLE SUPPORT FEATURE | NOT INCLUDED |
| TOWING PINTLE HOOK | NOT INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | II TYPE AND C CLASS AND 35T SIZE AND 4W STYLE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-45152 |
Restrictions/Controls & Freight Information | NSN 2330-01-072-8402
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189140 | VEHICLES:FRT CARTS/TRUCKS ETC |
| Less than car load rating | G | 125 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 891 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2330-01-072-8402
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
