Product Details | FLAT BED SEMITRAILER

2330-01-066-4248 A semitrailer with a flat load carrying platform without sides or end gate. The platform must be of solid, one level construction that is raised above the wheels and must not include a gooseneck or wheel recess that extend through the bed; it may have a beveled edge(s) to facilitate loading. See also SEMITRAILER, LOW BED and SEMITRAILER STAKE.

Part Alternates: V-488/M, V488M, 583Z4600809, 583Z4600-809, 2330-01-066-4248, 01-066-4248, 2330010664248, 010664248

Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers

Supply Group (FSG) NSN Assign. NIIN
23 09 OCT 1978 01-066-4248

Drawings & Photos | NSN 2330-01-066-4248


Cross Reference | NSN 2330-01-066-4248

Part Number Cage Code Manufacturer
583Z4600-809 81755 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
V-488/M 80058 JOINT ELECTRONICS TYPE DESIGNATION SYSTEM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2330-01-066-4248

Technical Data | NSN 2330-01-066-4248

Characteristic Specifications
CAPACITY RATING ANY ACCEPTABLE
BODY MATERIAL ANY ACCEPTABLE
LOAD PLATFORM LENGTH ANY ACCEPTABLE
BODY OVERALL WIDTH ANY ACCEPTABLE
LOADING RAMP NOT INCLUDED
BED TYPE ANY ACCEPTABLE
STAKE POCKET NOT INCLUDED
OVERALL LENGTH 480.000 INCHES NOMINAL
OVERALL WIDTH 96.000 INCHES NOMINAL
COUPLING TYPE FIFTH WHEEL UPPER PLATE W/KINGPIN
DISTANCE FROM KINGPIN CENTER TO FRONT END ANY ACCEPTABLE
SUSPENSION TYPE ANY ACCEPTABLE
CONVERTER DOLLY NOT INCLUDED

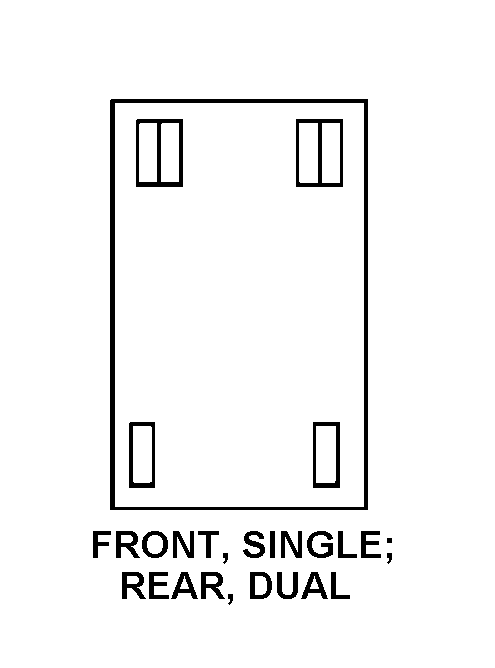

WHEEL ARRANGEMENT STYLE 25 FRONT, SINGLE, REAR, DUAL
SERVICE BRAKE TYPE AIR
PARKING BRAKES NOT INCLUDED
RETRACTABLE SUPPORT FEATURE NOT INCLUDED
AUXILIARY SUPPORT TYPE ANY ACCEPTABLE
TOWING PINTLE HOOK NOT INCLUDED
SPECIAL FEATURES WITH STANDARD ICC 12 VDC LIGHTING SYSTEM,FRONT LANDING GEAR ASSY,TWO FIXTURE ASSY MOUNTED ON TOP OF BED TO SUPPORT ANTENNAS
III SPECIFIC USE USED TO TRANSPORT S-BAND SCANNER ANTENNAS FOR RADAR TRAINING SET AN/MPS-T1-V2,V4

Restrictions/Controls & Freight Information | NSN 2330-01-066-4248

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
