NSN 2330-00-952-7110 FVP209, 00-952-7110, 009527110
Product Details | VAN SEMITRAILER
2330-00-952-7110 A semitrailer with an inclosed body which may be insulated, designed to protect cargo and equipment from the elements and pilferage and/or to provide working and/or living quarters for personnel. Excludes van type semitrailers equipped for specific functions.
Part Alternates: FVP209, 2330-00-952-7110, 00-952-7110, 2330009527110, 009527110
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 08 MAR 1968 | 00-952-7110 | 12977 ( SEMITRAILER, VAN ) |
Drawings & Photos | NSN 2330-00-952-7110
Cross Reference | NSN 2330-00-952-7110
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FVP209 | 80328 | DORSEY TRAILERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-00-952-7110
Related Products | NSN 2330-00-952-7110
Technical Data | NSN 2330-00-952-7110
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 18.000 TONS |
| BODY MATERIAL | ALUMINUM AND STEEL AND WOOD |
| INSULATED FEATURE | NOT INCLUDED |
| INSIDE LENGTH | 415.000 INCHES NOMINAL |
| INSIDE WIDTH | 93.000 INCHES NOMINAL |
| INSIDE HEIGHT | 103.000 INCHES NOMINAL |
| DOOR LOCATION AND QUANTITY | 1 REAR END AND 2 RIGHT SIDE |
| TAILGATE | NOT INCLUDED |
| FLOOR LEVEL DESIGN | TWO LEVEL |
| LOADING RAMP | NOT INCLUDED |
| BODY FRONT SHAPE | STRAIGHT |
| INTERIOR ELECTRIC OUTLET | INCLUDED |
| VOLTAGE IN VOLTS | 110.0 |
| VENTILATION FEATURE | NOT INCLUDED |
| OVERALL LENGTH | 420.000 INCHES NOMINAL |
| OVERALL WIDTH | 96.000 INCHES NOMINAL |
| OVERALL HEIGHT | 139.000 INCHES NOMINAL |
| COUPLING TYPE | FIFTH WHEEL UPPER PLATE W/KINGPIN |
| DISTANCE FROM KINGPIN CENTER TO FRONT END | 42.000 INCHES |
| SUSPENSION TYPE | THROUGH SHAFT AXLE |
| CONVERTER DOLLY | NOT INCLUDED |

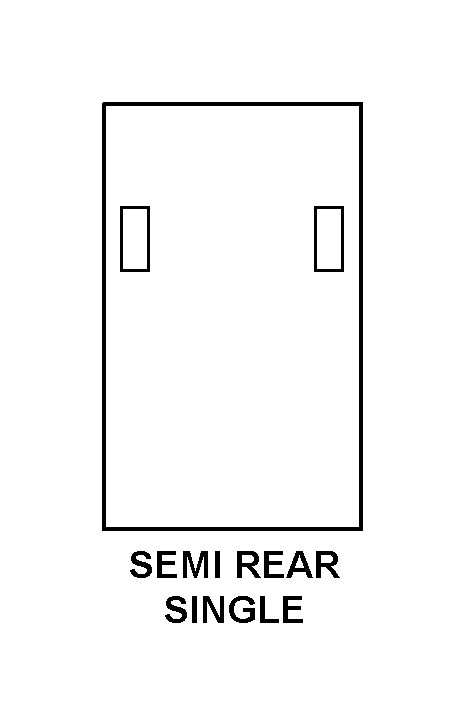

| WHEEL ARRANGEMENT STYLE | 2 SEMI REAR, SINGLE |
| SERVICE BRAKE TYPE | AIR |
| PARKING BRAKES | NOT INCLUDED |
| RETRACTABLE SUPPORT FEATURE | INCLUDED |
| OPERATION METHOD | MANUAL |
| TOWING PINTLE HOOK | NOT INCLUDED |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | NAME AND MODEL YEAR 1963 |
| MANUFACTURERS CODE | 80328 |
| DESIGN CONTROL REFERENCE | FVP209 |
Restrictions/Controls & Freight Information | NSN 2330-00-952-7110
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189140 | VEHICLES:FRT CARTS/TRUCKS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 894 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2330-00-952-7110
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | M | Commercial Vehicles |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | PZ | Nontactical Wheeled Vehicles |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | A | SERVICE/AGENCY-REGULATED (Service/Agency use only.) # Issue, transfer or shipment is controlled by authorities above the ICP level to assure proper and equitable distribution. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
