NSN 2330-00-679-5581 8736254, 00-679-5581, 006795581
Product Details | VAN SEMITRAILER
2330-00-679-5581 A semitrailer with an inclosed body which may be insulated, designed to protect cargo and equipment from the elements and pilferage and/or to provide working and/or living quarters for personnel. Excludes van type semitrailers equipped for specific functions.
Part Alternates: 8736254, 2330-00-679-5581, 00-679-5581, 2330006795581, 006795581
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 13 MAY 1987 | 00-679-5581 | 12977 ( SEMITRAILER, VAN ) |
Drawings & Photos | NSN 2330-00-679-5581
Cross Reference | NSN 2330-00-679-5581
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8736254 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-00-679-5581
Related Products | NSN 2330-00-679-5581
Technical Data | NSN 2330-00-679-5581
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 12.00 TONS |
| INSIDE LENGTH | 344.250 INCHES NOMINAL |
| INSIDE WIDTH | 96.000 INCHES NOMINAL |
| DOOR LOCATION AND QUANTITY | 2 REAR END |
| BODY FRONT SHAPE | STRAIGHT |
| OVERALL LENGTH | 344.250 INCHES NOMINAL |
| OVERALL WIDTH | 96.750 INCHES NOMINAL |
| OVERALL HEIGHT | 139.375 INCHES NOMINAL |

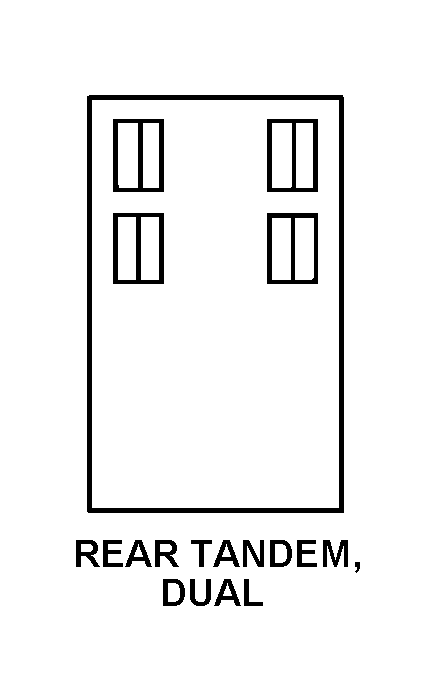

| WHEEL ARRANGEMENT STYLE | 15 REAR TANDEM, DUAL |
Restrictions/Controls & Freight Information | NSN 2330-00-679-5581
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189140 | VEHICLES:FRT CARTS/TRUCKS,SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | C | 250.0 |
| Water commodity Code | 893 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2330-00-679-5581
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | L | Tactical Vehicles |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | PA | Semi-Trailer, Van, Stake Configurations |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
