NSN 2330-00-404-5940 AFLT74025, AFLT-7-4025, MILS45152
Product Details | LOW BED SEMITRAILER
2330-00-404-5940 A semitrailer with a front gooseneck (with or without a deck) designed to provide low loading height for transporting heavy and/or bulky objects. Excludes SEMITRAILER, TANK TRANSPORTER and SEMITRAILER STAKE. See also SEMITRAILER, FLAT BED.
Part Alternates: AFLT74025, AFLT-7-4025, MILS45152, 2330-00-404-5940, 00-404-5940, 2330004045940, 004045940
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 08 AUG 1969 | 00-404-5940 | 12982 ( SEMITRAILER, LOW BED ) |
Drawings & Photos | NSN 2330-00-404-5940
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-00-404-5940
Related Products | NSN 2330-00-404-5940
Technical Data | NSN 2330-00-404-5940
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 20.00 TONS |
| BODY MATERIAL | STEEL AND WOOD |
| FLOOR LEVEL DESIGN | ONE LEVEL |
| LOAD PLATFORM LENGTH | 480.000 INCHES NOMINAL |
| BODY OVERALL WIDTH | 95.000 INCHES NOMINAL |
| LOAD PLATFORM HEIGHT | 44.000 INCHES NOMINAL |
| LOADING RAMP | NOT INCLUDED |
| BED TYPE | FIXED |
| STAKE POCKET | INCLUDED |
| GOOSENECK TYPE | ANY ACCEPTABLE |
| GOOSENECK LENGTH | ANY ACCEPTABLE |
| GOOSENECK LOADING DECK | NOT INCLUDED |
| OVERALL LENGTH | ANY ACCEPTABLE |
| OVERALL WIDTH | ANY ACCEPTABLE |
| COUPLING TYPE | FIFTH WHEEL UPPER PLATE W/KINGPIN |
| DISTANCE FROM KINGPIN CENTER TO FRONT END | 22.000 INCHES NOMINAL |
| SUSPENSION TYPE | ANY ACCEPTABLE |
| CONVERTER DOLLY | NOT INCLUDED |

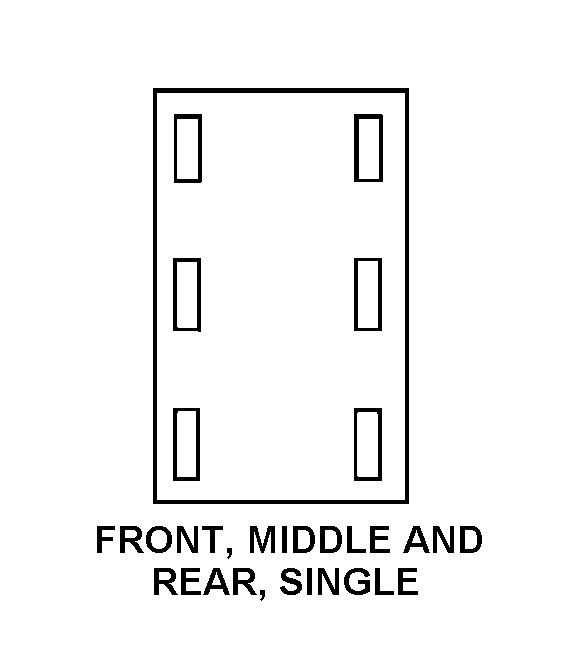

| WHEEL ARRANGEMENT STYLE | 10 FRONT, MIDDLE AND REAR, SINGLE |
| SERVICE BRAKE TYPE | ANY ACCEPTABLE |
| PARKING BRAKES | INCLUDED OR NOT INCLUDED |
| RETRACTABLE SUPPORT FEATURE | INCLUDED |
| OPERATION METHOD | MANUAL |
| AUXILIARY SUPPORT TYPE | ANY ACCEPTABLE |
| TOWING PINTLE HOOK | INCLUDED OR NOT INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | 5 TYPE AND A CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS45152 |
Restrictions/Controls & Freight Information | NSN 2330-00-404-5940
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189140 | VEHICLES:FRT CARTS/TRUCKS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 894 | unknown |
| Originating Activity Code | BE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2330-00-404-5940
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | M | Commercial Vehicles |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | PZ | Nontactical Wheeled Vehicles |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Fund Code | AF | HQ USAF regulated. |
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | A | SERVICE/AGENCY-REGULATED (Service/Agency use only.) # Issue, transfer or shipment is controlled by authorities above the ICP level to assure proper and equitable distribution. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
