NSN 2330-00-386-6694 LS360S, LS3-60S, 00-386-6694
Product Details | LOW BED TRAILER
2330-00-386-6694 A trailer having a flat platform(s) of one or more levels, designed to provide low loading height for transporting heavy and/or bulky objects. It must have one or more of the following characteristics: front gooseneck, wheel recesses through the bed, or the bed (excluding fenders) suspended lower than the wheel tops. Excludes TRAILER, TANK TRANSPORTER and TRAILER, STAKE. See also TRAILER, FLAT BED.
Part Alternates: LS360S, LS3-60S, 2330-00-386-6694, 00-386-6694, 2330003866694, 003866694
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 25 MAR 1974 | 00-386-6694 | 12988 ( TRAILER, LOW BED ) |
Drawings & Photos | NSN 2330-00-386-6694
Cross Reference | NSN 2330-00-386-6694
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS3-60S | 82646 | ALLIED PRODUCTS CORP LOADCRAFT DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-00-386-6694
Related Products | NSN 2330-00-386-6694
Technical Data | NSN 2330-00-386-6694
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 60.00 TONS |
| BODY MATERIAL | ALUMINUM AND WOOD |
| FLOOR LEVEL DESIGN | ONE LEVEL |
| LOAD PLATFORM LENGTH | 194.000 INCHES NOMINAL |
| BODY OVERALL WIDTH | 95.000 INCHES NOMINAL |
| LOAD PLATFORM HEIGHT | 42.000 INCHES NOMINAL |
| LOADING RAMP | NOT INCLUDED |
| BED TYPE | FIXED |
| GOOSENECK TYPE | FIXED |
| GOOSENECK LENGTH | 40.000 INCHES NOMINAL |
| GOOSENECK LOADING DECK | NOT INCLUDED |
| OVERALL LENGTH | 480.000 INCHES NOMINAL |
| OVERALL WIDTH | 95.000 INCHES NOMINAL |
| DISTANCE FROM BODY FRONT TO DRAWBAR COUPLER CENTER | 54.000 INCHES NOMINAL |
| SUSPENSION TYPE | THROUGH SHAFT AXLE |

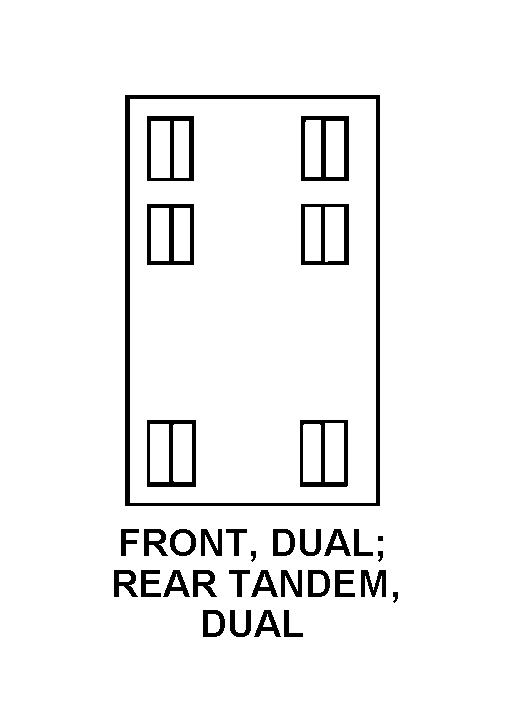

| WHEEL ARRANGEMENT STYLE | 27 FRONT, DUAL, REAR TANDEM, DUAL |
| SERVICE BRAKE TYPE | AIR |
| PARKING BRAKES | NOT INCLUDED |
| DRAWBAR TYPE | RIGID TONGUE |
| DRAWBAR CHARACTERISTIC | FIXED |
| DRAWBAR COUPLER TYPE | PIN |
| RETRACTABLE SUPPORT FEATURE | INCLUDED |
| SUPPORT TYPE | ADJUSTABLE LEG |
| AUXILIARY SUPPORT TYPE | LEG |
| TOWING PINTLE HOOK | NOT INCLUDED |
| SOLID TIRE | NOT INCLUDED |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY CAPACITY RATING |
| MANUFACTURERS CODE | 82646 |
| DESIGN CONTROL REFERENCE | LS3-60S |
Restrictions/Controls & Freight Information | NSN 2330-00-386-6694
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189140 | VEHICLES:FRT CARTS/TRUCKS ETC |
| Less than car load rating | G | 125 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 891 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2330-00-386-6694
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | M | Commercial Vehicles |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | PZ | Nontactical Wheeled Vehicles |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
