NSN 2330-00-294-8889 S52595, S5-2595, 00-294-8889
Product Details | MAINTENANCE TRAILER
2330-00-294-8889 A trailer equipped with a compartmented body specifically designed to house and/or transport tools, equipment and/or supplies for repair and maintenance functions, such as tire repair, cable splicing and the like. Excludes trailers complete with supplies and equipment.
Part Alternates: S52595, S5-2595, 2330-00-294-8889, 00-294-8889, 2330002948889, 002948889
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 01 JAN 1963 | 00-294-8889 | 16816 ( TRAILER, MAINTENANCE ) |
Drawings & Photos | NSN 2330-00-294-8889
Demand History | NSN 2330-00-294-8889
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2330-00-294-8889 | 2022-04-109 | 1 | US |
| 2330-00-294-8889 | 2011-09-273 | 1 | US |
Cross Reference | NSN 2330-00-294-8889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S5-2595 | 80049 | DEPARTMENT OF THE AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-00-294-8889
Related Products | NSN 2330-00-294-8889
Technical Data | NSN 2330-00-294-8889
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 3.00 TONS |
| BODY MATERIAL | STEEL AND WOOD |
| BODY TYPE | INCLOSED |
| HINGED TAILGATE | NOT INCLUDED |
| STORAGE FACILITY TYPE | COMPARTMENT |
| STORAGE FACILITY ACCESS LOCATION | SIDE |
| STORAGE FACILITY QUANTITY | 60 |
| FOLD-DOWN SIDE | NOT INCLUDED |
| OVERALL LENGTH | 200.000 INCHES NOMINAL |
| OVERALL WIDTH | 89.000 INCHES NOMINAL |
| DISTANCE FROM BODY FRONT TO DRAWBAR COUPLER CENTER | 45.500 INCHES NOMINAL |
| SUSPENSION TYPE | INDIVIDUAL COIL SPRING AND THROUGH SHAFT AXLE |

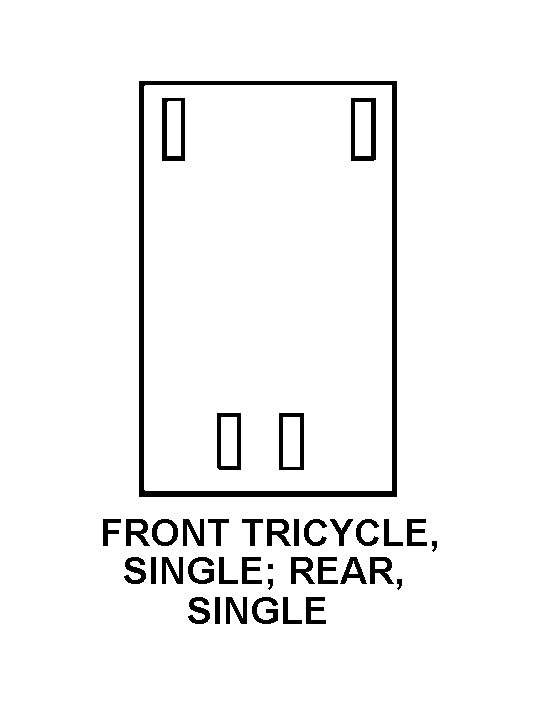

| WHEEL ARRANGEMENT STYLE | 7 FRONT TRICYCLE, SINGLE, REAR, SINGLE |
| SERVICE BRAKE TYPE | ELECTRIC |
| PARKING BRAKES | INCLUDED |
| DRAWBAR TYPE | RIGID A-FRAME |
| DRAWBAR CHARACTERISTIC | FIXED |
| DRAWBAR COUPLER TYPE | LUNETTE |
| RETRACTABLE SUPPORT FEATURE | NOT INCLUDED |
| TOWING PINTLE HOOK | INCLUDED |
| SPECIAL FEATURES | PAC AFJE /TYPE OF SERVICE FOR WHICH DESIGNED/ LIGHT MAINTENANCE SHOP |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MOUNTED ON ORD TYPE M2 CHEMICAL TRAILER CHASSIS |
| MANUFACTURERS CODE | 80049 |
| DESIGN CONTROL REFERENCE | S5-2595 |
Restrictions/Controls & Freight Information | NSN 2330-00-294-8889
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 2330-00-294-8889
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Source of Supply | JCL | |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
