NSN 2330-00-277-9337 MILT10240TYPEM10, 00-277-9337, 002779337
Product Details | CARGO TRAILER
2330-00-277-9337 A trailer with either a box type body, a lattice type body with a closed or partially closed top, or a body having integral sides and front panel, usually with a flat loading platform. May include removable top bows and tarpaulin.
Part Alternates: MILT10240TYPEM10, 2330-00-277-9337, 00-277-9337, 2330002779337, 002779337
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 01 JAN 1963 | 00-277-9337 | 12980 ( TRAILER, CARGO ) |
Drawings & Photos | NSN 2330-00-277-9337
Cross Reference | NSN 2330-00-277-9337
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILT10240TYPEM10 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-00-277-9337
Related Products | NSN 2330-00-277-9337
Technical Data | NSN 2330-00-277-9337
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 1.500 TONS |
| BODY TYPE | BOX W/LATTICE SIDE EXTENSIONS |
| BODY MATERIAL | STEEL |
| INSIDE LENGTH | 110.000 INCHES NOMINAL |
| INSIDE WIDTH | 74.000 INCHES NOMINAL |
| INSIDE HEIGHT | 18.000 INCHES NOMINAL |
| TAILGATE | INCLUDED |
| FLOOR LEVEL DESIGN | FLAT |
| LOADING RAMP | NOT INCLUDED |
| BODY FRONT SHAPE | STRAIGHT |
| BED TYPE | FIXED |
| PLATFORM LOADING HEIGHT ADJUSTABILITY | NONADJUSTABLE |
| OVERALL LENGTH | 182.000 INCHES NOMINAL |
| OVERALL WIDTH | 96.000 INCHES NOMINAL |
| DISTANCE FROM BODY FRONT TO DRAWBAR COUPLER CENTER | 50.000 INCHES NOMINAL |
| SUSPENSION TYPE | THROUGH SHAFT AXLE |
| DESIGN TYPE | WHEELED |

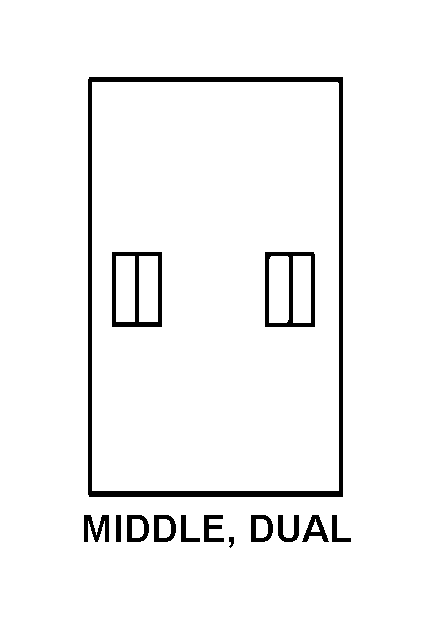

| WHEEL ARRANGEMENT STYLE | 12 MIDDLE, DUAL |
| SERVICE BRAKE TYPE | AIR-HYDRAULIC |
| PARKING BRAKES | INCLUDED |
| DRAWBAR TYPE | RIGID A-FRAME |
| DRAWBAR CHARACTERISTIC | FIXED |
| DRAWBAR COUPLER TYPE | LUNETTE |
| RETRACTABLE SUPPORT FEATURE | INCLUDED |
| SUPPORT TYPE | WHEEL |
| AUXILIARY SUPPORT TYPE | LEG |
| TOWING PINTLE HOOK | NOT INCLUDED |
| TOP BOWS | INCLUDED |
| TARPAULIN | INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | M-105 TYPE |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILT10240TYPEM10 |
Restrictions/Controls & Freight Information | NSN 2330-00-277-9337
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189140 | VEHICLES:FRT CARTS/TRUCKS,SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | C | 250.0 |
| Water commodity Code | 893 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2330-00-277-9337
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | L | Tactical Vehicles |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | PJ | Trailer, Prime Mover, 2 1/2 Ton |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | A | SERVICE/AGENCY-REGULATED (Service/Agency use only.) # Issue, transfer or shipment is controlled by authorities above the ICP level to assure proper and equitable distribution. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
