NSN 2040-01-559-6572 6070018, 01-559-6572, 015596572
Product Details | DOOR HANDLE
2040-01-559-6572 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 6070018, 2040-01-559-6572, 01-559-6572, 2040015596572, 015596572
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 28 DEC 2007 | 01-559-6572 | 18073 ( HANDLE, DOOR ) |

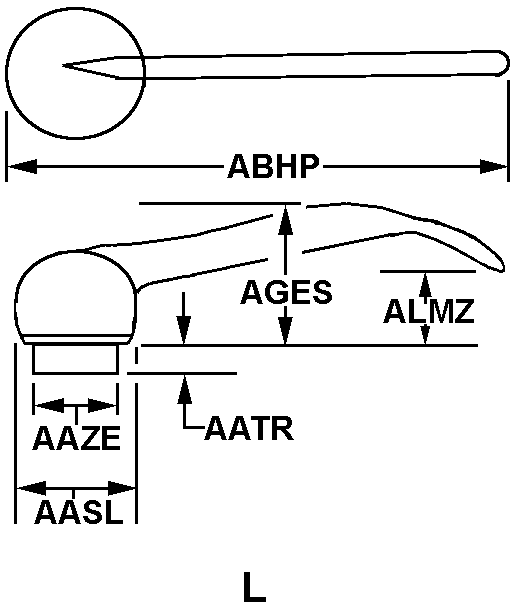

Drawings & Photos | NSN 2040-01-559-6572
Cross Reference | NSN 2040-01-559-6572
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6070018 | 79879 | PACIFIC BEARING COMPANY DBA PBC LINEAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2040-01-559-6572
Technical Data | NSN 2040-01-559-6572
| Characteristic | Specifications |
|---|---|
| MATERIAL | ZINC HANDLE |
| SURFACE TREATMENT | ZINC HANDLE |
| COLOR | BLACK, DULL HANDLE |
| STYLE DESIGNATOR | C3 L |
| HEAD DIAMETER | 0.710 INCHES NOMINAL |
| SHANK LENGTH | 0.250 INCHES NOMINAL |
| SHANK DIAMETER | 0.530 INCHES NOMINAL |
| OVERALL LENGTH | 2.910 INCHES NOMINAL |
| HANDLE HEIGHT | 1.440 INCHES NOMINAL |
| HANDLE CLEARANCE | 1.438 INCHES NOMINAL |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 1 |
| MOUNTING FACILITY LENGTH | 2.360 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.001 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.360 INCHES NOMINAL |
| SPECIAL FEATURES | HANDLE EXTENDS AT STRAIGHT ANGLE OF 20 DEGS FROM BASE SUPPORT |
| III END ITEM IDENTIFICATION | NAVY CODE 00243B395 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | STUD TYPE HANDLE - BLACK POWDER COATED |
Restrictions/Controls & Freight Information | NSN 2040-01-559-6572
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
