NSN 2040-01-470-1325 124-4322611 PC 62, 1244322611PC62, 4322611
Product Details | DOOR HANDLE
2040-01-470-1325 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 124-4322611 PC 62, 1244322611PC62, 4322611, 2040-01-470-1325, 01-470-1325, 2040014701325, 014701325
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 08 DEC 1999 | 01-470-1325 | 18073 ( HANDLE, DOOR ) |
Drawings & Photos | NSN 2040-01-470-1325
Demand History | NSN 2040-01-470-1325
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| JE262-3-STEEL | 2020-04-105 | 1 | DIBBS |
| 2040-01-470-1325 | 2016-02-40 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2040-01-470-1325
Technical Data | NSN 2040-01-470-1325
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL HANDLE |

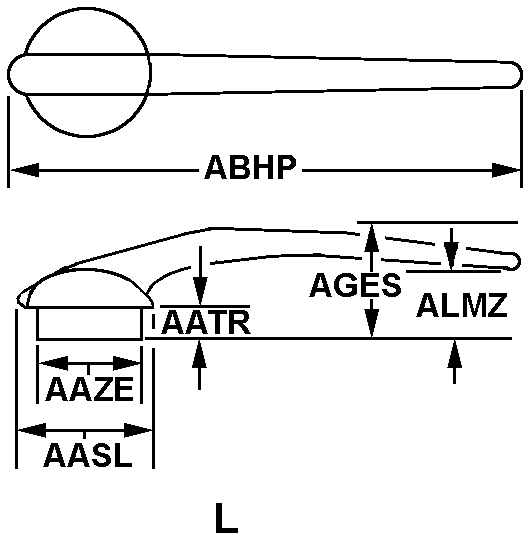

| STYLE DESIGNATOR | C5 L |
| HEAD DIAMETER | 1.1250 INCHES NOMINAL |
| SHANK LENGTH | 0.6250 INCHES NOMINAL |
| SHANK DIAMETER | 0.2500 INCHES NOMINAL |
| OVERALL LENGTH | 7.2500 INCHES NOMINAL |
| HANDLE HEIGHT | 1.8750 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.8750 INCHES NOMINAL |
| MOUNTING METHOD | SPINDLE AND SPRING PIN |
| III END ITEM IDENTIFICATION | USED ON NIMITZ CLASS CVN |
Restrictions/Controls & Freight Information | NSN 2040-01-470-1325
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2040-01-470-1325
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
