NSN 2040-01-459-1665 2047LC1, 2047-LC1, 01-459-1665
Product Details | CLOSED ROPE CHOCK
2040-01-459-1665 00001012040000000
Part Alternates: 2047LC1, 2047-LC1, 2040-01-459-1665, 01-459-1665, 2040014591665, 014591665
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 22 SEP 1998 | 01-459-1665 | 08258 ( CHOCK, ROPE, CLOSED0 ) |
Drawings & Photos | NSN 2040-01-459-1665
Cross Reference | NSN 2040-01-459-1665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2047-LC1 | 0TDN3 | BYFIELD MARINE SUPPLY INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2040-01-459-1665
Related Products | NSN 2040-01-459-1665
Technical Data | NSN 2040-01-459-1665
| Characteristic | Specifications |
|---|---|

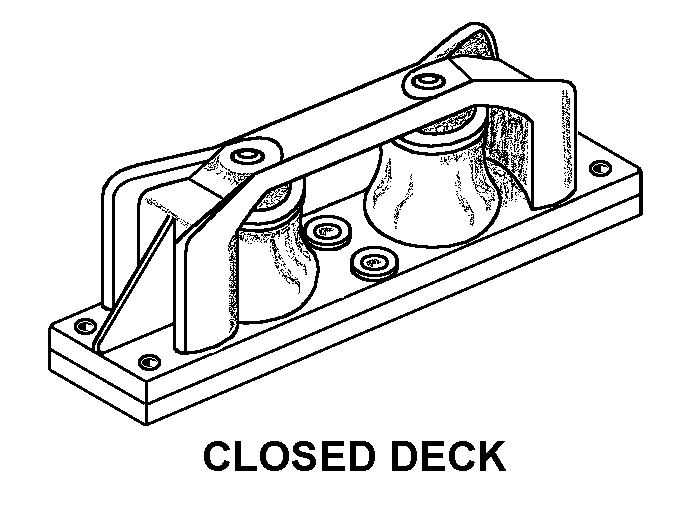

| STYLE DESIGNATOR | C16 CLOSED DECK |
| MATERIAL | STEEL, CORROSION RESISTING |
| OVERALL LENGTH | 4.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| OPENING LENGTH | 1.125 INCHES NOMINAL |
| SPECIAL FEATURES | CAPTIVE THREADED BOLT HOLDS LINE UP TO 1" DIAMETER SECURELY |
Restrictions/Controls & Freight Information | NSN 2040-01-459-1665
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 024580 | BOAT BIT/CHOCK MOORING/TOWING |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 810 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2040-01-459-1665
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
