NSN 2040-01-455-6948 22, 70022, 01-455-6948
Product Details | FLUKED MARINE ANCHOR
2040-01-455-6948 An assembly with one or two fixed or pivoted hooks or flukes at its lower end that is attached to a ship or other floating vessel by a cable or a chain, and that, being cast overboard, lays hold of the bottom material and thus holds the ship or other floating vessel in a particular location.
Part Alternates: 22, 70022, 2040-01-455-6948, 01-455-6948, 2040014556948, 014556948
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 12 MAY 1998 | 01-455-6948 | 04944 ( ANCHOR, MARINE, FLUKED ) |
Drawings & Photos | NSN 2040-01-455-6948
Demand History | NSN 2040-01-455-6948
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 70022 | 2023-07-200 | 10 | LV |
| 22 | 2019-02-41 | 1 | US |
| 22 | 2019-02-38 | 1 | US |
| 22 | 2016-07-209 | 12 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2040-01-455-6948
Technical Data | NSN 2040-01-455-6948
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | GALVANIZED |
| WEIGHT | 22.000 POUNDS NOMINAL |
| FLUKE DESIGN | FIXED |
| STOCK DESIGN | FIXED |
| CONSTRUCTION METHOD AND LOCATION | FABRICATED OVERALL |
| SHACKLE | INCLUDED |
| FLUKE HOLE | NOT INCLUDED |
| BALANCING BAND | NOT INCLUDED |

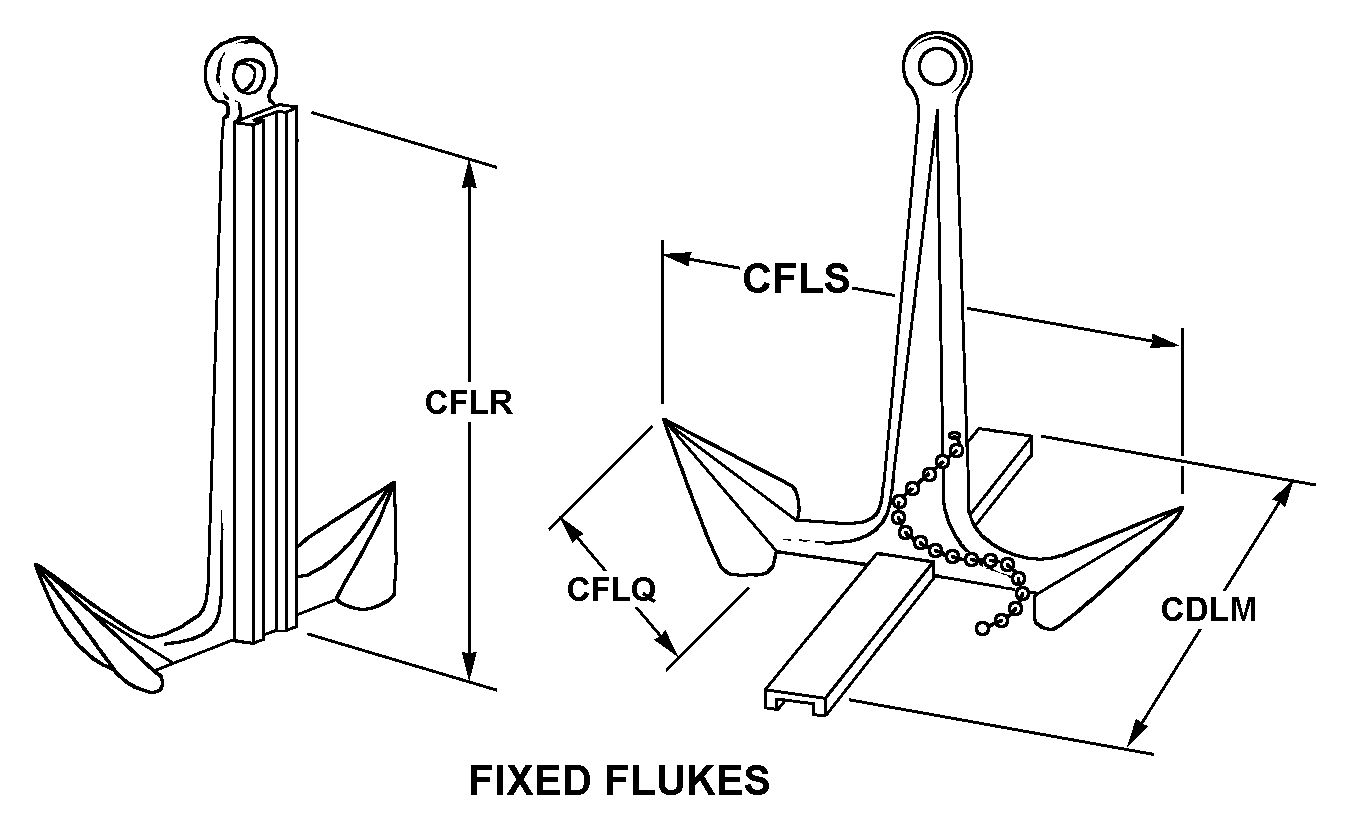

| STYLE DESIGNATOR | 6 FIXED FLUKE |
| STOCK OVERALL LENGTH | 26.750 INCHES NOMINAL |
| FLUKE LENGTH FROM STOCK CENTERLINE TO TIP | 19.000 INCHES NOMINAL |
| SHANK LENGTH FROM CROWN FLAT BASE TO SHACKLE PIN HOLE CENTERLINE | 34.375 INCHES NOMINAL |
| SPECIAL FEATURES | 7/16IN. GALVANIZED SHACKLE SIZE |
| III END ITEM IDENTIFICATION | LAUNCH,HYDROG |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ANCHOR |
Restrictions/Controls & Freight Information | NSN 2040-01-455-6948
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 024510 | BOAT ANCHOR I/S |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2040-01-455-6948
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
