NSN 2040-00-278-2149 00-278-2149, 002782149
Product Details | FLUKED MARINE ANCHOR
2040-00-278-2149 An assembly with one or two fixed or pivoted hooks or flukes at its lower end that is attached to a ship or other floating vessel by a cable or a chain, and that, being cast overboard, lays hold of the bottom material and thus holds the ship or other floating vessel in a particular location.
Part Alternates: 2040-00-278-2149, 00-278-2149, 2040002782149, 002782149
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 01 JAN 1963 | 00-278-2149 | 04944 ( ANCHOR, MARINE, FLUKED ) |
Drawings & Photos | NSN 2040-00-278-2149
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2040-00-278-2149
Related Products | NSN 2040-00-278-2149
Technical Data | NSN 2040-00-278-2149
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINTED |
| WEIGHT | 100.000 POUNDS NOMINAL |
| FLUKE DESIGN | FIXED |
| STOCK DESIGN | LOOSE |
| CONSTRUCTION METHOD AND LOCATION | FABRICATED OVERALL |
| SHACKLE | NOT INCLUDED |
| FLUKE HOLE | NOT INCLUDED |
| BALANCING BAND | NOT INCLUDED |

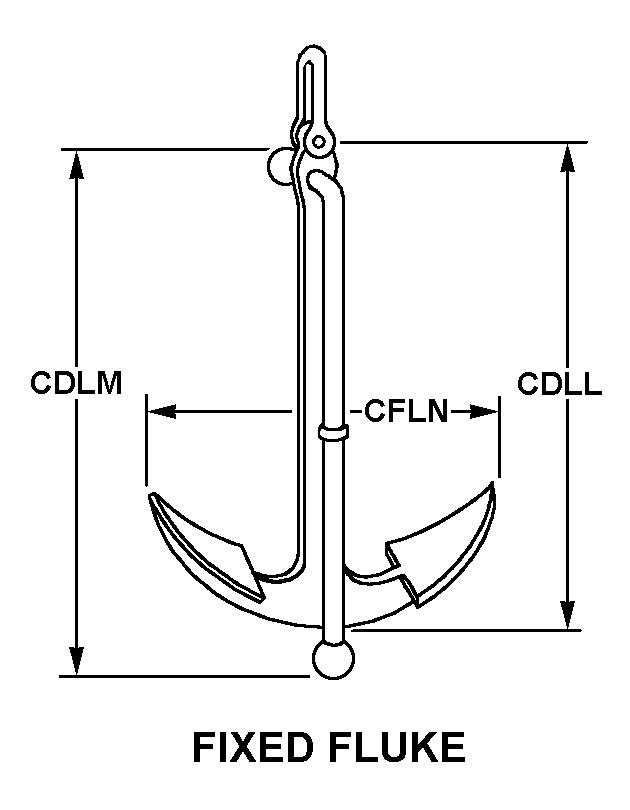

| STYLE DESIGNATOR | 1 FIXED FLUKE |
| SHANK LENGTH FROM CROWN TO CENTERLINE OF SHACKLE PIN HOLE | 48.000 INCHES NOMINAL |
| STOCK OVERALL LENGTH | 45.000 INCHES NOMINAL |
| BILL TO BILL DISTANCE ACROSS ARMS | 27.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2040-00-278-2149
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 024510 | BOAT ANCHOR I/S |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2040-00-278-2149
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | 3 | Engineer Materiel19; 20; 22; 24; 30; 32; 34 except 3470; 36; 37; 38; 41; 42 except 4210; 43; 45; 46; 47; 48; 4930; 54 except 5445; 56; 62; 66 except 6625, 6650, 6660, 6665; 67; 68 |
| Echelon Management Code | 6 | ICP/DSSCs Weapon system-oriented consumable items assigned to another Service/Agency for integrated materiel management which are managed by the ICP on a complex basis and which have not been decontrolled by the Integrated Materiel Manager. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
