NSN 2040-00-275-7776 S2602860337, S2602-860337, 00-275-7776
Product Details | FLUKED MARINE ANCHOR
2040-00-275-7776 An assembly with one or two fixed or pivoted hooks or flukes at its lower end that is attached to a ship or other floating vessel by a cable or a chain, and that, being cast overboard, lays hold of the bottom material and thus holds the ship or other floating vessel in a particular location.
Part Alternates: S2602860337, S2602-860337, 2040-00-275-7776, 00-275-7776, 2040002757776, 002757776
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 01 JAN 1963 | 00-275-7776 | 04944 ( ANCHOR, MARINE, FLUKED ) |

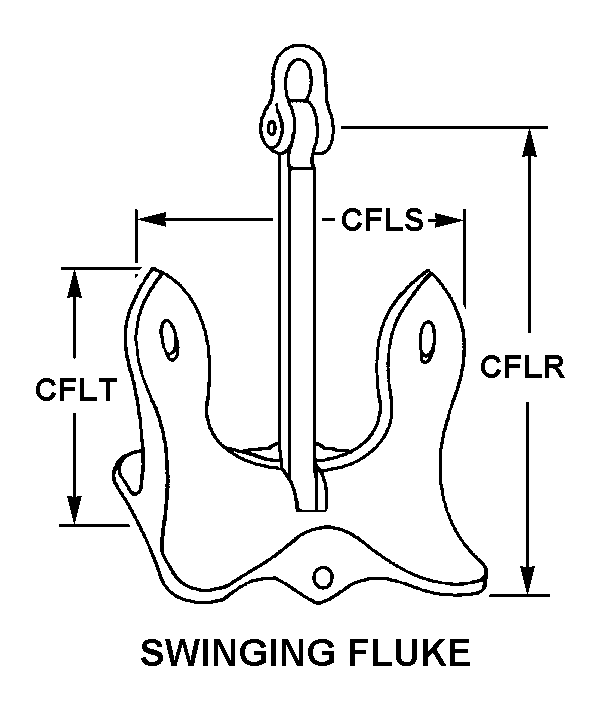

Drawings & Photos | NSN 2040-00-275-7776
Cross Reference | NSN 2040-00-275-7776
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S2602-860337 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2040-00-275-7776
Related Products | NSN 2040-00-275-7776
Technical Data | NSN 2040-00-275-7776
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINTED |
| WEIGHT | 4000.000 POUNDS NOMINAL |
| FLUKE DESIGN | SWINGING |
| CONSTRUCTION METHOD AND LOCATION | FABRICATED OVERALL |
| SHACKLE | INCLUDED |
| FLUKE HOLE | INCLUDED |
| BALANCING BAND | NOT INCLUDED |
| STYLE DESIGNATOR | 3 SWINGING FLUKE |
| SHANK LENGTH FROM CROWN FLAT BASE TO SHACKLE PIN HOLE CENTERLINE | 67.800 INCHES NOMINAL |
| OVERALL WIDTH ACROSS FLUKES | 59.000 INCHES NOMINAL |
| FLUKE LENGTH FROM CROWN FLAT BASE TO TIP | 48.200 INCHES NOMINAL |
| SPECIAL FEATURES | MARKED U S |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY WEIGHT,SHANK LENGTH FROM CROWN FLAT BASE TO SHACKLE PIN HOLE CENTERLINE,OVERALL WIDTH ACROSS FLUKES,FLUKE LENGTH FROM CROWN FLAT BASE TO TIP |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | S2602-860337 |
Restrictions/Controls & Freight Information | NSN 2040-00-275-7776
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104040 | ANCHORS I/S NOI |
| Less than car load rating | R | 65 |
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2040-00-275-7776
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | W | Line of Communication/Base Support Systems |
| Weapons Systems/End Item or Homogeneous Group | WA | Port Support and Watercraft Equipment |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | If condemned or uneconomically repairable, then dispose at Intermediate level. |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
