NSN 2010-01-076-1659 3262158, 01-076-1659, 010761659
Product Details | MARINE PROPELLER
2010-01-076-1659 A propeller with two or more radial blades, designed to rotate and provide thrust for waterborne vessel or self-propelled underwater devices. It may be of solid or built-up construction; controllable, adjustable or fixed pitch design.
Part Alternates: 3262158, 2010-01-076-1659, 01-076-1659, 2010010761659, 010761659
Ship and Marine Equipment | Ship and Boat Propulsion Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 02 MAY 1979 | 01-076-1659 | 30771 ( PROPELLER, MARINE ) |
Drawings & Photos | NSN 2010-01-076-1659
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2010-01-076-1659
Technical Data | NSN 2010-01-076-1659
| Characteristic | Specifications |
|---|---|
| PROPELLER TYPE | FIXED PITCH |
| ROTATION DIRECTION | LEFT-HAND |
| BLADE QUANTITY | 5 |
| BLADE PITCH TYPE | VARIABLE |

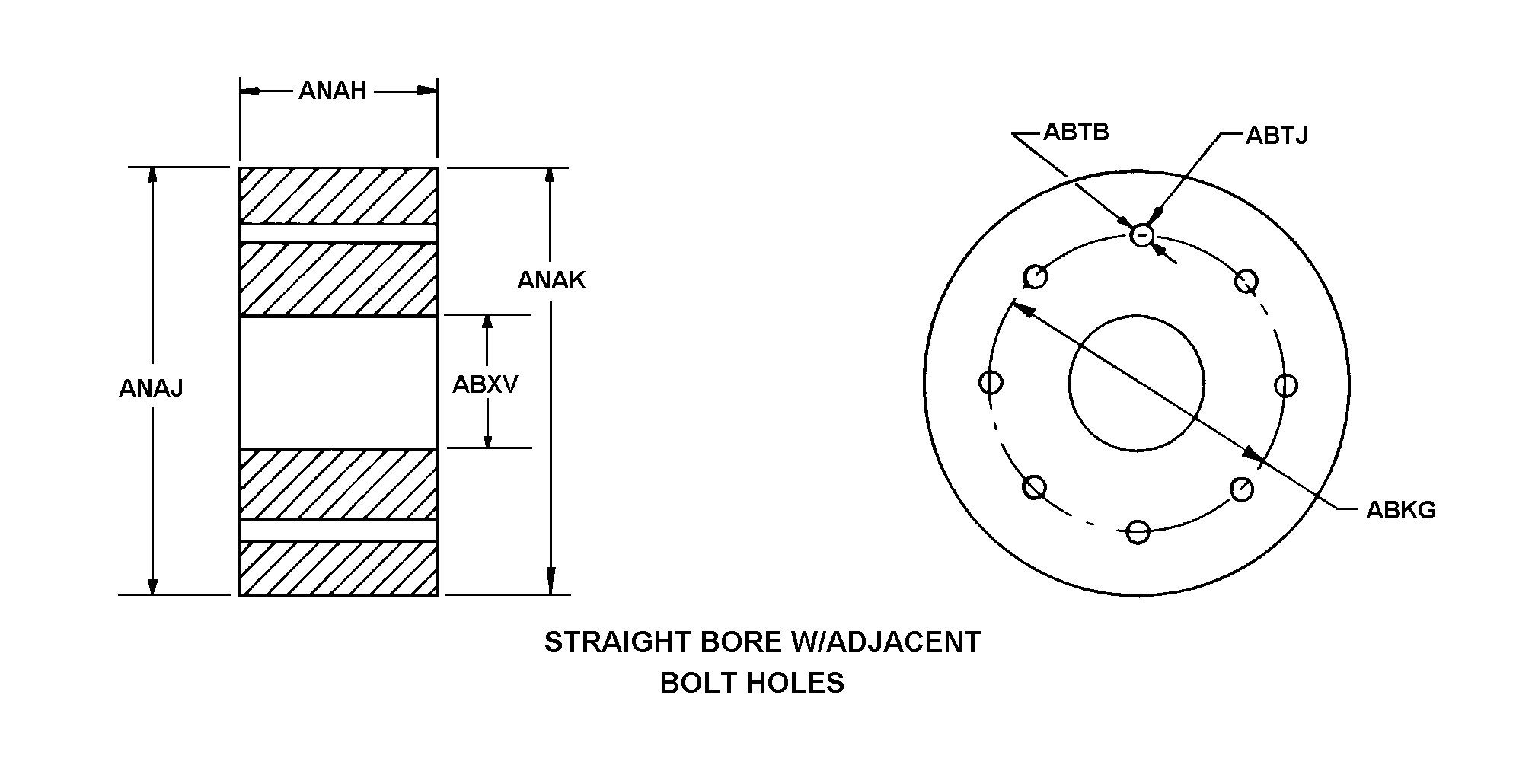

| HUB SHAFT ACCOMMODATION STYLE | 5 STRAIGHT BORE W/ADJACENT BOLT HOLES |
| BORE DIAMETER | 1.250 INCHES NOMINAL |
| HUB OVERALL LENGTH | 2.612 INCHES NOMINAL |
| HUB FORWARD FACE DIAMETER | 2.000 INCHES NOMINAL |
| HUB AFT FACE DIAMETER | 2.625 INCHES NOMINAL |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 3262158 |
Restrictions/Controls & Freight Information | NSN 2010-01-076-1659
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127260 | PROPELLERS OR PROPELLER WHEELS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 810 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2010-01-076-1659
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
