NSN 2010-00-193-0392 AG0R12132034345282, AG0R12-13-203-4345282, PURORD45258
Product Details | MARINE PROPELLER
2010-00-193-0392 A propeller with two or more radial blades, designed to rotate and provide thrust for waterborne vessel or self-propelled underwater devices. It may be of solid or built-up construction; controllable, adjustable or fixed pitch design.
Part Alternates: AG0R12132034345282, AG0R12-13-203-4345282, PURORD45258, 2010-00-193-0392, 00-193-0392, 2010001930392, 001930392
Ship and Marine Equipment | Ship and Boat Propulsion Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 16 MAR 1970 | 00-193-0392 | 30771 ( PROPELLER, MARINE ) |
Drawings & Photos | NSN 2010-00-193-0392
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2010-00-193-0392
Related Products | NSN 2010-00-193-0392
Technical Data | NSN 2010-00-193-0392
| Characteristic | Specifications |
|---|---|
| PROPELLER TYPE | FIXED PITCH |
| ROTATION DIRECTION | RIGHT-HAND |
| SPAN MAXIMUM DIAMETER | 7.917 FEET |
| BLADE QUANTITY | 5 |
| DESIGN PITCH | 7.172 FEET |
| BLADE PITCH TYPE | CONSTANT |
| MATERIAL AND LOCATION | BRONZE MANGANESE, ASTM B147, ALLOY 8A OVERALL |

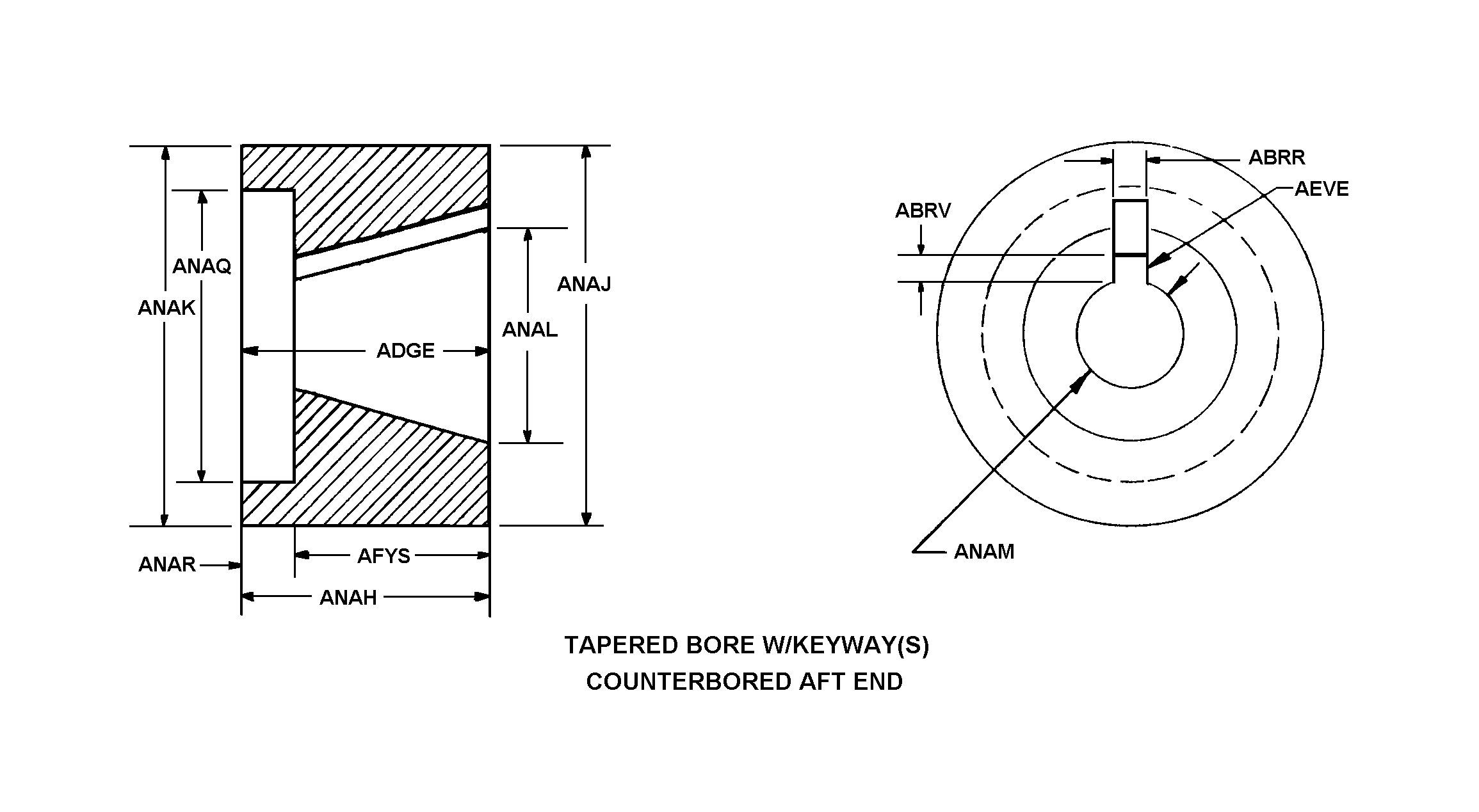

| HUB SHAFT ACCOMMODATION STYLE | 9 TAPERED BORE W/KEYWAY COUNTERBORED AFT END |
| KEYWAY WIDTH | 1.750 INCHES NOMINAL |
| KEYWAY DEPTH | 0.500 INCHES NOMINAL |
| BORE LENGTH | 22.000 INCHES NOMINAL |
| KEYWAY LENGTH | 22.000 INCHES NOMINAL |
| HUB OVERALL LENGTH | 22.000 INCHES NOMINAL |
| HUB FORWARD FACE DIAMETER | 22.000 INCHES NOMINAL |
| HUB AFT FACE DIAMETER | 17.000 INCHES NOMINAL |
| TAPER BORE MAJOR DIAMETER | 8.000 INCHES NOMINAL |
| TAPER BORE MINOR DIAMETER | 6.210 INCHES NOMINAL |
| AFT COUNTERBORE DIAMETER | 9.156 INCHES NOMINAL |
| AFT COUNTERBORE DEPTH | 1.000 INCHES NOMINAL |
| KEYWAY QUANTITY | 1 |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | AG0R12-13-203-4345282 |
Restrictions/Controls & Freight Information | NSN 2010-00-193-0392
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127260 | PROPELLERS OR PROPELLER WHEELS |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 810 | unknown |
| Originating Activity Code | HW | Military Sealift Command Washington, DC 20398-5100 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2010-00-193-0392
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | P | RESTRICTED REQUISITION - SECURITY ASSISTANCE PROGRAM (SAP) 1. Indicates item is stocked or acquired only for SAP (replaces Military Assistance Program (MAP)) requirements, or 2. Indicates item is nonstocked and materiel is ordered from the contractor for shipment directly to the foreign government. 3. Base, post, camp, or station will not requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
