NSN 2010-00-135-9387 CVA672032482649REVA, CVA67-203-2482649REVA, 00-135-9387
Product Details | MARINE PROPELLER
2010-00-135-9387 A propeller with two or more radial blades, designed to rotate and provide thrust for waterborne vessel or self-propelled underwater devices. It may be of solid or built-up construction; controllable, adjustable or fixed pitch design.
Part Alternates: CVA672032482649REVA, CVA67-203-2482649REVA, 2010-00-135-9387, 00-135-9387, 2010001359387, 001359387
Ship and Marine Equipment | Ship and Boat Propulsion Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 17 JAN 1969 | 00-135-9387 | 30771 ( PROPELLER, MARINE ) |
Drawings & Photos | NSN 2010-00-135-9387
Cross Reference | NSN 2010-00-135-9387
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CVA67-203-2482649REVA | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2010-00-135-9387
Related Products | NSN 2010-00-135-9387
Technical Data | NSN 2010-00-135-9387
| Characteristic | Specifications |
|---|---|
| PROPELLER TYPE | FIXED PITCH |
| ROTATION DIRECTION | RIGHT-HAND |
| SPAN MAXIMUM DIAMETER | 21.000 FEET |
| BLADE QUANTITY | 5 |
| DESIGN PITCH | 24.118 FEET |
| BLADE PITCH TYPE | VARIABLE |
| SECTIONAL RADIUS STATION | 0.7 |
| MATERIAL AND LOCATION | BRONZE MANGANESE OVERALL |
| SURFACE TREATMENT AND LOCATION | ANY ACCEPTABLE |
| SURFACE FINISH AND LOCATION | ANY ACCEPTABLE |

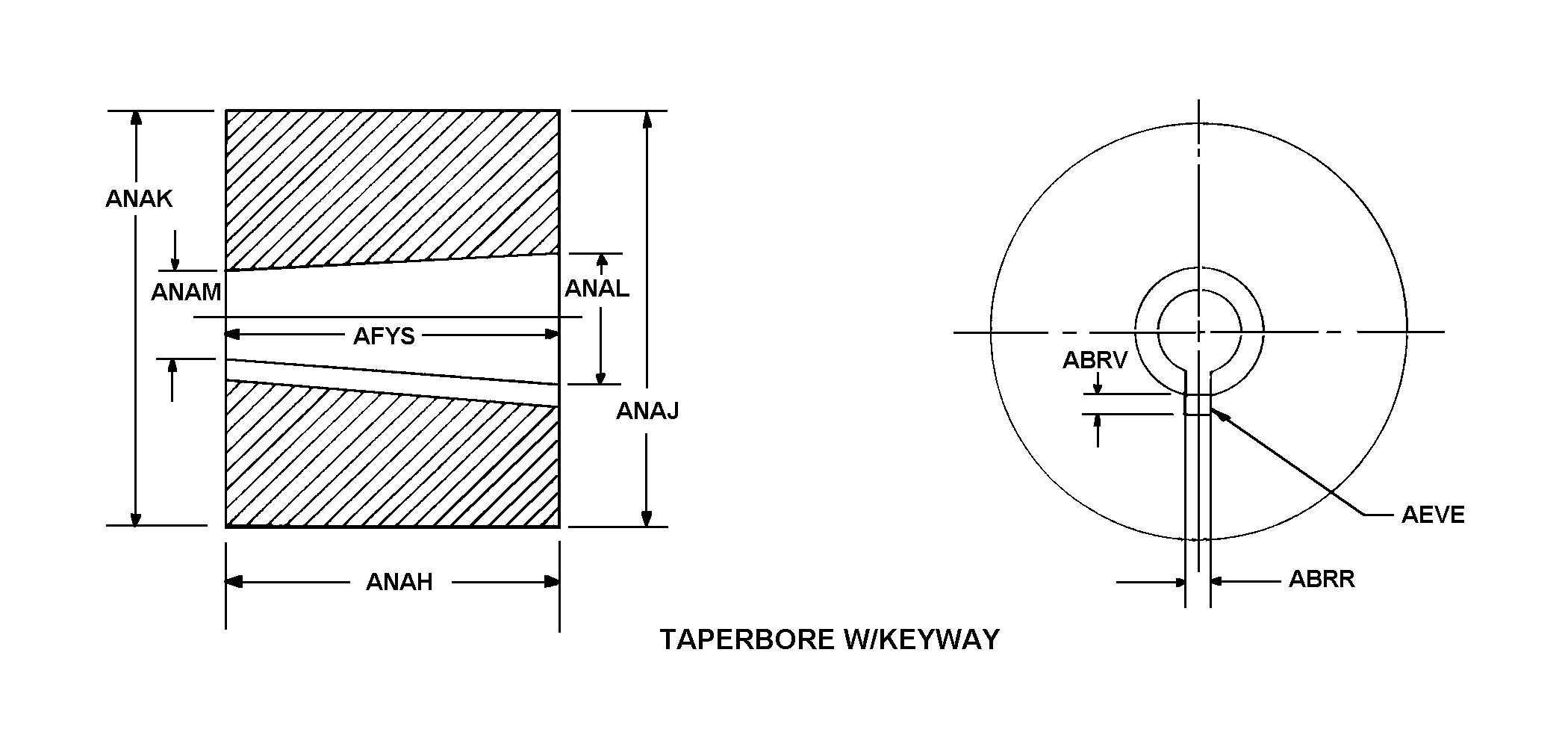

| HUB SHAFT ACCOMMODATION STYLE | 8 TAPERBORE W/KEYWAY |
| KEYWAY WIDTH | 5.000 INCHES NOMINAL |
| KEYWAY DEPTH | 1.895 INCHES MINIMUM AND 1.954 INCHES MAXIMUM |
| KEYWAY LENGTH | 53.375 INCHES NOMINAL |
| HUB OVERALL LENGTH | 55.125 INCHES NOMINAL |
| HUB FORWARD FACE DIAMETER | 45.375 INCHES MINIMUM AND 46.000 INCHES MAXIMUM |
| HUB AFT FACE DIAMETER | 41.000 INCHES NOMINAL |
| TAPER BORE MAJOR DIAMETER | 28.250 INCHES NOMINAL |
| TAPER BORE MINOR DIAMETER | 21.350 INCHES NOMINAL |
| KEYWAY QUANTITY | 2 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY RIGHT-HAND ROTATION |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | CVA67-203-2482649REVA |
Restrictions/Controls & Freight Information | NSN 2010-00-135-9387
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127260 | PROPELLERS OR PROPELLER WHEELS |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 810 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2010-00-135-9387
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 2S | Major shipboard hull, mechanical, and electrical equipment Naval Sea Systems Command |
| Special Material ID | P2 | Propulsion |
| Issue Repair, or Requisition | XR | Submit/refer requisitions to NAVSEA. Maintain records by serial number (NAVSEAINST 4440.7 applies). |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
