NSN 1730-01-503-4171 17G1304781, 17G130478-1, 01-503-4171
Product Details | AIRCRAFT LANDING GEAR LIFT TRUCK
1730-01-503-4171 A hand-propelled wheeled vehicle with either a mechanical or hydraulic lifting device for installing, removing and transporting aircraft landing gear.
Part Alternates: 17G1304781, 17G130478-1, 1730-01-503-4171, 01-503-4171, 1730015034171, 015034171
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 16 DEC 2002 | 01-503-4171 | 11194 ( TRUCK, LIFT, AIRCRAFT LANDING GEAR ) |

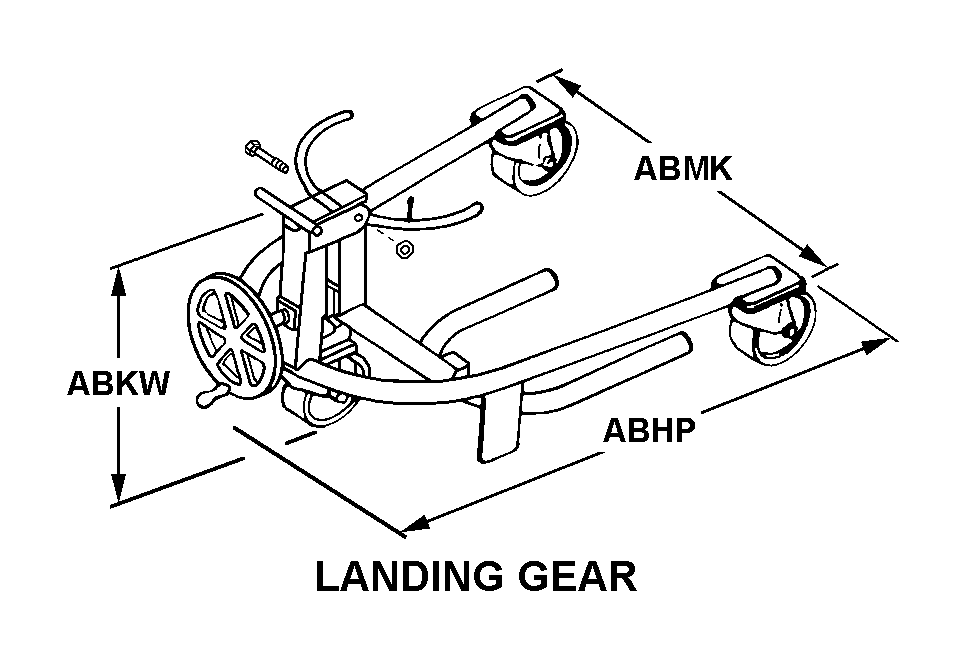

Drawings & Photos | NSN 1730-01-503-4171
Cross Reference | NSN 1730-01-503-4171
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17G130478-1 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-01-503-4171
Related Products | NSN 1730-01-503-4171
Technical Data | NSN 1730-01-503-4171
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 25 LANDING GEAR |
| OVERALL LENGTH | 62.000 INCHES NOMINAL |
| OVERALL HEIGHT | 58.000 INCHES NOMINAL |
| OVERALL WIDTH | 40.000 INCHES NOMINAL |
| MAXIMUM LOAD RATING | 400.000 POUNDS |
| FORK/PLATFORM MAXIMUM FREE LIFT HEIGHT | 36.000 INCHES |
| LIFT MECHANISM TYPE | HYDRAULIC |
| WHEEL TYPE AND QUANTITY | 4 DUAL SOLID ALL WHEELS |
| SPECIAL FEATURES | SERD TITLE HOIST-MLG SHOCK STRUT ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 1730-01-503-4171
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157520 | PLATFORMS AIRCRAFT CARGO SHIPNG NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-01-503-4171
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Budget Code | Q | 1057X3010:Aircraft Weapon Systems and Peculiar Support Equipment |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
