NSN 1730-01-491-1557 1730PL0179933 , 345322270009, 8141050-60
Product Details | AERIAL STORES LIFT TRUCK
1730-01-491-1557 A self-propelled, wheeled vehicle equipped with a power driven lifting boom. The boom is designed to be used with various support cradles and adapters. Primarily designed for loading munitions, fuel tanks, pylons, and special weapons onto military aircraft.
Part Alternates: 1730PL0179933 , 345322270009, 8141050-60, 8141050-70 , 1730-01-491-1557, 01-491-1557, 1730014911557, 014911557, 814105070, 814105060
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 15 OCT 2001 | 01-491-1557 | 46467 ( TRUCK, LIFT, AERIAL STORES ) |

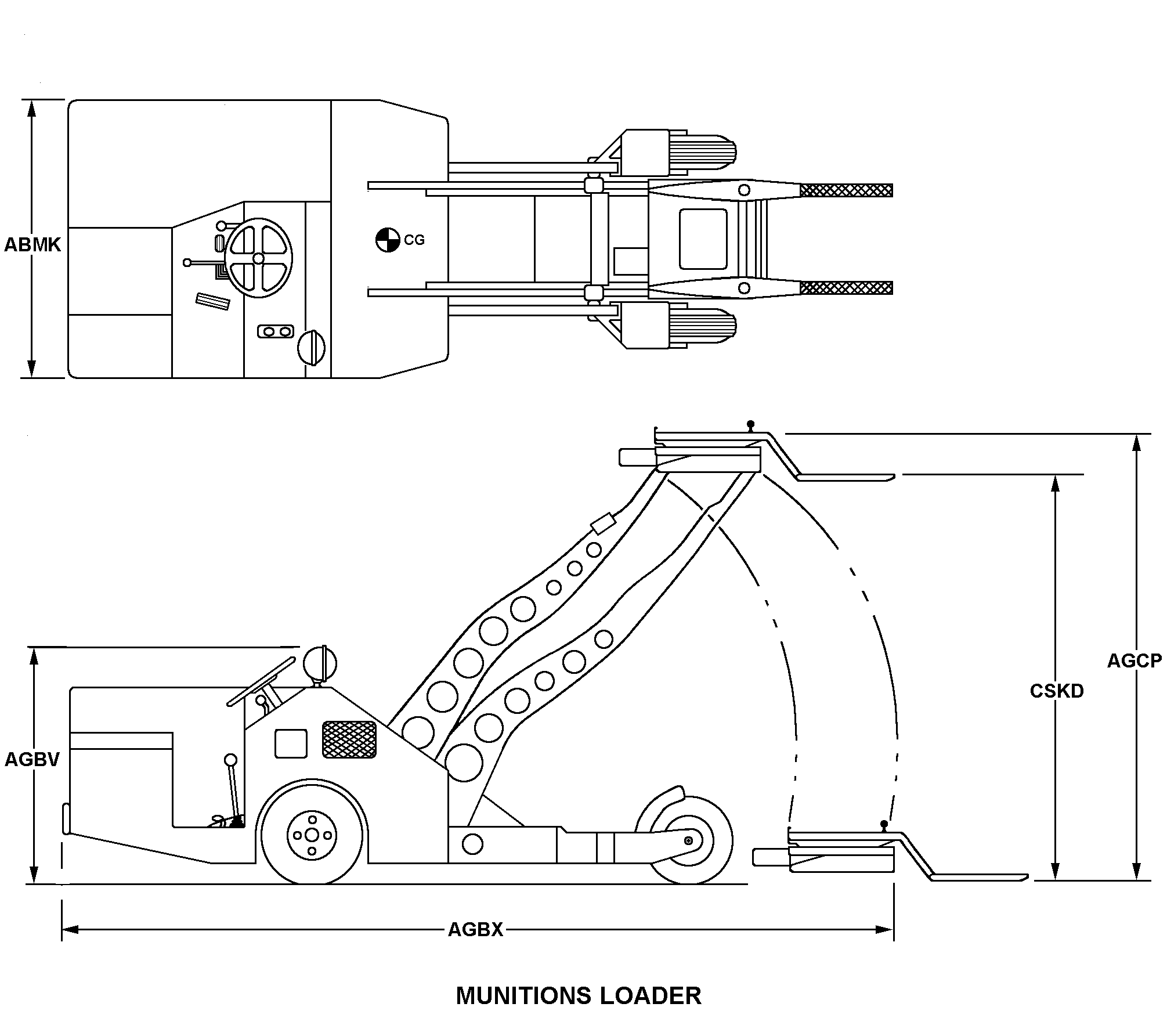

Drawings & Photos | NSN 1730-01-491-1557
Demand History | NSN 1730-01-491-1557
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1730-01-491-1557 | 2024-01-15 | 1 | Taiwan |
| 1730-01-491-1557 | 2023-11-334 | 1 | United States |
| 1730-01-491-1557 | 2023-09-265 | 1 | United States |
| 1730-01-491-1557 | 2023-07-202 | 2 | ES |
| 1730-01-491-1557 | 2023-03-79 | 1 | BR |
| 1730-01-491-1557 | 2020-12-343 | 2 | US |
| 1730-01-491-1557 | 2020-12-342 | 1 | MY |
| 1730-01-491-1557 | 2019-11-324 | 2 | ID |
| 1730-01-491-1557 | 2019-09-248 | 2 | ID |
| 1730-01-491-1557 | 2019-04-91 | 4 | MANUAL |
| 8141050-60 | 2019-04-91 | 4 | US |
| 814105070 | 2018-11-317 | 1 | United States |
| 1730-01-491-1557 | 2017-10-299 | 1 | US |
| 1730-01-491-1557 | 2017-09-262 | 2 | ES |
| 1730-01-491-1557 | 2009-09-244 | 5 | US |
| 1730-01-491-1557 | 2008-09-246 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-01-491-1557
Related Products | NSN 1730-01-491-1557
Technical Data | NSN 1730-01-491-1557
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 28 MUNITIONS LOADER |
| OVERALL WIDTH | 52.250 INCHES NOMINAL |
| OVERALL HEIGHT WITH FORKS IN LOWEST POSITION | 42.000 INCHES NOMINAL |
| OVERALL LENGTH WITHOUT FORKS | 121.000 INCHES NOMINAL |
| OVERALL HEIGHT WITH PLATFORM IN HIGHEST POSITION | 78.000 INCHES NOMINAL |
| LIFT HEIGHT OF FORKS | 71.7500 INCHES MAXIMUM |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| VEHICULAR TURN RADIUS | 180.000 INCHES NOMINAL |
| MAXIMUM LOAD RATING | 3800.000 POUNDS |
| FORK/PLATFORM MAXIMUM FREE LIFT HEIGHT | 78.000 INCHES |
| LIFT MECHANISM TYPE | HYDRAULIC |
| LIFT ACTUATION METHOD | POWERED |
| WHEEL TYPE AND QUANTITY | 4 SINGLE PNEUMATIC ALL WHEELS |
| STEERING TYPE | CRABBING |
| TRANSMISSION TYPE | AUTOMATIC |
| PRIME MOVER MANUFACTURER CODE AND MODEL NUMBER | 66289-VH4D |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | U.L. TYPE G |
| III FUNCTIONAL DESCRIPTION | USED FOR LOADING MUNITIONS, FUEL TANKS PYLONS AND SPECIAL WEAPONS WEIGHING UP TO 3,000 LBS. ONTO MILITARY AIRCRAFT |
| III TYPE/MODEL DESIGNATION | MJ-1C |
| III RELATIONSHIP TO SIMILAR EQUIPMENT | SIMILAR TO 1730-01-123-7269 |
| III REFERENCE DATA AND LITERATURE | T.O. 35D3-2-25-4 |
| MANUFACTURERS CODE | 56529 |
| DESIGN CONTROL REFERENCE | 8141050-60 |
Restrictions/Controls & Freight Information | NSN 1730-01-491-1557
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 190225 | CARS,LIFT TRUCKS OR VEHICLES |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 891 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | B | Mixed hazardous materials - consolidated only as authorized by Coast Guard regulations, Title 49, CFR, use with T-2 or T-3 documents only |
Management | NSN 1730-01-491-1557
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Price Validation | V | The current standard price has been validated.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
