NSN 1730-01-189-4164 3C3461G01, 3C3461G02, 01-189-4164
Product Details | GROUND HANDLING EQUIPMENT CRADLE
1730-01-189-4164 A cradle designed to hold an aircraft component and used in conjunction with lift trucks, trailers and the like. It is generally used to transport aircraft components to/from the maintenance shops and to hold them during repair. Excludes items having a more specific name.
Part Alternates: 3C3461G01, 3C3461G02, 1730-01-189-4164, 01-189-4164, 1730011894164, 011894164
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 15 SEP 1984 | 01-189-4164 | 38666 ( CRADLE, GROUND HANDLING EQUIPMENT ) |

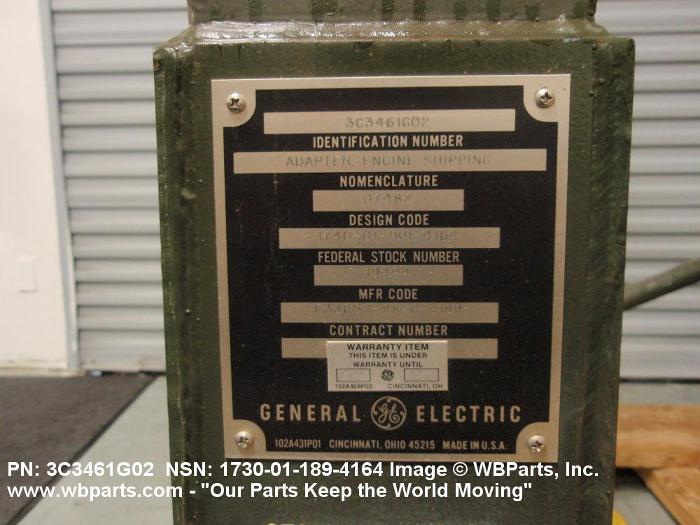

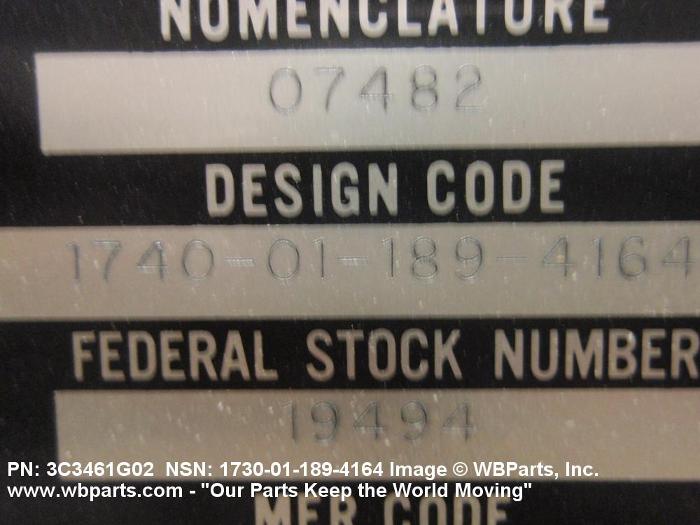

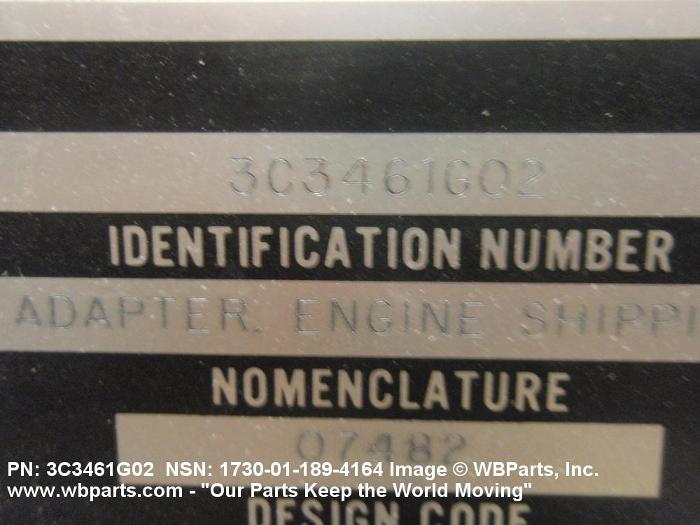

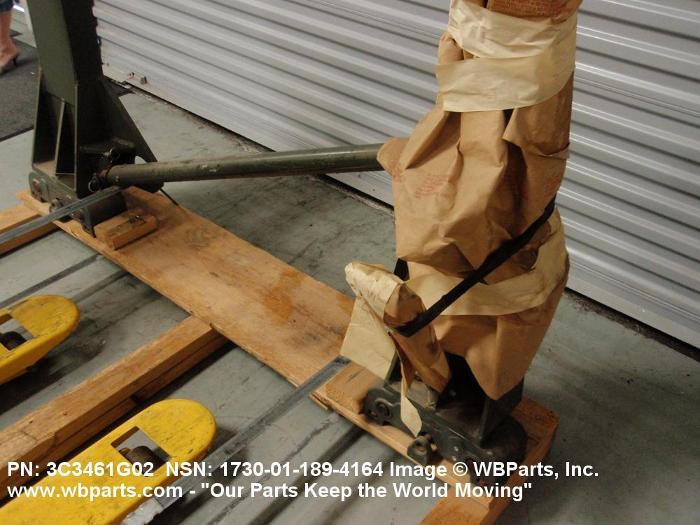

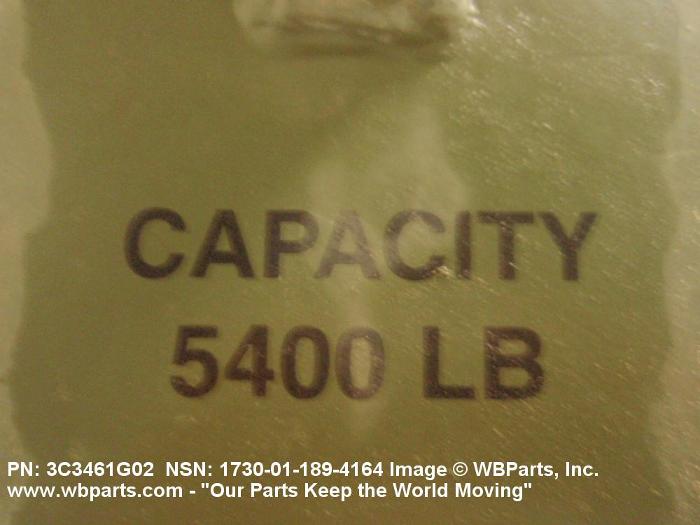

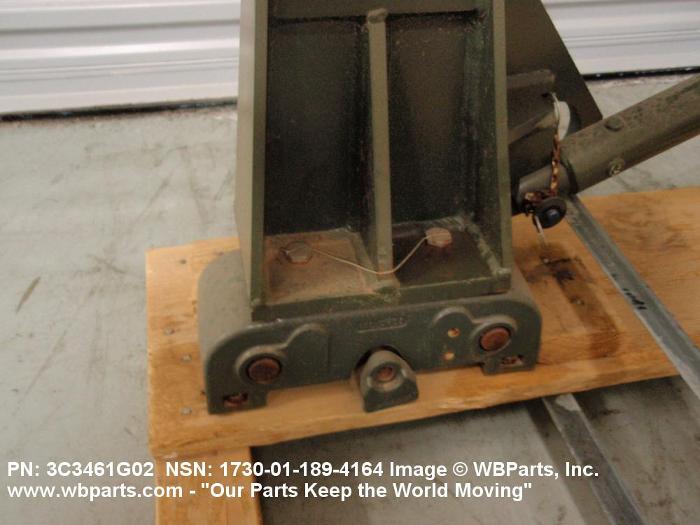

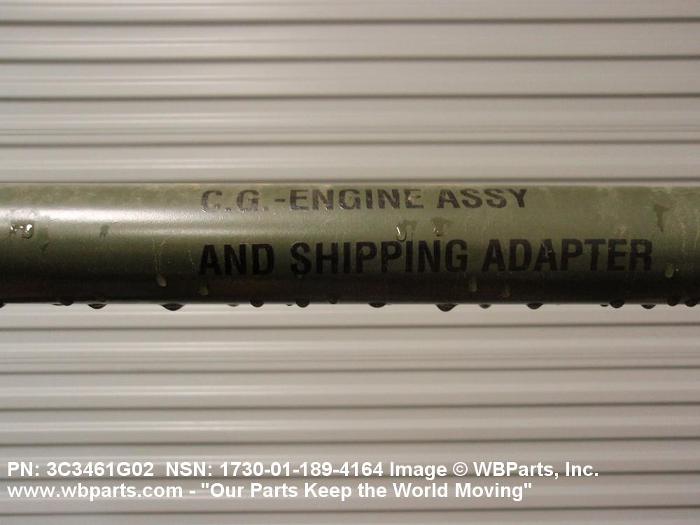

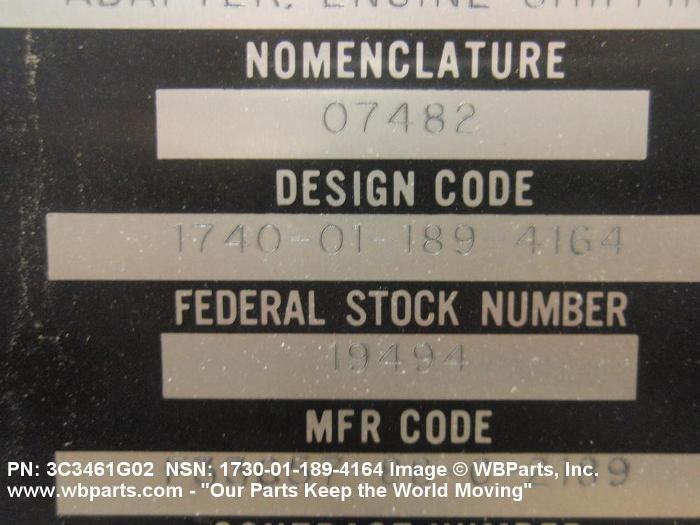

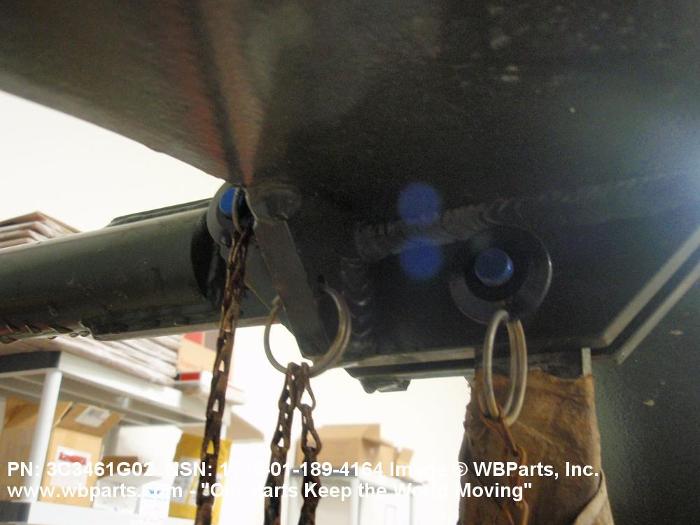

Drawings & Photos | NSN 1730-01-189-4164
Demand History | NSN 1730-01-189-4164
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1730-01-189-4164 | 2024-11-327 | 1 | AF |
| 3C3461G02 | 2024-11-324 | 1 | United Arab Emirates |
| 1730-01-189-4164 | 2024-11-320 | 1 | AF |
| 1730-01-189-4164 | 2024-11-318 | 4 | KR |
| 1730-01-189-4164 | 2022-01-29 | 3 | South Korea |
| 3C3461G02 | 2020-05-148 | 2 | United States |
| 1730-01-189-4164 | 2019-02-46 | 1 | United States |
| 1730-01-189-4164 | 2019-02-37 | 1 | United States |
| 1730-01-189-4164 | 2015-11-314 | 1 | United States |
| 3C3461G02 | 2011-03-83 | 1 | United States |
| 1730-01-189-4164 | 2009-05-149 | 1 | Canada |
| 3C3461G02 | 2007-10-283 | 1 | Italy |
| 3C3461G02 | 2006-10-299 | 16 | BE |
| 3C3461G02 | 2006-10-290 | 1 | BE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-01-189-4164
Related Products | NSN 1730-01-189-4164
Technical Data | NSN 1730-01-189-4164
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | WELDED |
| TRANSPORT METHOD | ATTACHMENT FOR TRAILER |
| MOBILE UNIT DESIGNATION | ALC300E DOLLY AND ALC31110 MAINTENCE STAND |
| OVERALL LENGTH | 60.000 INCHES NOMINAL |
| OVERALL WIDTH | 50.000 INCHES NOMINAL |
| OVERALL HEIGHT | 55.000 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | F110-GE-100 ACFT ENGINE |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 3C3461G02 |
Restrictions/Controls & Freight Information | NSN 1730-01-189-4164
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 178680 | STANDS/CRADLES BBL/DRUM SUB2 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-01-189-4164
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QS | TG:AIRCRAFT GROUND SERVICES EQUIPMENT |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 6R | Aeronautical ground support equipment (reparable or investment type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | XN | JET ENGINE(F110-GE-400) |
| Issue Repair, or Requisition | BS | Submit/refer requisitions to NAVICP PHIL. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
