NSN 1730-01-086-0392 HCQ0392, HCQ-0392, 932141B1230
Product Details | AIRCRAFT MOORING TIE DOWN
1730-01-086-0392 An item consisting of ropes, chains and/or cables, having suitable hooks and/or attaching parts and equipped with a tightening device. Designed to secure or restrain movement of aircraft.
Part Alternates: HCQ0392, HCQ-0392, 932141B1230, 93214-1-B-12-30, 93214B1230, 93214-B-12-30, 1730-01-086-0392, 01-086-0392, 1730010860392, 010860392
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 20 NOV 1979 | 01-086-0392 | 06917 ( TIE DOWN, AIRCRAFT MOORING ) |

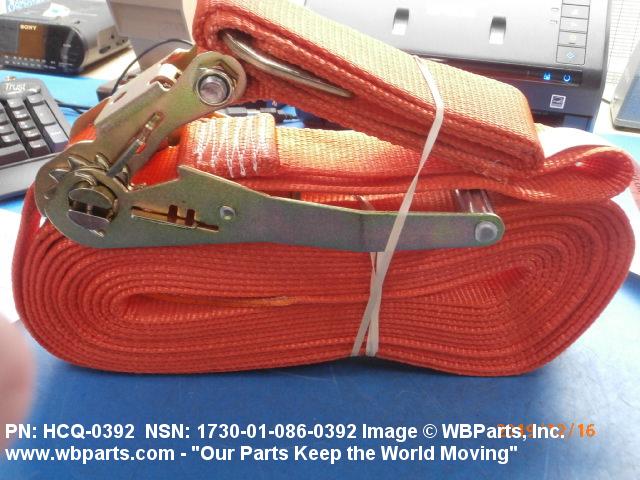

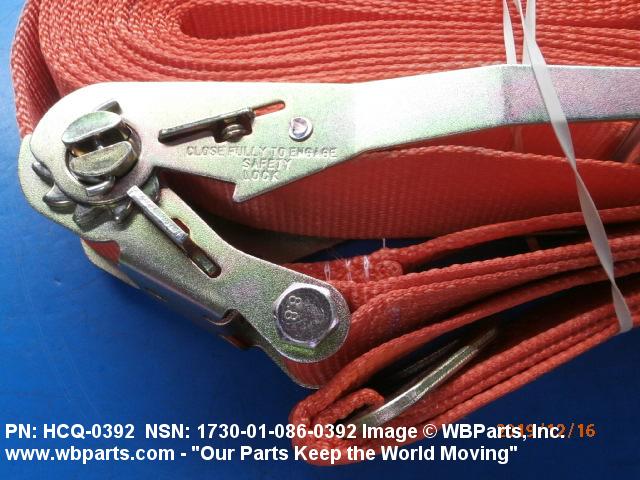

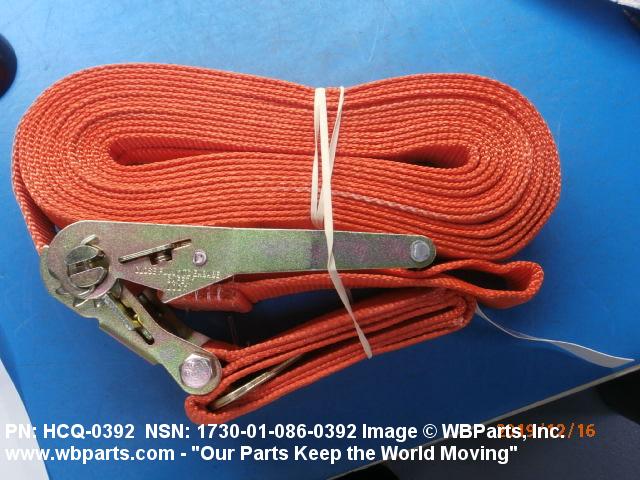

Drawings & Photos | NSN 1730-01-086-0392
Demand History | NSN 1730-01-086-0392
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1730-01-086-0392 | 2024-05-137 | 3 | Oman |
| 1730-01-086-0392 | 2023-11-327 | 3 | US |
| 1730-01-086-0392 | 2023-08-219 | 1 | United States |
| 1730-01-086-0392 | 2022-08-238 | 3 | United States |
| 1730-01-086-0392 | 2021-04-119 | 3 | US |
| 1730-01-086-0392 | 2021-01-27 | 1000 | US |
| 1730-01-086-0392 | 2020-04-104 | 80 | US |
| 1730-01-086-0392 | 2019-10-297 | 3 | United States |
| 1730-01-086-0392 | 2019-07-203 | 3 | United States |
| 1730-01-086-0392 | 2019-01-21 | 3 | United States |
| 1730-01-086-0392 | 2018-11-313 | 4 | US |
| 1730-01-086-0392 | 2018-07-193 | 4 | US |
| 1730-01-086-0392 | 2018-06-179 | 8 | US |
| 1730-01-086-0392 | 2018-06-178 | 8 | US |
| 1730-01-086-0392 | 2018-04-108 | 6 | US |
| 1730-01-086-0392 | 2018-04-108 | 2 | United States |
| HCQ0392 | 2017-10-297 | 1 | US |
| 1730-01-086-0392 | 2017-05-134 | 3 | US |
| 1730-01-086-0392 | 2017-05-130 | 3 | United States |
| 1730-01-086-0392 | 2016-09-245 | 5 | US |
| 1730-01-086-0392 | 2016-08-228 | 3 | DIBBS |
| 1730-01-086-0392 | 2014-08-223 | 3 | United States |
| 1730-01-086-0392 | 2014-06-177 | 3 | United States |
| 1730-01-086-0392 | 2012-08-234 | 4 | US |
| 1730-01-086-0392 | 2012-03-70 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-01-086-0392
Related Products | NSN 1730-01-086-0392
Technical Data | NSN 1730-01-086-0392
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | POLYAMIDE NYLON, MIL-W-4088 WEBBING AND STEEL RING |
| MATERIAL BURSTING STRENGTH | 10000.000 POUNDS |
| MATERIAL HARDNESS RATING | 40.0 ROCKWELL C NOMINAL |
| COMPONENT LENGTH | 30.000 FEET NOMINAL WEBBING |

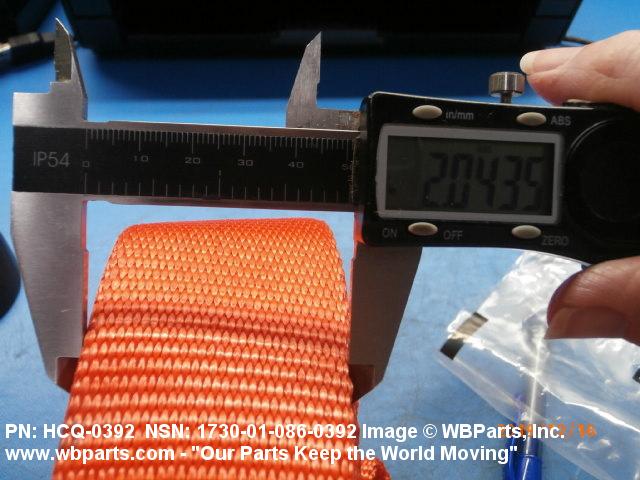

| COMPONENT WIDTH | 1.656 INCHES MINIMUM WEBBING AND 1.844 INCHES MAXIMUM WEBBING |
| TIGHTENING DEVICE | RATCHET BUCKLE ASSEMBLY |
| TIGHTENING DEVICE MANUFACTURER CODE | 96603 |
| TIGHTENING DEVICE MANUFACTURER PART NUMBER | 13196-5 |
| FURNISHED HARDWARE | 1 D-RING 96603 11365-2,1 RATCHET BUCKLE ASSY 96603 SP3377-1 |
| III END ITEM IDENTIFICATION | USED TO SECURE HELICOPTER TO SHIPS DECK ONBOARD 210 FT WMEC,378 FT WHEC,AND 270 FT WMEC COAST GUARD VESSELS |
| MANUFACTURERS CODE | 0WR28 |
| DESIGN CONTROL REFERENCE | HCQ-0392 |
Restrictions/Controls & Freight Information | NSN 1730-01-086-0392
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 1730-01-086-0392
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
