NSN 1730-01-013-6169 1476015501, 14-76015-501, 01-013-6169
Product Details | AIRCRAFT JACKING POINT ADAPTER
1730-01-013-6169 A device designed to provide accommodations for adapting a jack to an aircraft jacking point. It may have provisions for mooring, towing or hoisting.
Part Alternates: 1476015501, 14-76015-501, 1730-01-013-6169, 01-013-6169, 1730010136169, 010136169
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 07 DEC 1975 | 01-013-6169 | 06411 ( ADAPTER, AIRCRAFT JACKING POINT ) |

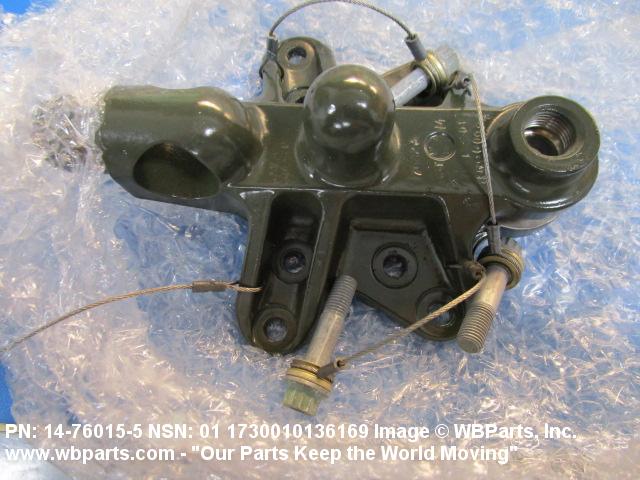

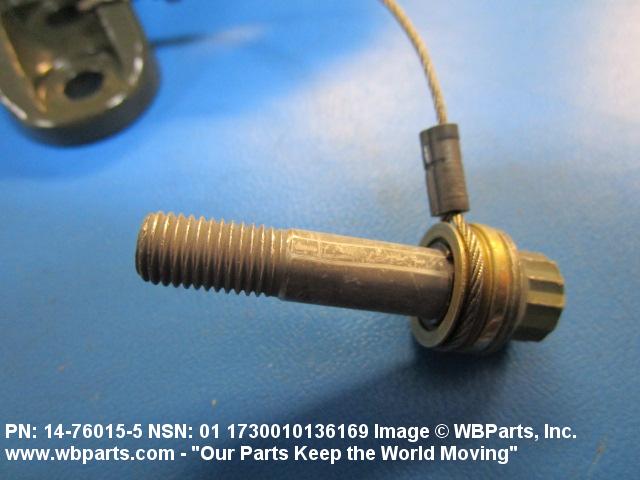

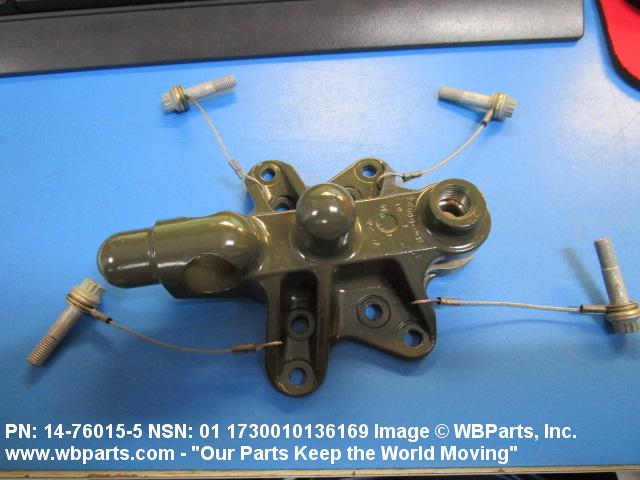

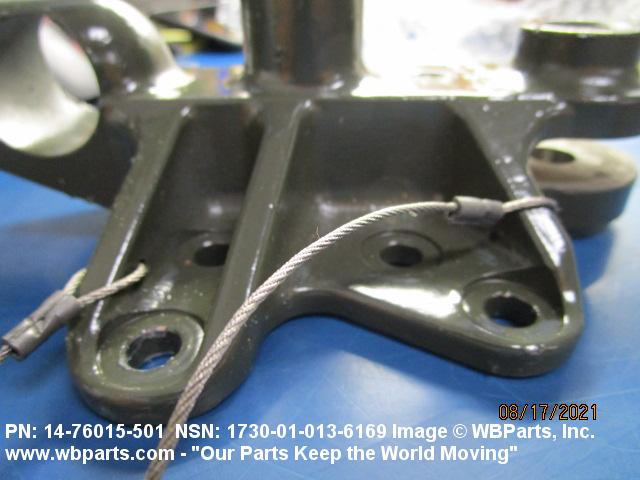

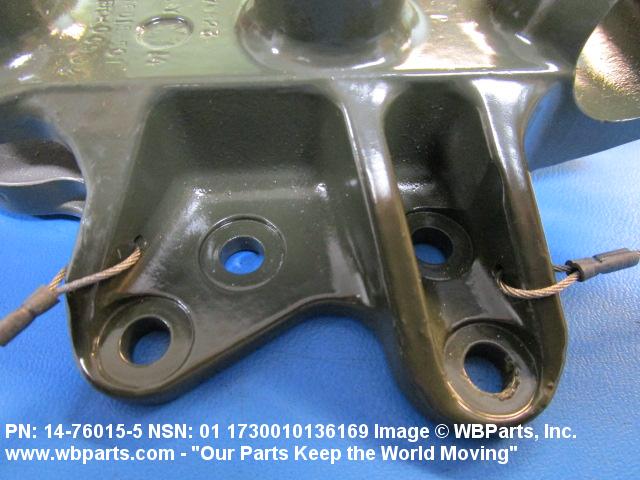

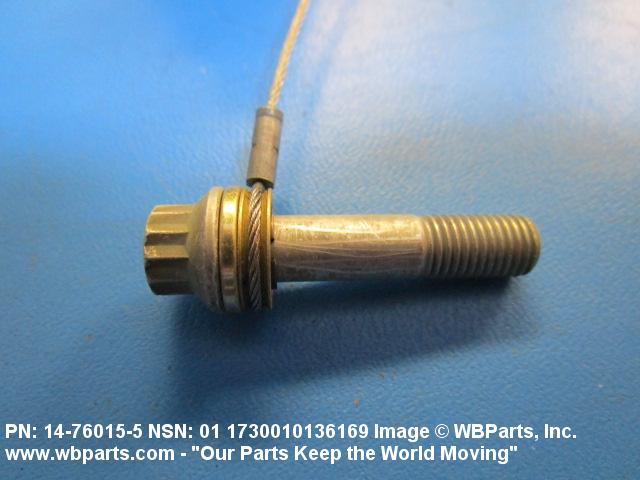

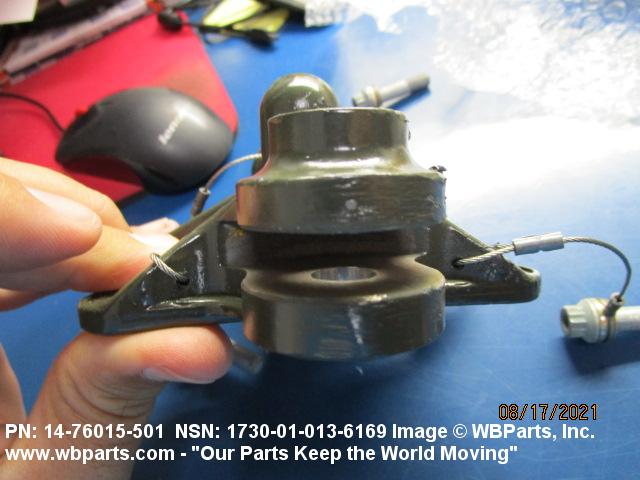

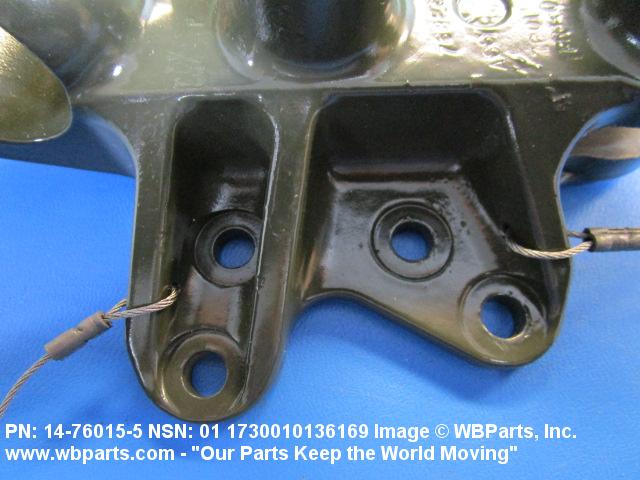

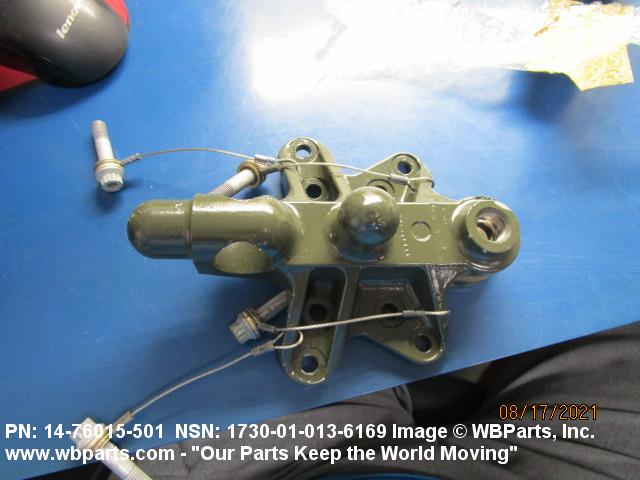

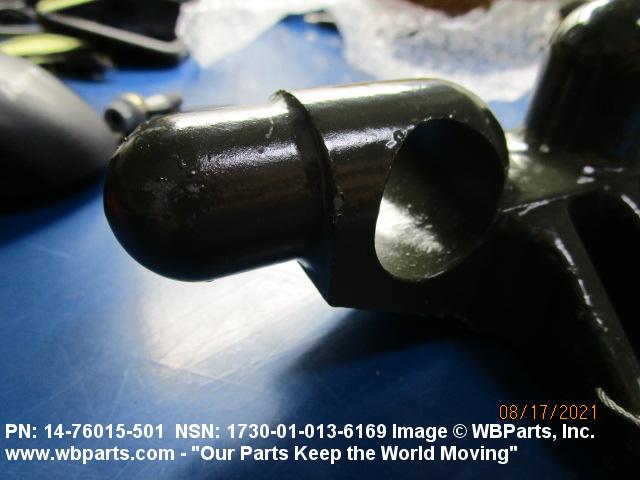

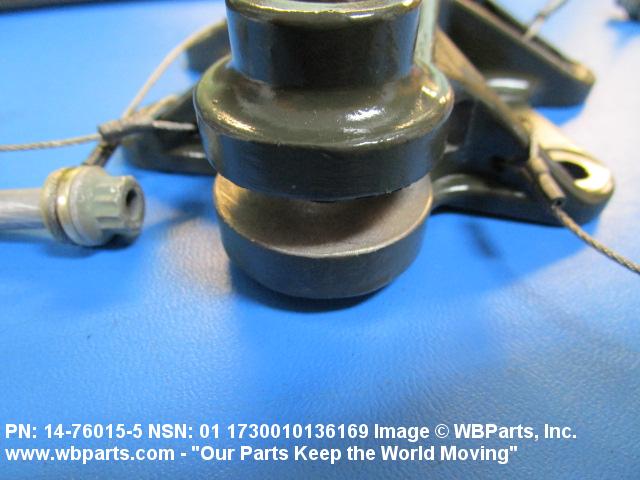

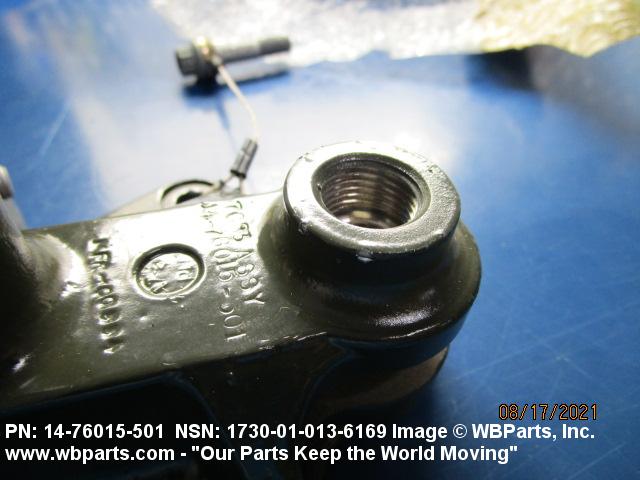

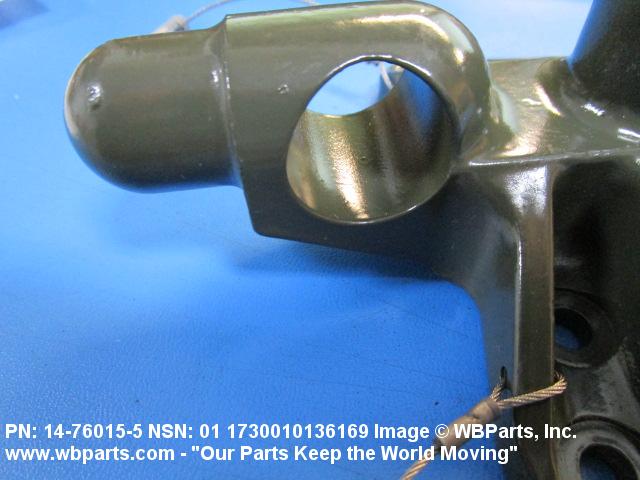

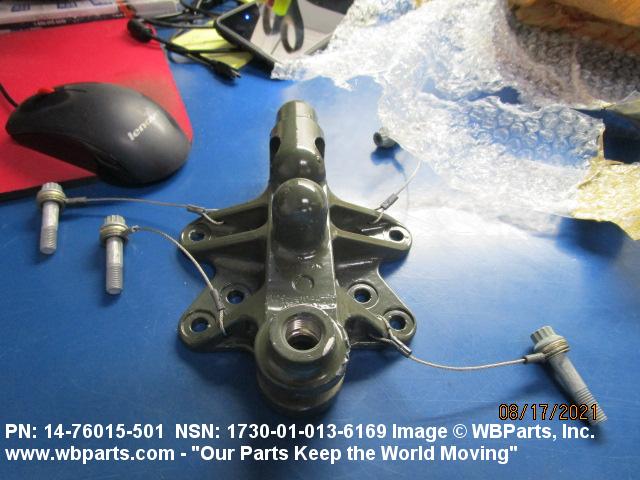

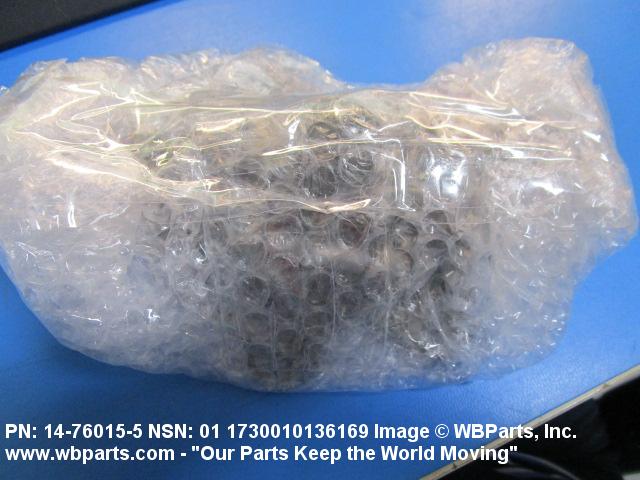

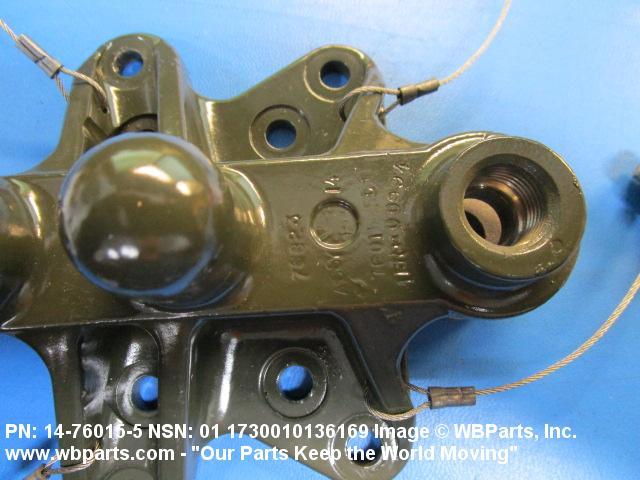

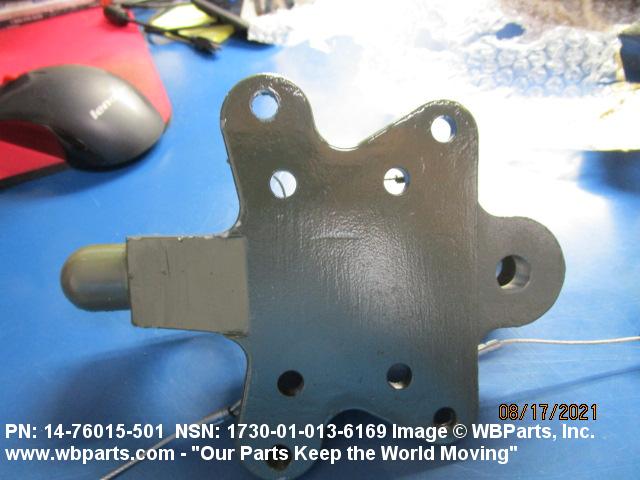

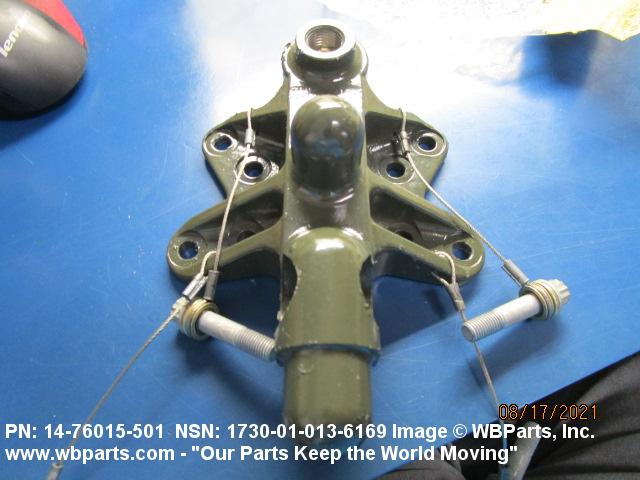

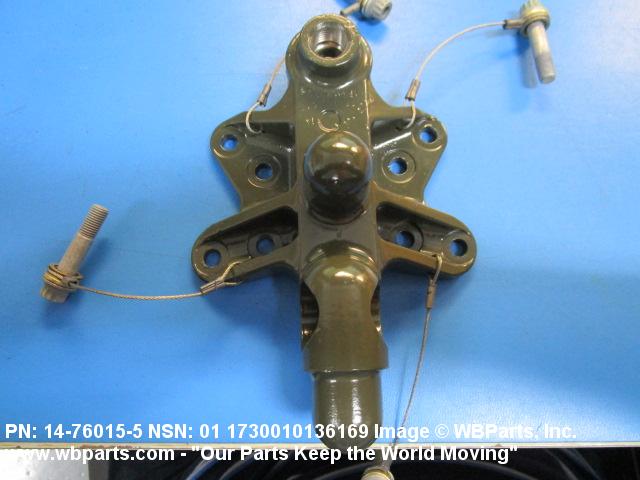

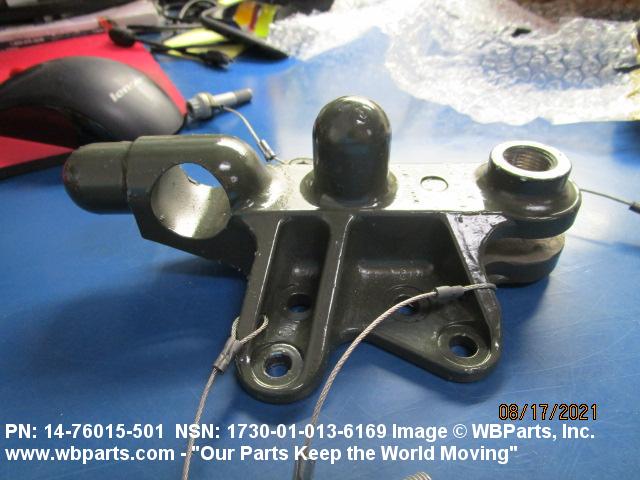

Drawings & Photos | NSN 1730-01-013-6169
Demand History | NSN 1730-01-013-6169
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1730-01-013-6169 | 2024-06-11 | 1 | US |
| 1476015501 | 2024-03-19 | 10 | US |
| 1730-01-013-6169 | 2023-03-14 | 4 | Taiwan |
| 1730-01-013-6169 | 2022-10-03 | 6 | SA |
| 1730-01-013-6169 | 2022-02-28 | 1 | United States |
| 1730-01-013-6169 | 2022-02-01 | 3 | United States |
| 1730-01-013-6169 | 2021-09-02 | 5 | United States |
| 1730-01-013-6169 | 2021-08-24 | 3 | United States |
| 1730-01-013-6169 | 2021-08-09 | 3 | United States |
| 1730-01-013-6169 | 2021-07-28 | 7 | US |
| 1730-01-013-6169 | 2021-06-03 | 6 | TH |
| 1730-01-013-6169 | 2020-09-25 | 24 | Thailand |
| 1730-01-013-6169 | 2020-09-02 | 6 | Thailand |
| 1476015501 | 2020-01-22 | 3 | US |
| 1476015501 | 2012-11-16 | 7 | Taiwan |
| 1476015501 | 2012-11-09 | 2 | Taiwan |
| 1476015501 | 2012-11-09 | 3 | Taiwan |
| 1476015501 | 2012-11-09 | 7 | Taiwan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-01-013-6169
Related Products | NSN 1730-01-013-6169
Technical Data | NSN 1730-01-013-6169
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| OVERALL WIDTH | 5.120 INCHES NOMINAL |
| OVERALL HEIGHT | 2.500 INCHES NOMINAL |
| USAGE DESIGN | AIRCRAFT MOORING |
| ATTACHMENT METHOD | BOLTED |
| MANUFACTURERS CODE | 76823 |
| DESIGN CONTROL REFERENCE | 14-76015-501 |
Restrictions/Controls & Freight Information | NSN 1730-01-013-6169
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157520 | PLATFORMS AIRCRAFT CARGO SHIPNG NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-01-013-6169
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | VF | FIGHTERAIRCRAFT(F5 E/F) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | W | Ground Support Equipment-End Items |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
