Product Details | TIMING PIN LOCK

1730-00-838-1871

Part Alternates: 53E1503081, 53E150308-1, 1730-00-838-1871, 00-838-1871, 1730008381871, 008381871

2540 | Aircraft Ground Servicing Equipment

Supply Group (FSG) NSN Assign. NIIN
25 09 DEC 1966 00-838-1871

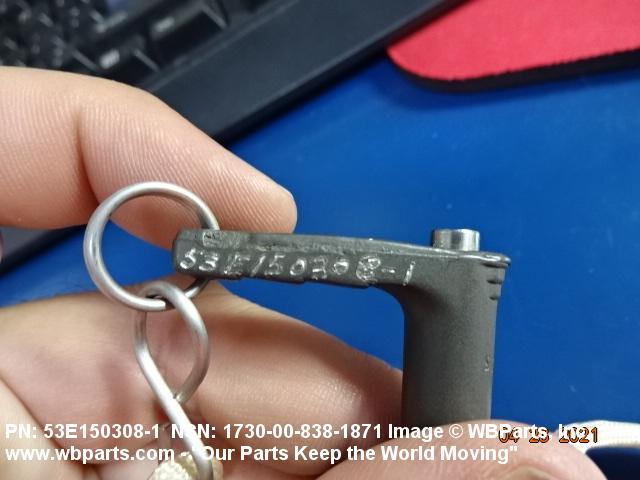

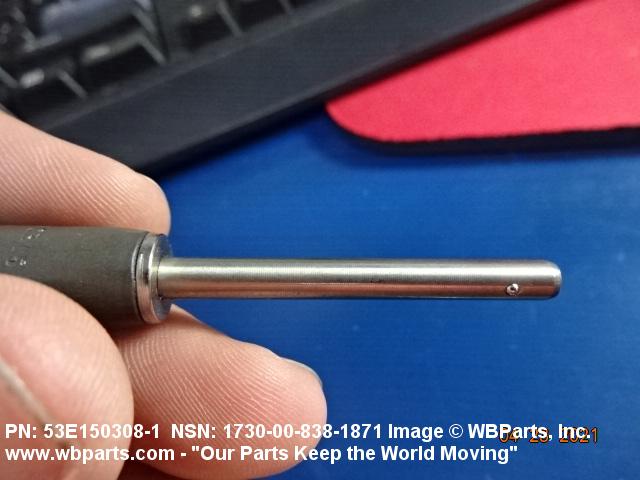

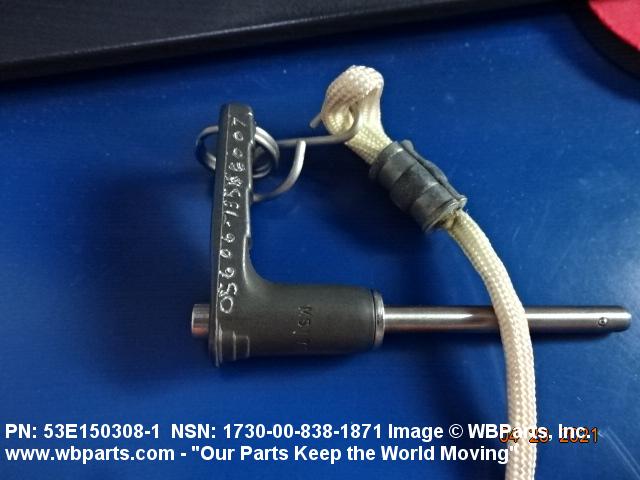

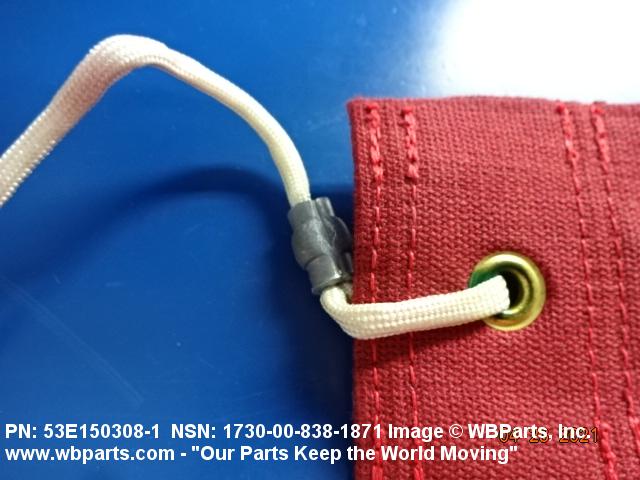

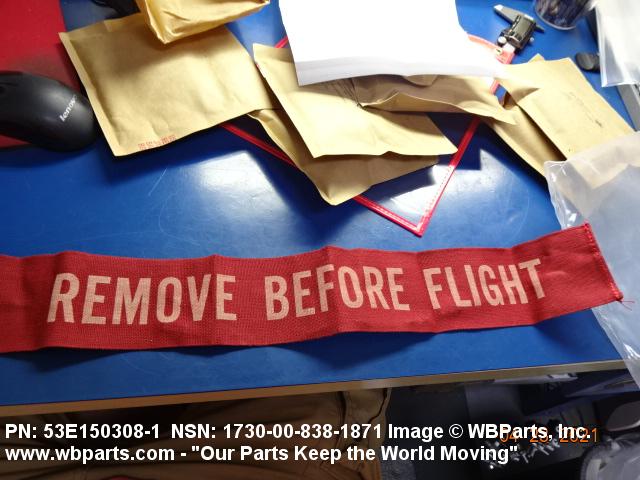

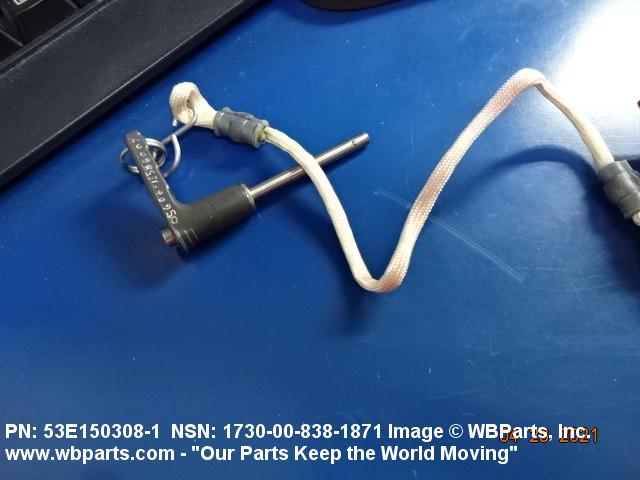

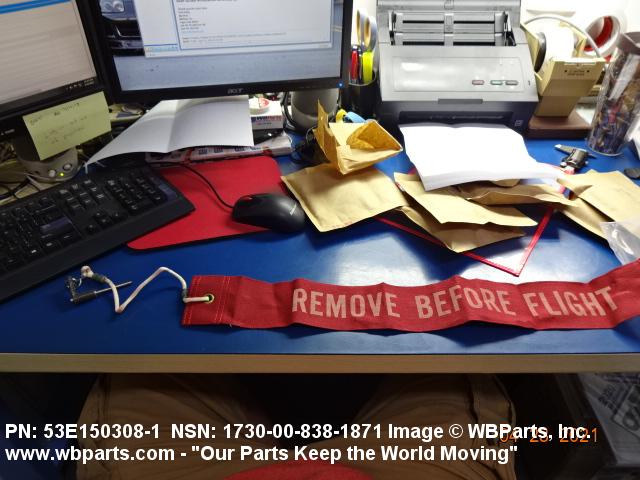

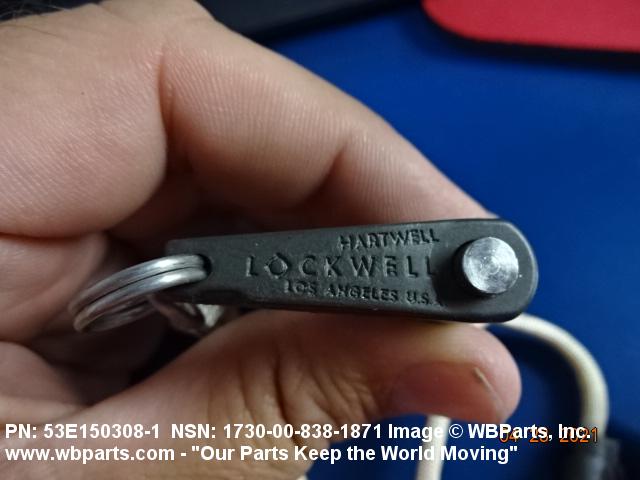

Drawings & Photos | NSN 1730-00-838-1871


Demand History | NSN 1730-00-838-1871

Part Number Request Date QTY Origin
1730-00-838-1871 2021-04-105 7 United States
1730-00-838-1871 2019-01-16 1 US

Cross Reference | NSN 1730-00-838-1871

Part Number Cage Code Manufacturer
53E150308-1 05606 GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON)
53E150308-1 1VA44 UEMC INC.
53E150308-1 27074 UNITED ELECTRIC MOTOR CO INC
53E150308-1 76301 BOEING COMPANY, THE DBA BOEING
53E150308-1 7P268 TOKEN PRODUCTS CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1730-00-838-1871

Technical Data | NSN 1730-00-838-1871

Characteristic Specifications
GENERAL CHARACTERISTICS ITEM DESCRIPTION CORROSION RESISTING STEEL PIN; 0.188 IN. DIA
III END ITEM IDENTIFICATION F-4E ACFT

Restrictions/Controls & Freight Information | NSN 1730-00-838-1871

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI
Less than car load rating Q 70
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code SE San Antonio Air Logistics Center
Kelly AFB, TX 78241-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code Z unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
