Product Details | AIRCRAFT MAINTENANCE SLING

1730-00-810-9288 00001011730000000

Part Alternates: 3760901, 3-76090-1, 1730-00-810-9288, 00-810-9288, 1730008109288, 008109288

2540 | Aircraft Ground Servicing Equipment

Supply Group (FSG) NSN Assign. NIIN
25 01 JAN 1962 00-810-9288

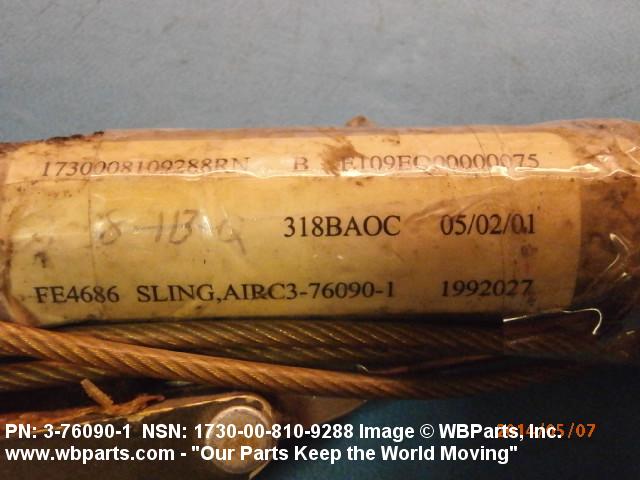

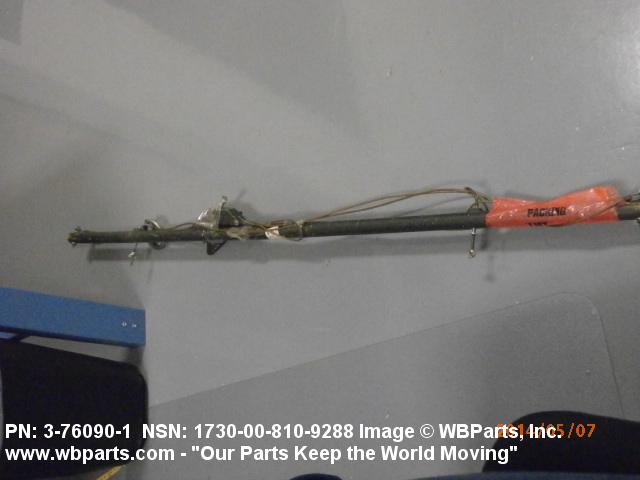

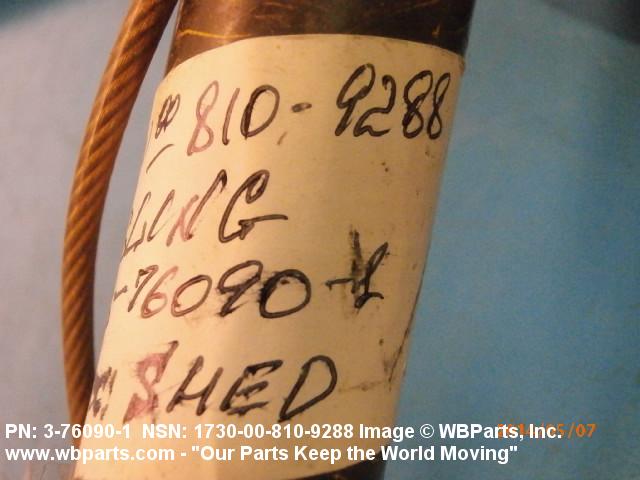

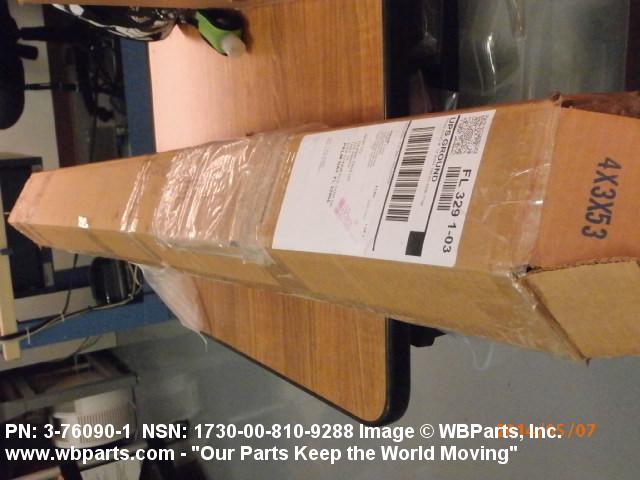

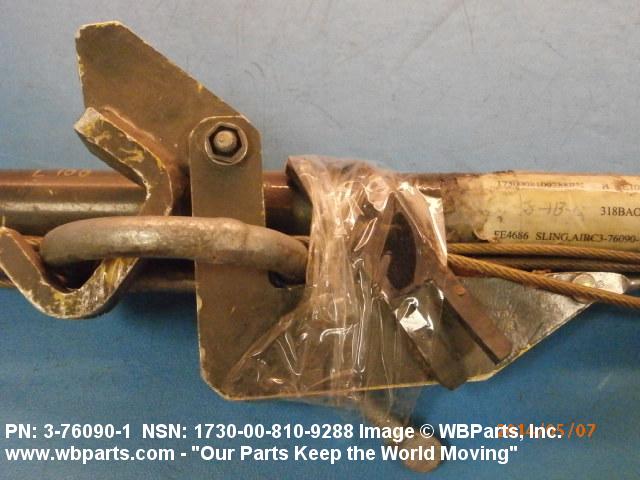

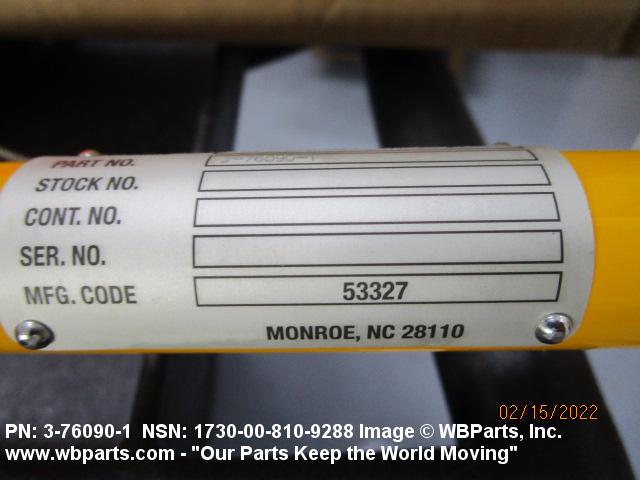

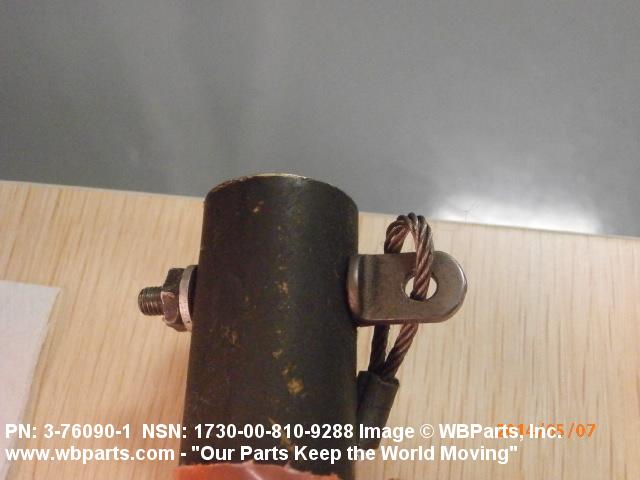

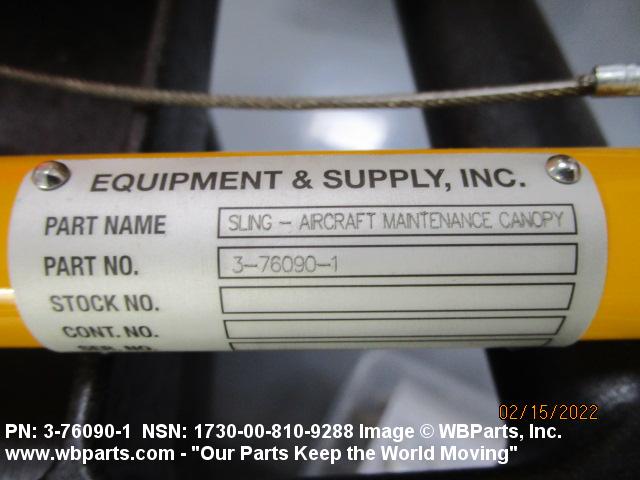

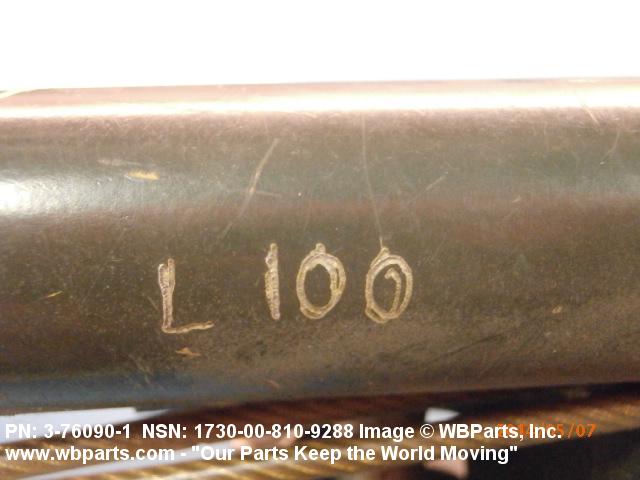

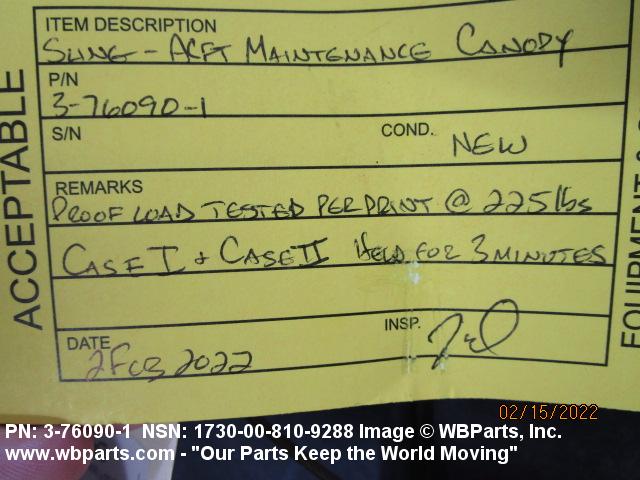

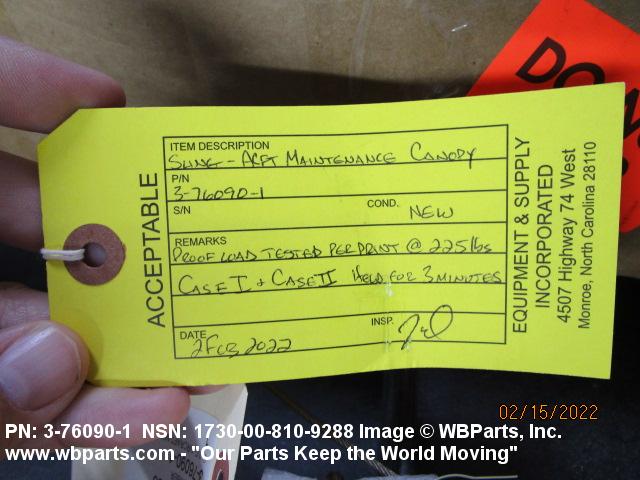

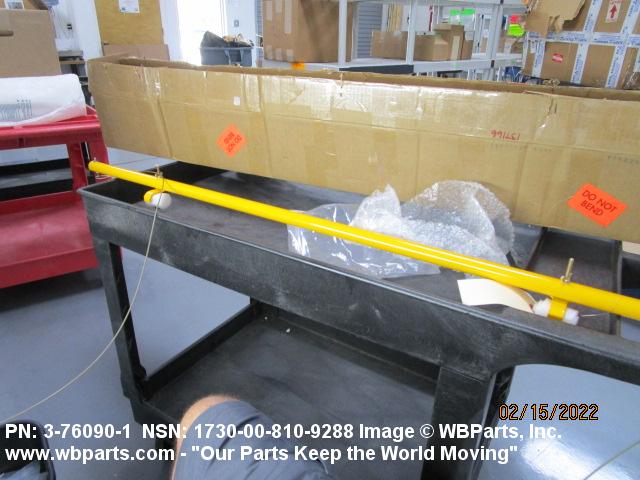

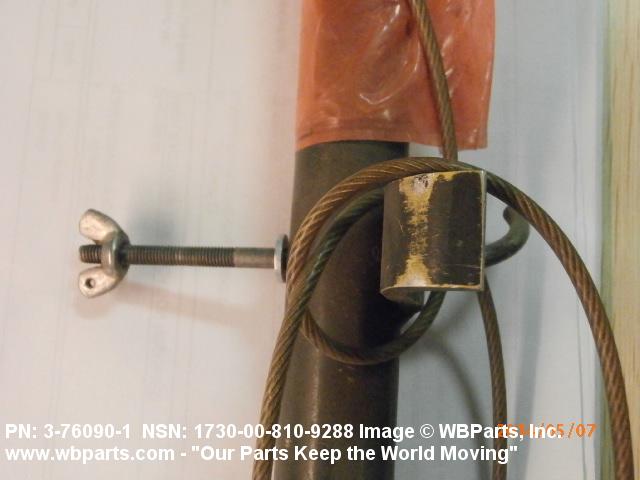

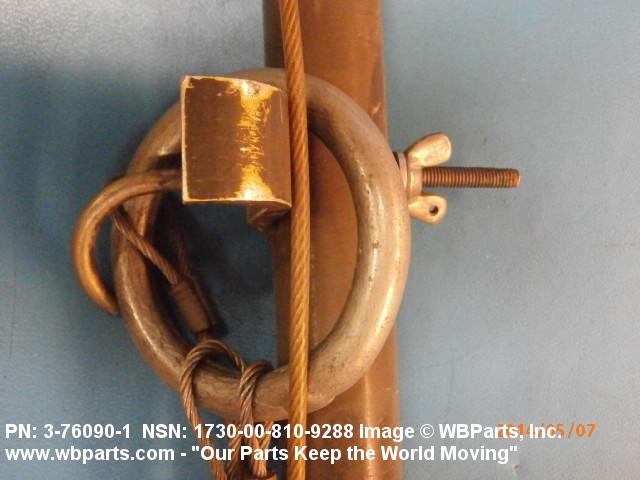

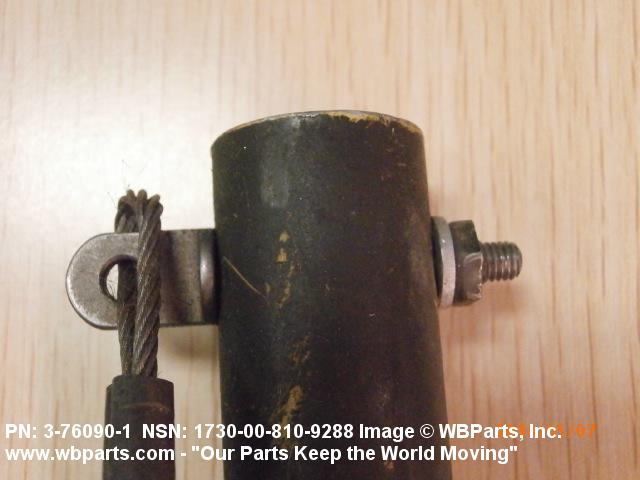

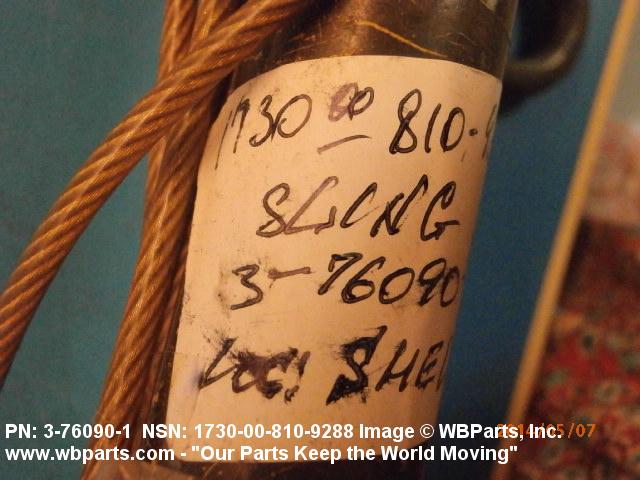

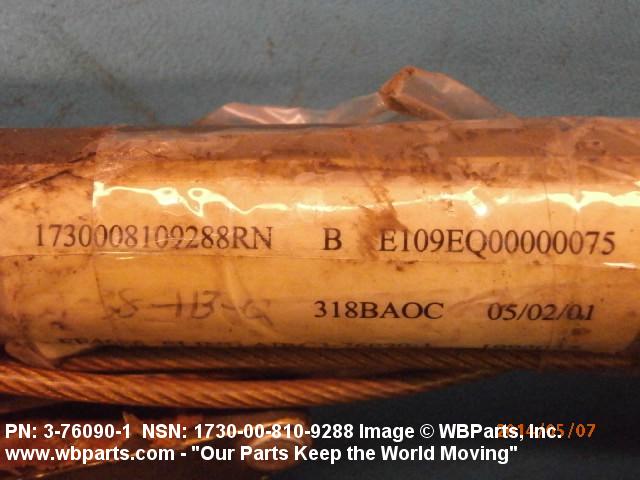

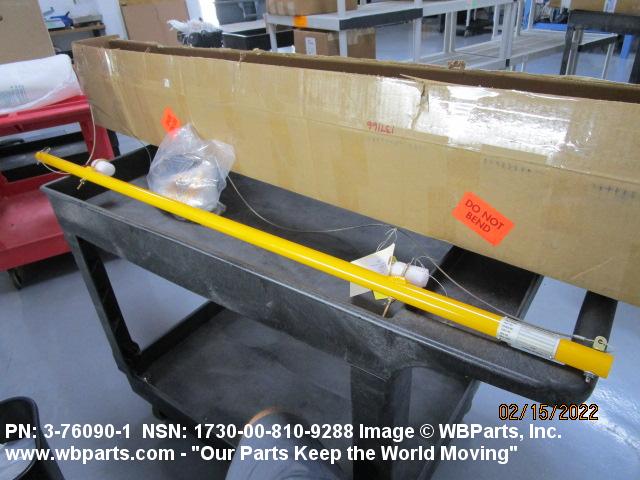

Drawings & Photos | NSN 1730-00-810-9288


Demand History | NSN 1730-00-810-9288

Part Number Request Date QTY Origin
1730-00-810-9288 2024-11-311 1 United States
1730-00-810-9288 2024-06-172 1 US
1730-00-810-9288 2024-05-130 2 US
1730-00-810-9288 2021-09-245 1 United States
1730-00-810-9288 2021-08-231 2 United States
1730-00-810-9288 2021-01-15 1 United States
1730-00-810-9288 2020-12-357 2 United States
3760901 2019-02-39 1 United States
3760901 2014-04-112 1 United States
1730-00-810-9288 2011-03-62 2 US
3760901 2011-03-62 2 US

Cross Reference | NSN 1730-00-810-9288

Part Number Cage Code Manufacturer
3-76090-1 06892 NORTHROP GRUMMAN SYSTEMS CORPORATION
3-76090-1 0JRC1 NORTHROP GRUMMAN TECHNICAL SERVICES, INC.
3-76090-1 76823 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1730-00-810-9288

Technical Data | NSN 1730-00-810-9288

Characteristic Specifications
USAGE DESIGN CANOPY TYPE
MANUFACTURERS CODE 76823
DESIGN CONTROL REFERENCE 3-76090-1

Restrictions/Controls & Freight Information | NSN 1730-00-810-9288

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 107520 WIRE ROPE/STRAND I/S
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 738 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Q Extremely fragile items including delicate instruments.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 1730-00-810-9288

Category Code Description
Materiel Management Aggregation CodeRNTG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC)
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Budget CodeY variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly.
Source of SupplyFLZWarner Robins Air Logistics Center
Robins AFB, GA 31098-5609
AgencyDFDepartment of the Air Force
Service OrganizationLLead Service - 22 (Repairable)
ReparabilityUAF Equipment Management System (AFEMS)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes1RAeronautical, photographic, and meteorological material (consumable or expense type material)
Naval Inventory Control Point, Philadelphia
Special Material IDVFFIGHTERAIRCRAFT(F5 E/F)
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
ReparabilityWGround Support Equipment-End Items
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
