NSN 1730-00-685-5626 AER014C, MILH5035B, 58A69D1
Product Details | AIRCRAFT COMPONENT HOISTING UNIT
1730-00-685-5626 An item consisting of a supporting frame, designed to mount on an aircraft for lifting, installing and/or removing engines, gunsights, propellers and the like. It may include HOIST (as modified), WINCH (as modified), SLING (as modified) and/or ADAPTER (1), HOISTING.
Part Alternates: AER014C, MILH5035B, 58A69D1, 58A69D1ADX, 58A69D2, 13595D, 14070D, 1730-00-685-5626, 00-685-5626, 1730006855626, 006855626
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-685-5626 | 38495 ( HOISTING UNIT, AIRCRAFT COMPONENT ) |

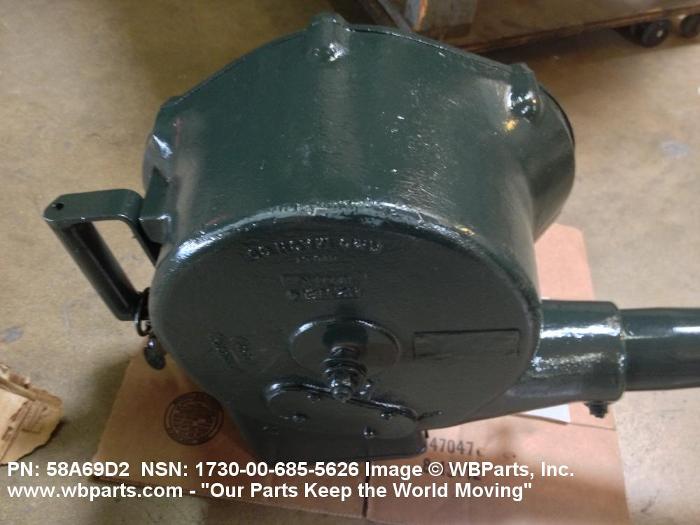

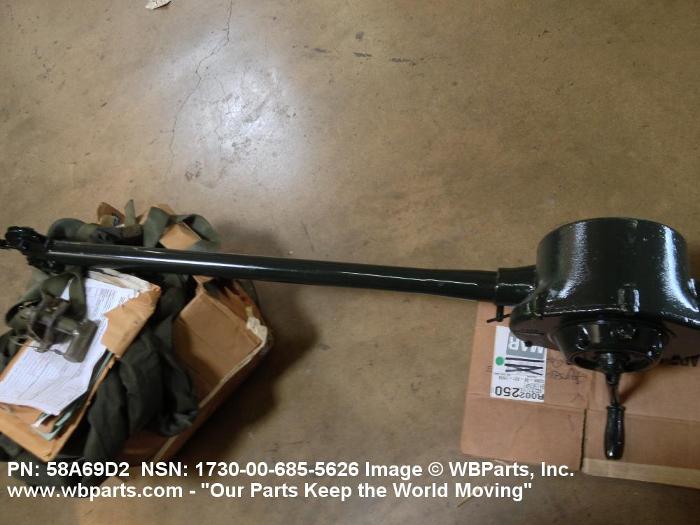

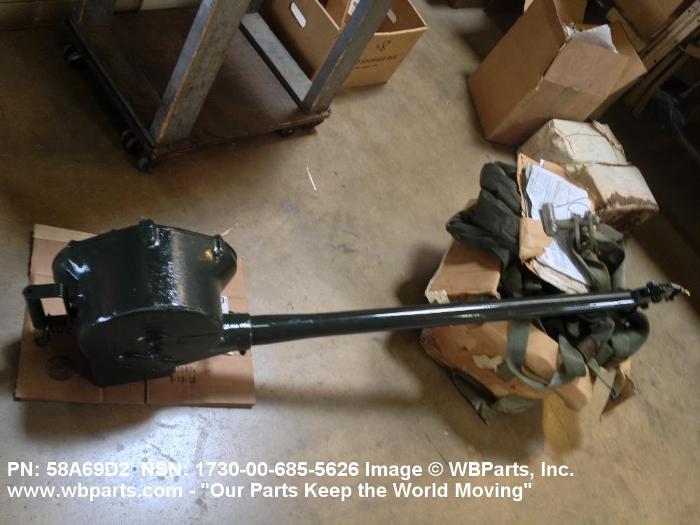

Drawings & Photos | NSN 1730-00-685-5626
Demand History | NSN 1730-00-685-5626
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1730-00-685-5626 | 2022-04-108 | 4 | United States |
| 1730-00-685-5626 | 2022-04-105 | 4 | United States |
| 1730-00-685-5626 | 2019-01-20 | 1 | TW |
| 1730-00-685-5626 | 2018-12-355 | 1 | TW |
| 1730-00-685-5626 | 2018-03-66 | 1 | US |
| 1730-00-685-5626 | 2012-09-263 | 1 | US |
| 1730-00-685-5626 | 2012-09-251 | 1 | US |
| 1730-00-685-5626 | 2012-06-179 | 2 | United States |
| AER014C | 2010-04-98 | 1 | United States |
Cross Reference | NSN 1730-00-685-5626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13595D | 01976 | ACCO INDUSTRIES INC SUB OF BABCOCK INTL INC |
| 14070D | 01976 | ACCO INDUSTRIES INC SUB OF BABCOCK INTL INC |
| 58A69D1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 58A69D1 | 11201 | DEVAL CORPORATION |
| 58A69D1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 58A69D1 | 79805 | ACCO-BABCOCK INC HOIST AND CRANE DIV |
| 58A69D1ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 58A69D2 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 58A69D2 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| AER014C | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| AER014C | 30003 | NAVAL AIR SYSTEMS COMMAND |
| MILH5035B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-00-685-5626
Related Products | NSN 1730-00-685-5626
Technical Data | NSN 1730-00-685-5626
| Characteristic | Specifications |
|---|---|
| LIFTING MECHANISM | INCLUDED |
| DESIGN TYPE | WINCH |
| OPERATION METHOD | MANUAL |
| SAFE OPERATING LOAD RATING | 2240.0 POUNDS NOMINAL |
| SUPPORT ASSEMBLY METHOD | BOLTED |
| SUPPORT MATERIAL | STEEL |
| SUPPORT MATERIAL CROSS-SECTIONAL SHAPE | TUBULAR |
| SUPPORT CONSTRUCTION | KNOCKED-DOWN |
| SUPPORT HEIGHT ADJUSTABILITY | NONADJUSTABLE |
| SLING | NOT INCLUDED |
| HOISTING ADAPTER | NOT INCLUDED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILH5035B |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 58A69D1 |
Restrictions/Controls & Freight Information | NSN 1730-00-685-5626
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 117040 | CHAIN/PULLEY HOISTS/BLOCKS |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-00-685-5626
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 6R | Aeronautical ground support equipment (reparable or investment type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | PF | FIGHTERAIRCRAFT(F14) |
| Issue Repair, or Requisition | BS | Submit/refer requisitions to NAVICP PHIL. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | X | Special Program Reparables |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
