NSN 1730-00-540-2343 MILJ26013, MILJ26013TYA5, MILJ26013TYPEA5
Product Details | AIRCRAFT LANDING GEAR JACK
1730-00-540-2343 A lifting device which consists basically of a ram(s) actuated by a hydraulic pump(s). One end of the ram(s) is designed specifically to mate with the jacking points on the landing gear of an aircraft. It may have a wheeled base with a drawbar for mobility. Excludes JACK, DOLLY TYPE, HYDRAULIC and JACK, HYDRAULIC, HAND.
Part Alternates: MILJ26013, MILJ26013TYA5, MILJ26013TYPEA5, MILJ8246TYPEA2, 050550, 0505-50 , 12000105, 12-0001-05 , 1926010, 1926-010, 53D22020, 968.85.81.218 , 9688581218, 1730-00-540-2343, 00-540-2343, 1730005402343, 005402343
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-540-2343 | 26862 ( JACK, AIRCRAFT LANDING GEAR ) |

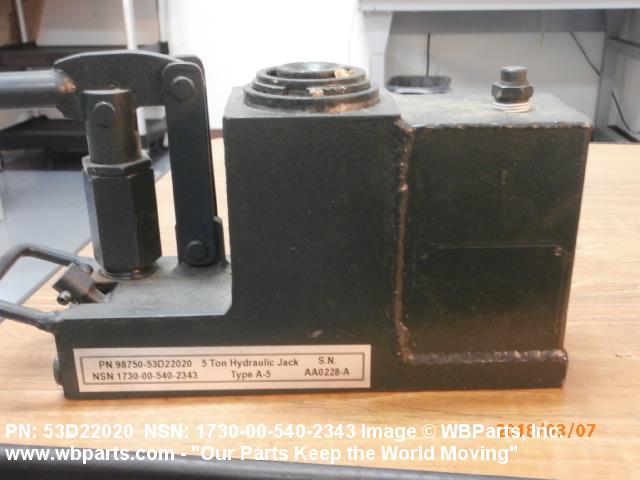

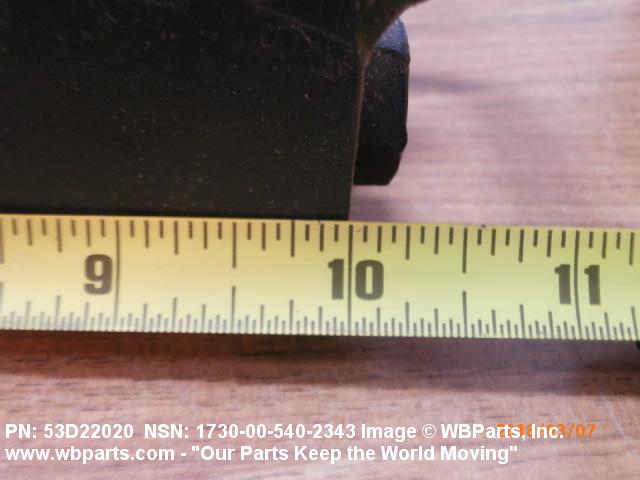

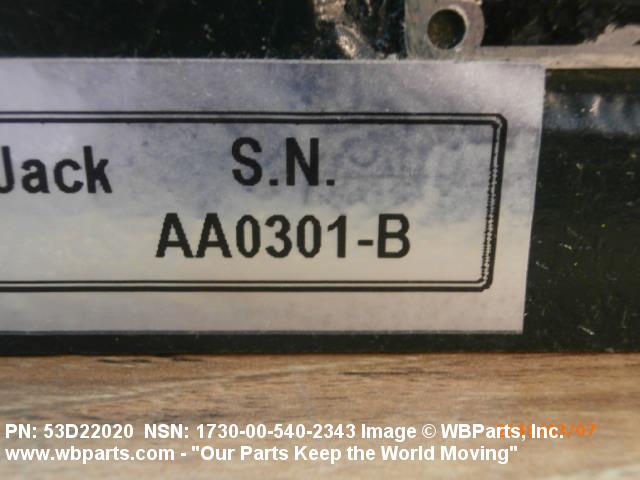

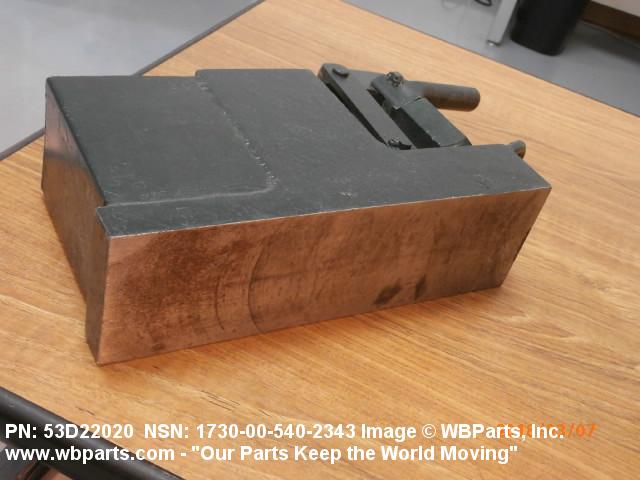

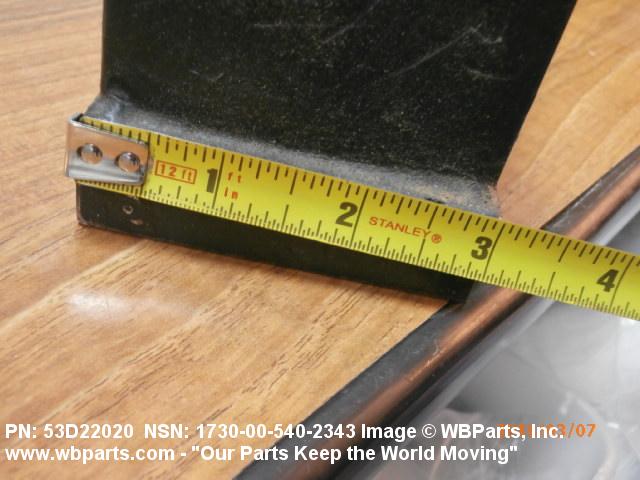

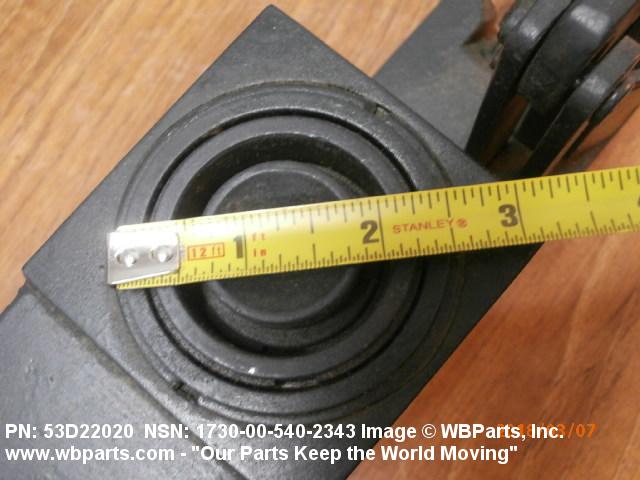

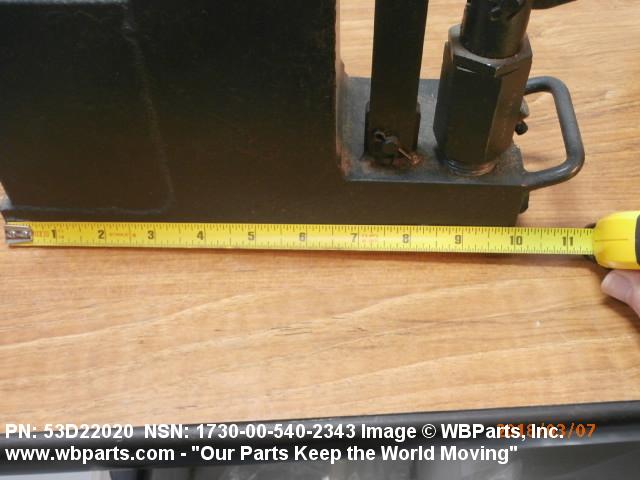

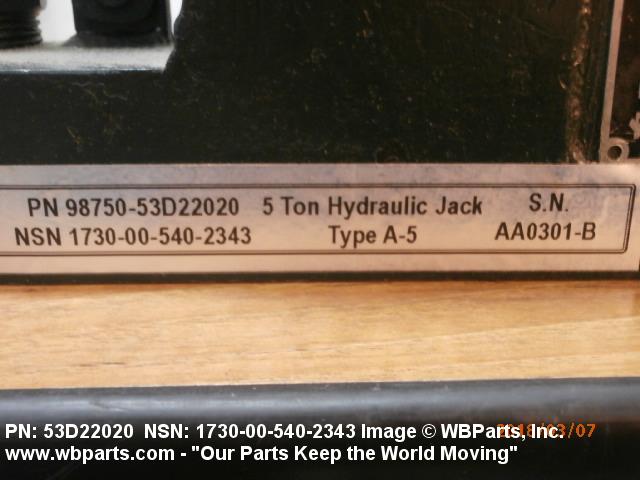

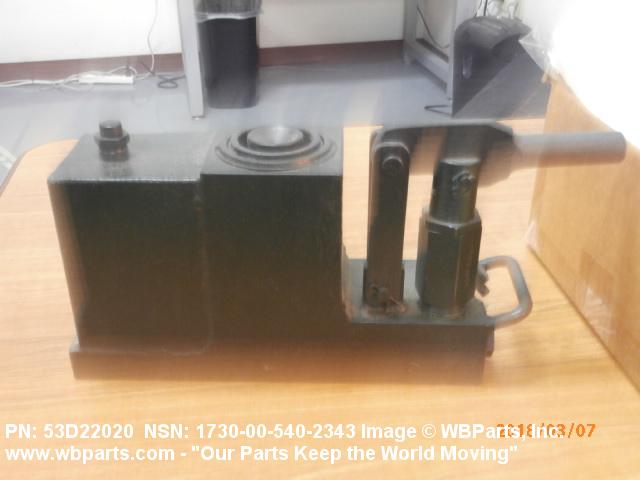

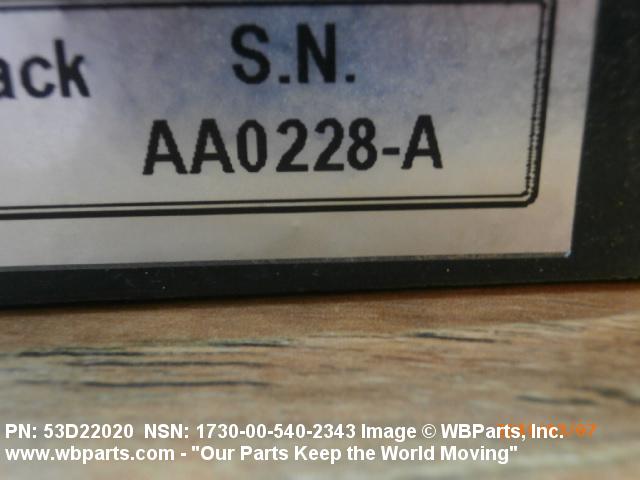

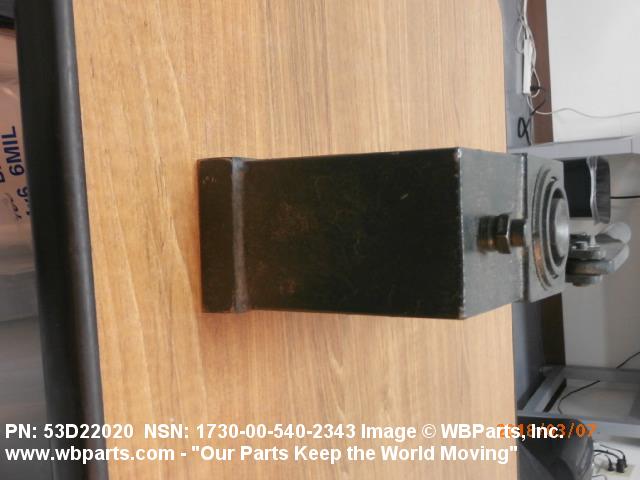

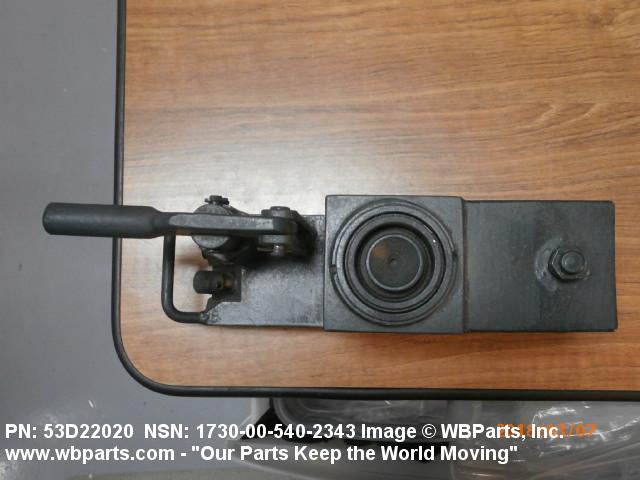

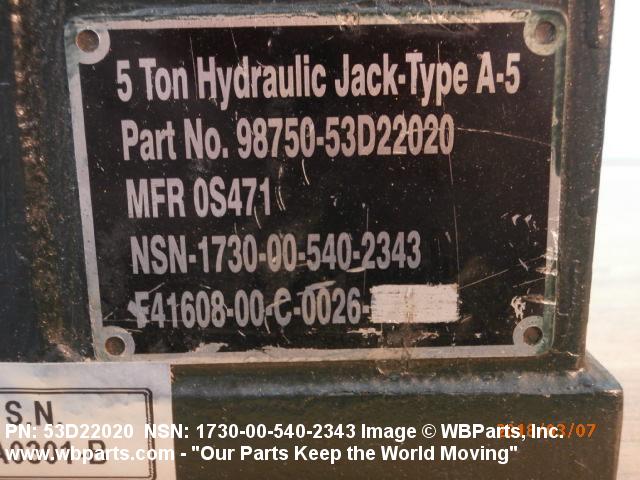

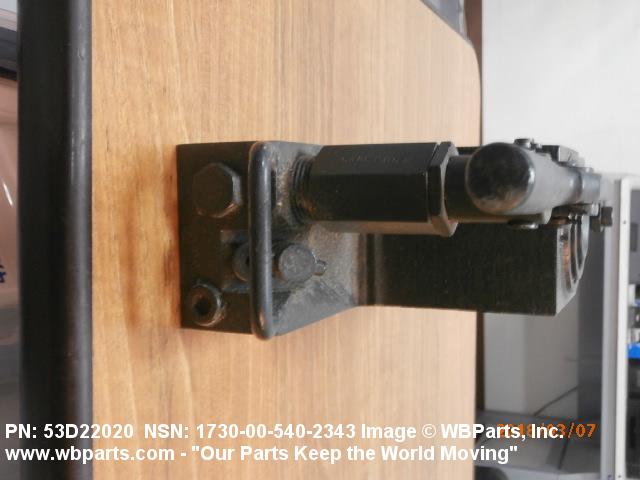

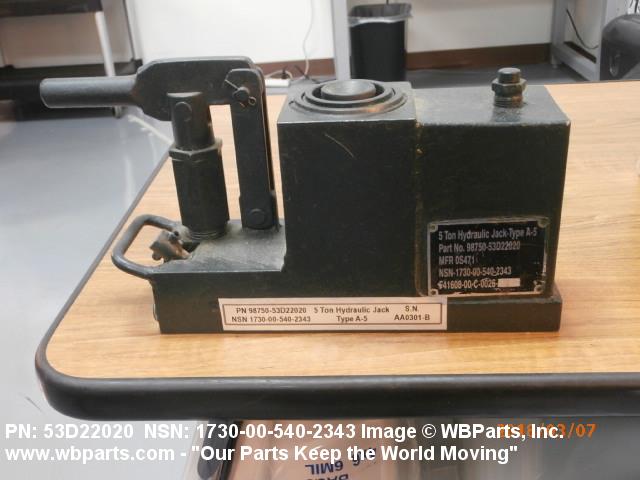

Drawings & Photos | NSN 1730-00-540-2343
Demand History | NSN 1730-00-540-2343
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1730-00-540-2343 | 2024-10-302 | 1 | US |
| 1730-00-540-2343 | 2024-10-300 | 104 | US |
| 1730-00-540-2343 | 2024-10-281 | 1 | CA |
| 1730-00-540-2343 | 2024-09-271 | 5 | Netherlands |
| 1730-00-540-2343 | 2024-09-264 | 1 | Greece |
| 1730-00-540-2343 | 2023-09-269 | 1 | US |
| 1730-00-540-2343 | 2023-09-268 | 1 | United States |
| 1730-00-540-2343 | 2023-05-135 | 1 | US |
| 1730-00-540-2343 | 2023-04-99 | 2 | United States |
| 1730-00-540-2343 | 2022-09-270 | 1 | Singapore |
| 1730-00-540-2343 | 2022-08-231 | 2 | CO |
| 1730-00-540-2343 | 2022-05-139 | 2 | Taiwan |
| 1730-00-540-2343 | 2022-03-69 | 1 | Netherlands |
| 1730-00-540-2343 | 2021-09-245 | 1 | United States |
| 53D22020 | 2021-08-238 | 9 | United States |
| 1730-00-540-2343 | 2021-06-153 | 2 | PH |
| 1730-00-540-2343 | 2021-05-125 | 2 | FR |
| 1730-00-540-2343 | 2021-02-49 | 8 | PH |
| 1730-00-540-2343 | 2020-12-342 | 9 | US |
| 1730-00-540-2343 | 2020-10-290 | 1 | US |
| 1730-00-540-2343 | 2020-10-280 | 2 | United States |
| 1730-00-540-2343 | 2020-09-261 | 10 | KR |
| 53D22020 | 2020-09-252 | 0 | |
| 1730-00-540-2343 | 2020-09-249 | 0 | NECO |
| 1730-00-540-2343 | 2020-08-225 | 1 | BR |
| 1730-00-540-2343 | 2020-08-220 | 1 | United States |
| 1730-00-540-2343 | 2020-04-99 | 1 | United States |
| 1730-00-540-2343 | 2020-04-99 | 1 | United States |
| 53D22020 | 2020-03-80 | 0 | |
| 1730-00-540-2343 | 2020-03-79 | 0 | NECO |
| 1730-00-540-2343 | 2020-01-12 | 2 | SA |
| 1730-00-540-2343 | 2019-09-256 | 1 | US |
| 53D22020 | 2019-08-232 | 1 | Netherlands |
| 53D22020 | 2019-08-221 | 16 | |
| 1730-00-540-2343 | 2019-08-220 | 16 | NECO |
| 1730-00-540-2343 | 2019-05-128 | 3 | United States |
| 1730-00-540-2343 | 2019-02-43 | 4 | MANUAL |
| 53D22020 | 2019-02-43 | 4 | United States |
| 1730-00-540-2343 | 2019-01-23 | 4 | MANUAL |
| 53D22020 | 2019-01-23 | 4 | US |
| 1730-00-540-2343 | 2018-10-297 | 1 | United States |
| 1730-00-540-2343 | 2018-09-259 | 2 | TW |
| 1730-00-540-2343 | 2018-08-242 | 8 | US |
| 53D22020 | 2017-08-234 | 2 | Netherlands |
| 1730-00-540-2343 | 2017-04-101 | 1 | US |
| 1730-00-540-2343 | 2017-03-86 | 1 | US |
| 53D22020 | 2017-01-06 | 1 | US |
| 53D22020 | 2016-12-337 | 1 | United States |
| 1730-00-540-2343 | 2016-10-300 | 2 | US |
| 53D22020 | 2016-09-250 | 4 | United States |
| 1730-00-540-2343 | 2016-07-183 | 4 | United States |
| 1730-00-540-2343 | 2016-02-32 | 2 | United States |
| 1730-00-540-2343 | 2015-12-341 | 1 | US |
| 53D22020 | 2015-12-338 | 11 | |
| 1730-00-540-2343 | 2015-12-337 | 11 | NECO |
| 1730-00-540-2343 | 2015-11-321 | 1 | US |
| 005402343 | 2015-01-30 | 1 | United States |
| 1730-00-540-2343 | 2014-12-349 | 2 | US |
| 53D22020 | 2014-10-289 | 22 | |
| 1730-00-540-2343 | 2014-10-287 | 22 | NECO |
| 53D22020 | 2014-09-261 | 16 | |
| 1730-00-540-2343 | 2014-09-260 | 16 | NECO |
| 1730-00-540-2343 | 2014-09-247 | 1 | United States |
| 53D22020 | 2014-06-164 | 1 | US |
| 050550 | 2014-05-128 | 2 | AE |
| 53D22020 | 2014-04-92 | 23 | |
| 1730-00-540-2343 | 2014-03-90 | 23 | NECO |
| 53D22020 | 2014-03-78 | 17 | |
| 1730-00-540-2343 | 2014-03-77 | 17 | NECO |
| 1730-00-540-2343 | 2014-02-51 | 1 | US |
| 53D22020 | 2014-01-10 | 35 | |
| 1730-00-540-2343 | 2014-01-08 | 35 | NECO |
| 53D22020 | 2013-12-345 | 25 | |
| 1730-00-540-2343 | 2013-12-344 | 25 | NECO |
| 53D22020 | 2013-10-301 | 4 | US |
| 1730-00-540-2343 | 2013-10-295 | 2 | United States |
| 53D22020 | 2013-01-30 | 24 | |
| 1730-00-540-2343 | 2013-01-29 | 24 | NECO |
| 1730-00-540-2343 | 2012-12-351 | 1 | Philippines |
| 1926010 | 2012-12-351 | 1 | Philippines |
| 1926-010 | 2012-11-335 | 1 | Philippines |
| 53D22020 | 2011-11-324 | 5 | |
| 1730-00-540-2343 | 2011-11-323 | 5 | NECO |
| 1730-00-540-2343 | 2011-08-224 | 1 | United States |
| 1926-010 | 2011-06-154 | 2 | |
| 1730-00-540-2343 | 2011-06-153 | 2 | NECO |
| 1730-00-540-2343 | 2011-05-129 | 1 | United States |
| 53D22020 | 2009-07-188 | 1 | Singapore |
| 1730-00-540-2343 | 2008-12-350 | 172 | United States |
| 1730-00-540-2343 | 2008-02-39 | 1 | United States |
| 1730-00-540-2343 | 2006-09-254 | 1 | United States |
| 53D22020 | 2006-03-89 | 1 | Malaysia |
| 53D22020 | 2006-01-20 | 4 | US |
Cross Reference | NSN 1730-00-540-2343
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0505-50 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| 1926-010 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| 53D22020 | 80049 | DEPARTMENT OF THE AIR FORCE |
| MILJ26013 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILJ26013TYA5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILJ26013TYPEA5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILJ8246TYPEA2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-00-540-2343
Related Products | NSN 1730-00-540-2343
Technical Data | NSN 1730-00-540-2343
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | SELF-CONTAINED |
| MOVEMENT TYPE | PORTABLE |
| BASE WIDTH | 3.000 INCHES NOMINAL |
| BASE LENGTH | 10.000 INCHES NOMINAL |
| BASE SHAPE | RECTANGULAR |
| RATED VERTICAL CAPACITY | 5.0 TONS |
| RETRACTED HEIGHT | 5.500 INCHES |
| HYDRAULIC LIFTING DISTANCE | 9.000 INCHES NOMINAL |
| EXTENDED HEIGHT | 17.500 INCHES |
| PISTON CYLINDER HOUSING OUTSIDE DIAMETER | 2.800 INCHES NOMINAL |
| SCREW EXTENSION | INCLUDED |
| PUMP TYPE AND QUANTITY | 1 HAND |
| POWER OPERATED PUMP MOUNTING PROVISION | NOT PROVIDED |
| PUMP RELATIONSHIP TO LIFTING DEVICE | INTEGRAL |
| WHEEL REMOVAL CRANE | NOT INCLUDED |
| SPECIAL FEATURES | 1000.0 LB OVERLOAD LIFT CAPACITY; 3.0 IN. SCREW EXTENSION; HYDRAULIC; MANUAL OPERATION |
| NONDEFINITIVE SPEC/STD DATA | A5 TYPE |
| III FUNCTIONAL DESCRIPTION | USED TO LIFT ACFT AT DESIGNATED LIFT POINTS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILJ26013 |
Restrictions/Controls & Freight Information | NSN 1730-00-540-2343
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 184970 | TOOLS:JACKS/JACKSCREWS NOI SUB2 |
| Less than car load rating | R | 65 |
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-00-540-2343
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | C | Other Aircraft Categories |
| Weapons Systems/End Item or Homogeneous Group | C8 | Aviation Sets, Kits and Outfits, Aircraft Ground Support Equipment (AGSE) Surface-to-Air Missiles |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | W | Ground Support Equipment-End Items |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
