NSN 1730-00-026-4550 52229, 00-026-4550, 000264550
Product Details | GROUND SAFETY PIN

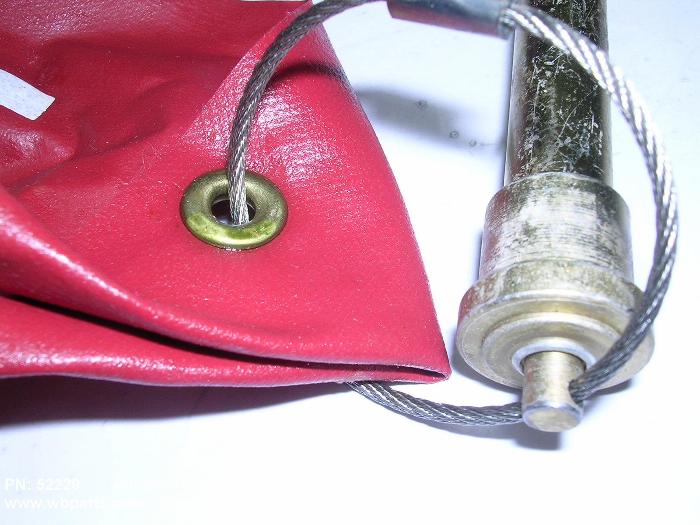

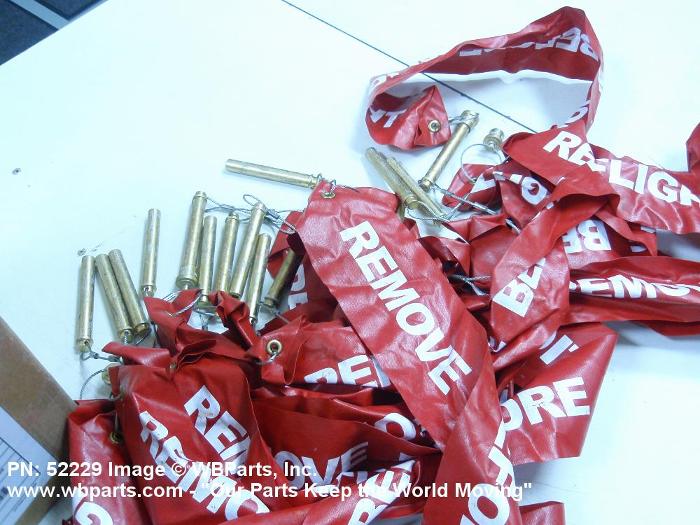

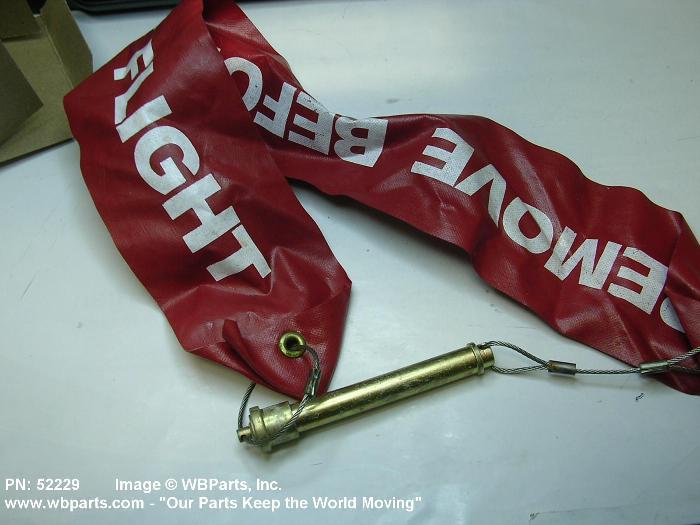

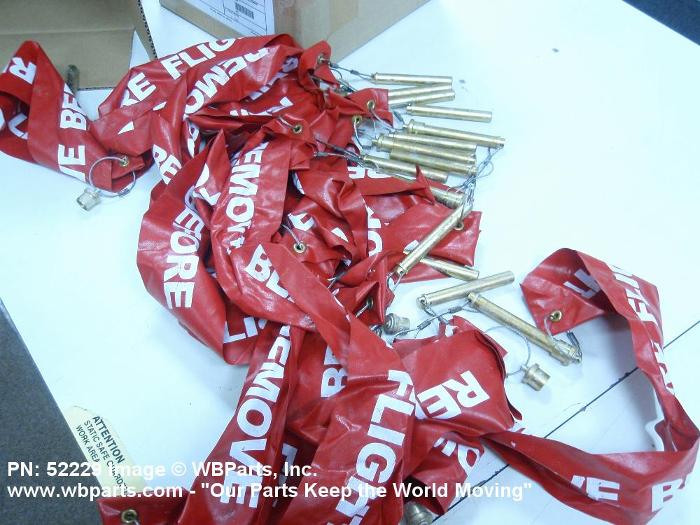

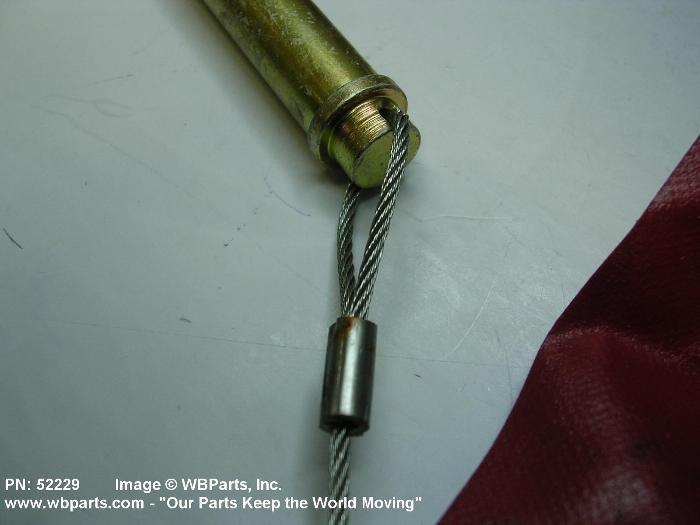

1730-00-026-4550 An item consisting of a pin/pins attached to a STREAMER,WARNING. It may be of various sizes and types and is generally a cylindrically-shaped metallic item having straight irregular contours. The item is installed in specific locations on aircraft, guided missiles, space vehicles, rockets, bombs, and mine dispensers, armament pods, and the like to prevent inadvertent operation and as a warning that certain preoperation functions are required.20317300035Aircraft Ground Servicing Equipment20900039Miscellaneous Ship and Marine Equipment25900034Miscellaneous Vehicular Components
Part Alternates: 52229, 1730-00-026-4550, 00-026-4550, 1730000264550, 000264550
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 21 OCT 1972 | 00-026-4550 | 80424 ( PIN, WARNING STREAMER ) |
Drawings & Photos | NSN 1730-00-026-4550
Demand History | NSN 1730-00-026-4550
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 52229 | 2024-07-190 | 38 | DIBBS |
| 52229 | 2024-06-178 | 38 | DIBBS |
| 52229 | 2024-02-51 | 59 | DIBBS |
| 52229 | 2024-02-38 | 59 | DIBBS |
| 1730-00-026-4550 | 2023-08-221 | 1 | US |
| 52229 | 2023-08-221 | 45 | DIBBS |
| 52229 | 2021-07-196 | 75 | DIBBS |
| 52229 | 2021-06-181 | 75 | DIBBS |
| 1730-00-026-4550 | 2017-11-333 | 4 | MANUAL |
| 52229 | 2017-11-333 | 4 | AE |
| 1730-00-026-4550 | 2009-09-244 | 93 | DIBBS |
| 1730-00-026-4550 | 2009-04-107 | 25 | DIBBS |
| 1730-00-026-4550 | 2008-10-290 | 15 | Taiwan |
| 1730-00-026-4550 | 2008-10-290 | 15 | Taiwan |
| 1730-00-026-4550 | 2008-10-288 | 40 | DIBBS |
| 1730-00-026-4550 | 2008-10-282 | 15 | Taiwan |
| 1730-00-026-4550 | 2008-08-224 | 39 | DIBBS |
| 1730-00-026-4550 | 2008-07-190 | 34 | DIBBS |
| 1730-00-026-4550 | 2008-03-65 | 5 | Taiwan |
| 1730-00-026-4550 | 2007-09-257 | 83 | DIBBS |
Cross Reference | NSN 1730-00-026-4550
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 52229 | 84256 | AVIBANK MFG., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-00-026-4550
Related Products | NSN 1730-00-026-4550
Technical Data | NSN 1730-00-026-4550
| Characteristic | Specifications |
|---|---|
| SHANK MATERIAL | STEEL |
| PIN GRIP LENGTH | 3.400 INCHES NOMINAL |
| SHANK DIAMETER | 0.434 INCHES NOMINAL |
| SPECIAL FEATURES | W/WARNING STREAMER |
| MANUFACTURERS CODE | 84256 |
| DESIGN CONTROL REFERENCE | 52229 |
Restrictions/Controls & Freight Information | NSN 1730-00-026-4550
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-00-026-4550
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
