NSN 1680-01-528-9279 123AMM42116, 123AMM421161, 123AMM42116-1
Product Details | BELL CRANK
1680-01-528-9279 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 123AMM42116, 123AMM421161, 123AMM42116-1, 1680-01-528-9279, 01-528-9279, 1680015289279, 015289279
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 29 MAR 2005 | 01-528-9279 | 22321 ( BELL CRANK ) |
Drawings & Photos | NSN 1680-01-528-9279
Demand History | NSN 1680-01-528-9279
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-01-528-9279 | 2015-07-183 | 2 | DIBBS |
| 1680-01-528-9279 | 2015-06-175 | 2 | DIBBS |
| 1680-01-528-9279 | 2015-06-172 | 1 | DIBBS |
| 1680-01-528-9279 | 2014-08-218 | 1 | DIBBS |
| 1680-01-528-9279 | 2014-08-217 | 1 | DIBBS |
| 1680-01-528-9279 | 2014-02-58 | 2 | DIBBS |
Cross Reference | NSN 1680-01-528-9279
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 123AMM42116 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 123AMM42116-1 | 0R2T5 | DESIGN/OL, INC. |
| 123AMM42116-1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 123AMM42116-1 | 61174 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-01-528-9279
Technical Data | NSN 1680-01-528-9279
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/12 ASSN STD SINGLE MATERIAL RESPONSE |

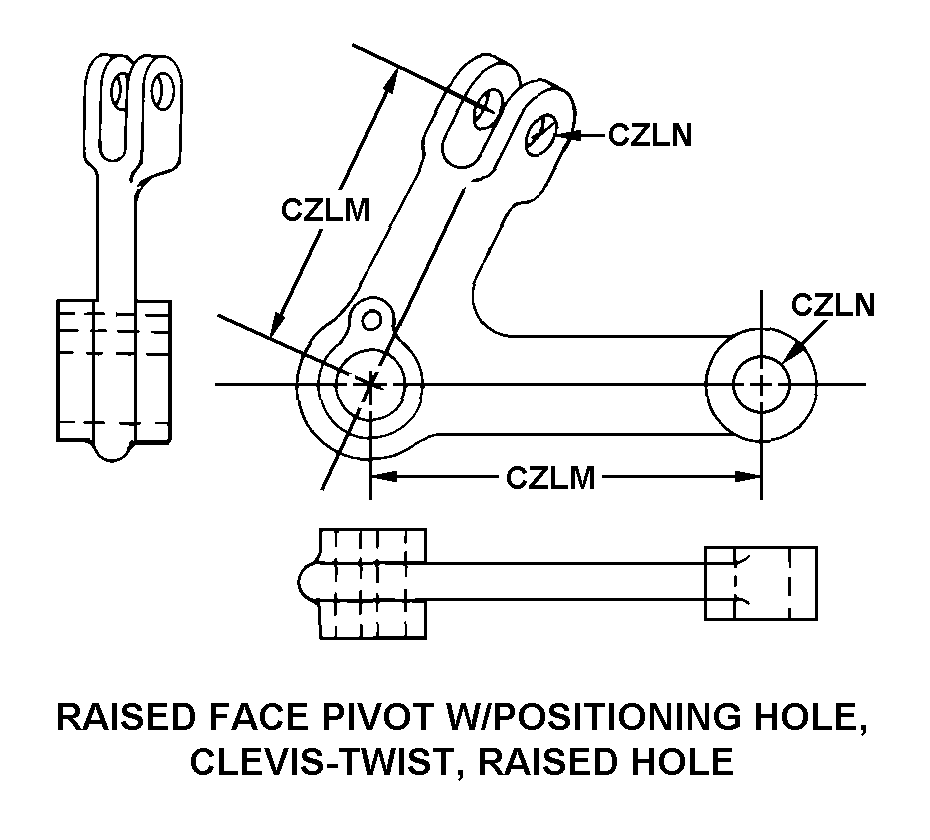

| STYLE DESIGNATOR | A30 RAISED FACE PIVOT W/POSITIONING HOLE, CLEVIS-TWIST, RAISED HOLE |
