NSN 1680-01-504-5153 74A3507022008, 74A350702-2008, 01-504-5153
Product Details | METAL MOLDING
1680-01-504-5153 A shaped piece of metal having a plane or curved surface, either sunk or projecting, used for ornamental or other application.20616800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items25900034Miscellaneous Vehicular Components56700034Building Components, Prefabricated95200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 74A3507022008, 74A350702-2008, 1680-01-504-5153, 01-504-5153, 1680015045153, 015045153
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 30 JAN 2003 | 01-504-5153 | 04153 ( MOLDING, METAL ) |
Drawings & Photos | NSN 1680-01-504-5153
Demand History | NSN 1680-01-504-5153
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-01-504-5153 | 2016-07-192 | 6 | DIBBS |
| 1680-01-504-5153 | 2015-07-211 | 1 | DIBBS |
| 1680-01-504-5153 | 2014-12-363 | 4 | DIBBS |
| 1680-01-504-5153 | 2014-03-77 | 1 | DIBBS |
| 1680-01-504-5153 | 2014-03-72 | 1 | DIBBS |
| 1680-01-504-5153 | 2013-12-350 | 1 | DIBBS |
| 1680-01-504-5153 | 2013-10-274 | 1 | DIBBS |
| 1680-01-504-5153 | 2013-06-175 | 1 | DIBBS |
| 74A3507022008 | 2013-04-91 | 2 | United States |
| 74A3507022008 | 2012-10-290 | 5 | United States |
| 74A3507022008 | 2012-10-290 | 10 | United States |
| 1680-01-504-5153 | 2012-08-223 | 3 | United States |
| 74A3507022008 | 2012-01-11 | 2 | United States |
| 74A3507022008 | 2011-04-91 | 1 | United States |
| 015045153 | 2010-10-301 | 1 | United States |
Cross Reference | NSN 1680-01-504-5153
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A350702-2008 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-01-504-5153
Technical Data | NSN 1680-01-504-5153
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |

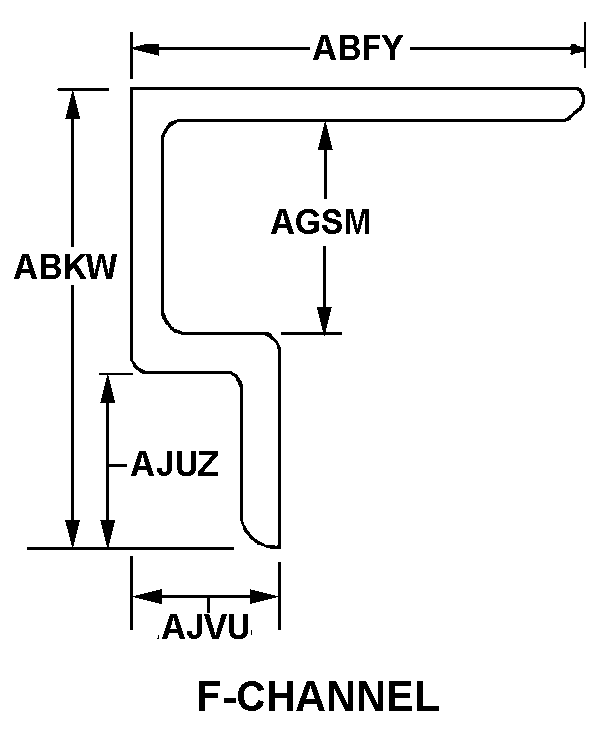

| STYLE DESIGNATOR | 203 F-CHANNEL |
| OVERALL DEPTH | 0.570 INCHES MINIMUM AND 0.615 INCHES MAXIMUM |
| ISSUE FORM | SPECIFIC LENGTH |
| LENGTH | 8.060 INCHES MINIMUM AND 8.100 INCHES MAXIMUM |
| MOUNTING METHOD | HOLE |
| SPECIAL FEATURES | PART NAME ASSIGNED BY CONTROLLING AGENCY - GUIDE SEAL, CANOPY, FORWARD CORNER; THIS IS RT. HAND GUIDE FOR BOTH THE CANOPY SEAL AND RAIN SEAL; MACHINED FROM 6061-T651 ALUMINUM MATERIAL; NEXT HIGHER ASSEMBLY - P/N 74A350007 |
| III END ITEM IDENTIFICATION | F-18 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 1680-01-504-5153
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 1680-01-504-5153
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
