NSN 1680-01-491-9800 17P8E20029, 17P8E2002-9, 01-491-9800
Product Details | METAL MOLDING
1680-01-491-9800 A shaped piece of metal having a plane or curved surface, either sunk or projecting, used for ornamental or other application.20616800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items25900034Miscellaneous Vehicular Components56700034Building Components, Prefabricated95200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 17P8E20029, 17P8E2002-9, 1680-01-491-9800, 01-491-9800, 1680014919800, 014919800
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 07 NOV 2001 | 01-491-9800 | 04153 ( MOLDING, METAL ) |
Drawings & Photos | NSN 1680-01-491-9800
Cross Reference | NSN 1680-01-491-9800
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17P8E2002-9 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-01-491-9800
Technical Data | NSN 1680-01-491-9800
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| FABRICATION METHOD | ROLLED |

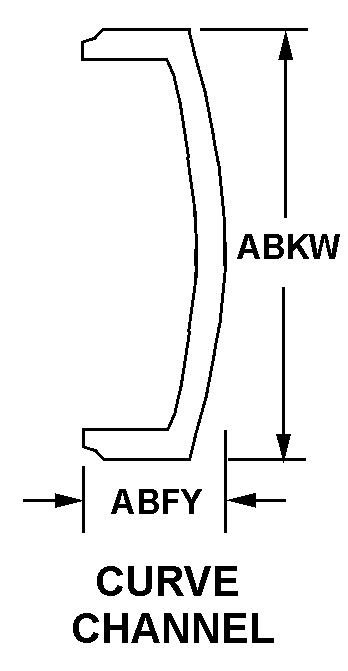

| STYLE DESIGNATOR | 191 CURVE CHANNEL |
| LEGEND A | 0.700 INCHES NOMINAL |
| LEGEND B | 0.650 INCHES NOMINAL |
| ISSUE FORM | SPECIFIC LENGTH |
| LENGTH | 5.000 INCHES NOMINAL |
| MOUNTING METHOD | HOLE |
| SPECIAL FEATURES | MANUFACTURER SUGGESTED NAME:CHANNEL,SUPPORT DETAILS,ELECTRICAL-ENGINE BUILD UP |
| III END ITEM IDENTIFICATION | C-17 |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 17P8E2002-9 |
Restrictions/Controls & Freight Information | NSN 1680-01-491-9800
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 1680-01-491-9800
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
