NSN 1680-01-474-5217 74A3143382066, 74A314338-2066, 01-474-5217
Product Details | METAL MOLDING
1680-01-474-5217 A shaped piece of metal having a plane or curved surface, either sunk or projecting, used for ornamental or other application.20616800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items25900034Miscellaneous Vehicular Components56700034Building Components, Prefabricated95200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 74A3143382066, 74A314338-2066, 1680-01-474-5217, 01-474-5217, 1680014745217, 014745217
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 04 MAY 2000 | 01-474-5217 | 04153 ( MOLDING, METAL ) |
Drawings & Photos | NSN 1680-01-474-5217
Demand History | NSN 1680-01-474-5217
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-01-474-5217 | 2013-09-268 | 37 | DIBBS |
| 1680-01-474-5217 | 2013-06-156 | 24 | DIBBS |
| 1680-01-474-5217 | 2013-03-64 | 9 | DIBBS |
| 1680-01-474-5217 | 2013-01-09 | 14 | DIBBS |
| 1680-01-474-5217 | 2012-05-130 | 2 | United States |
Cross Reference | NSN 1680-01-474-5217
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A314338-2066 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-01-474-5217
Technical Data | NSN 1680-01-474-5217
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| FABRICATION METHOD | ROLLED |

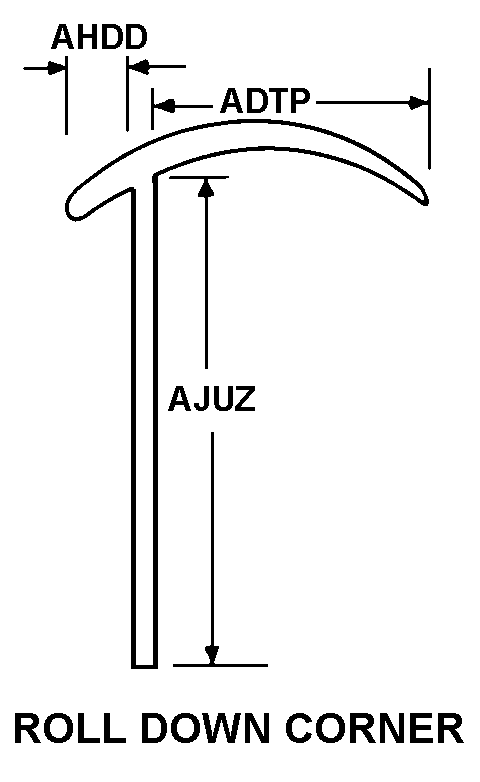

| STYLE DESIGNATOR | 2 ROLL DOWN CORNER |
| ATTACHMENT FEATURE WIDTH | 15.300 INCHES NOMINAL |
| RELIEF DEPTH | 2.490 INCHES NOMINAL |
| ATTACHMENT FEATURE HEIGHT | 2.540 INCHES NOMINAL |
| ISSUE FORM | SPECIFIC LENGTH |
| LENGTH | 17.840 INCHES NOMINAL |
| MOUNTING METHOD | RIVET |
| III END ITEM IDENTIFICATION | F/A-18 (HORNET) |
Restrictions/Controls & Freight Information | NSN 1680-01-474-5217
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 138230 | MOLDS RUBBER/PLASTIC MOLDING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-01-474-5217
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
