NSN 1680-01-330-0001 70450-01052-051, 01-330-0001, 7045001052051
Product Details | ELECTRICAL-ELECTRONIC EQUIPMENT CONTROL PANEL
1680-01-330-0001 A panel, upon which are mounted such items as indicator lights, meters, relays, switches and the like, which is specifically designed for the purpose of controlling the operation of electrical and electronic equipment. See also PANEL, TEST, ELECTRICAL.20912900036Miscellaneous Fire Control Equipment14300037Guided Missile Remote Control Systems16800049Miscellaneous Aircraft Accessories and Components18200024Space Vehicle Components58950037Miscellaneous Communication Equipment61100028Electrical Control Equipment69200025Armament Training Devices69300026Operation Training Devices70500014ADP Components
Part Alternates: 70450-01052-051, 1680-01-330-0001, 01-330-0001, 1680013300001, 7045001052051, 013300001
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 28 NOV 1990 | 01-330-0001 | 39448 ( PANEL, CONTROL, ELECTRICAL-ELECTRONIC EQUIPMENT ) |

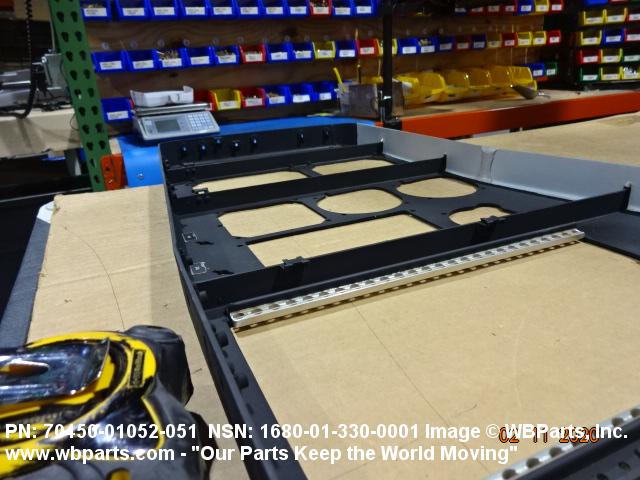

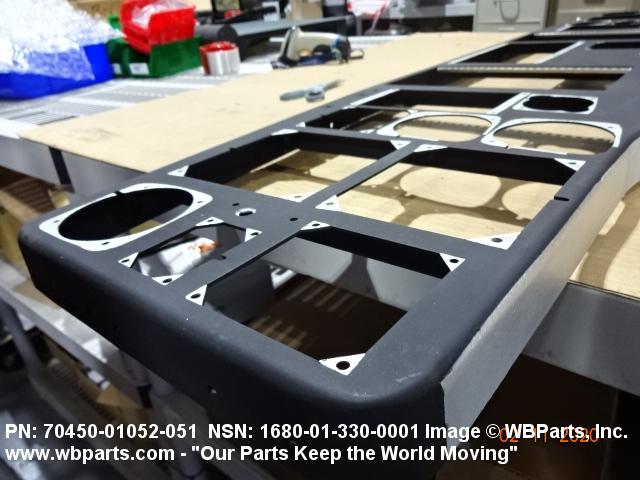

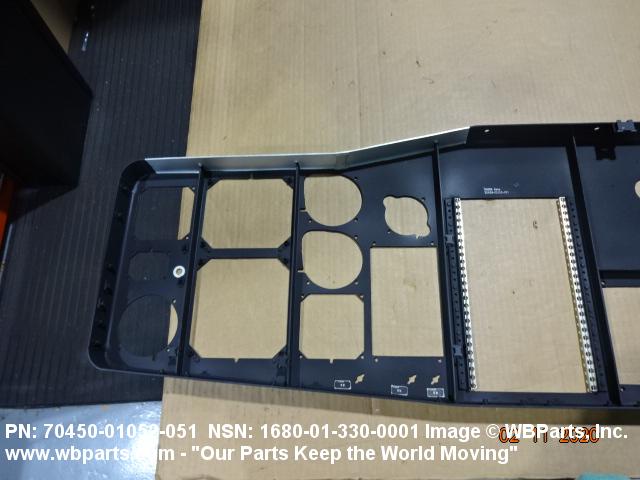

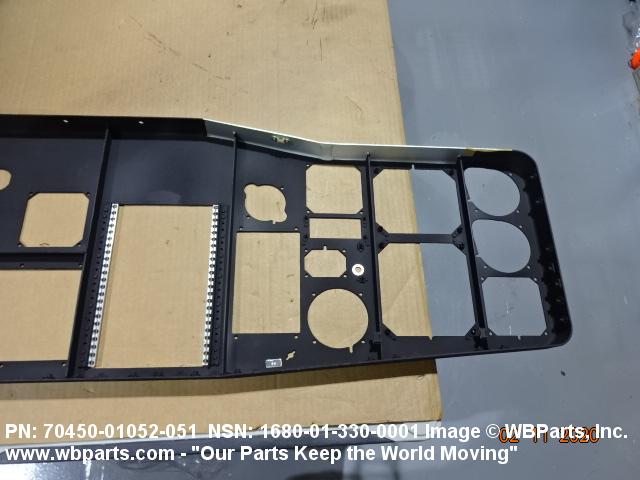

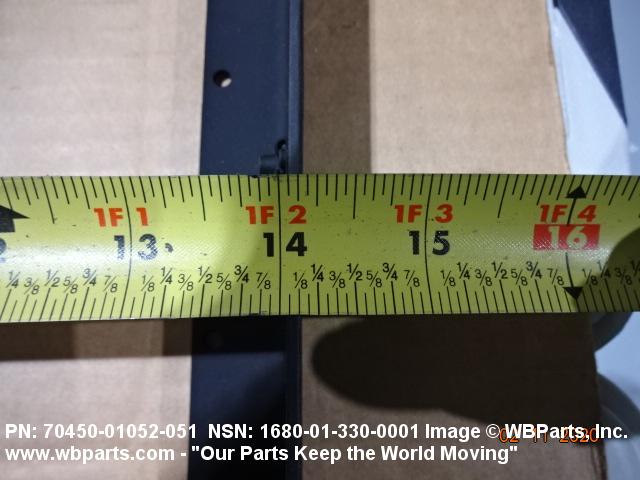

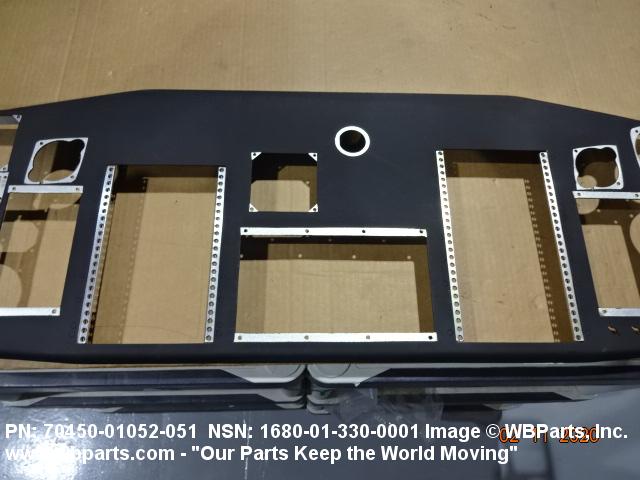

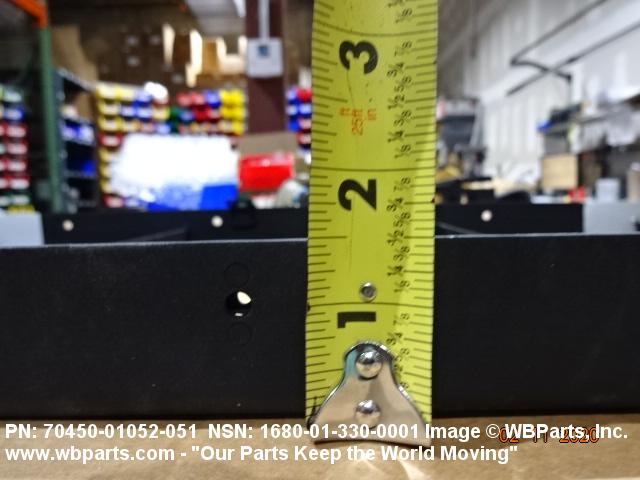

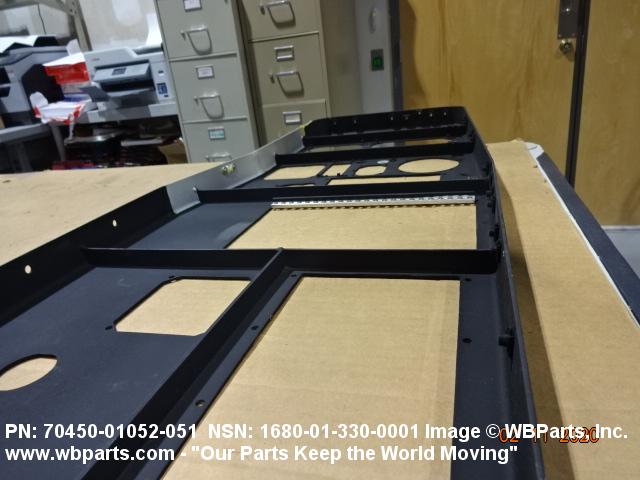

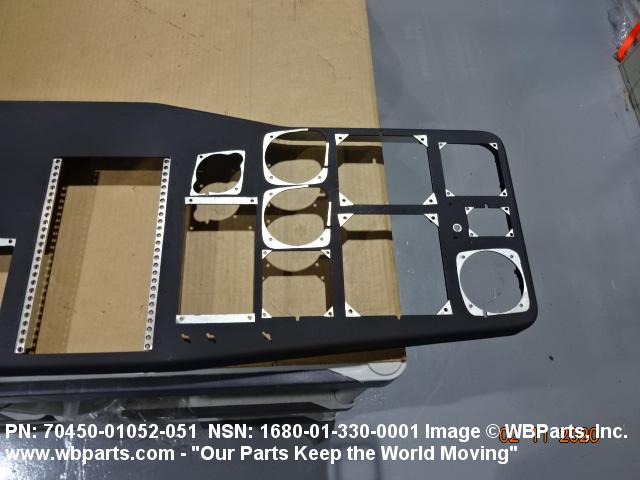

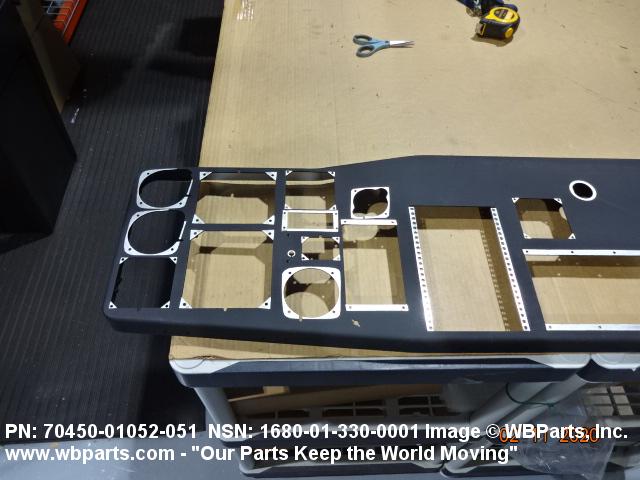

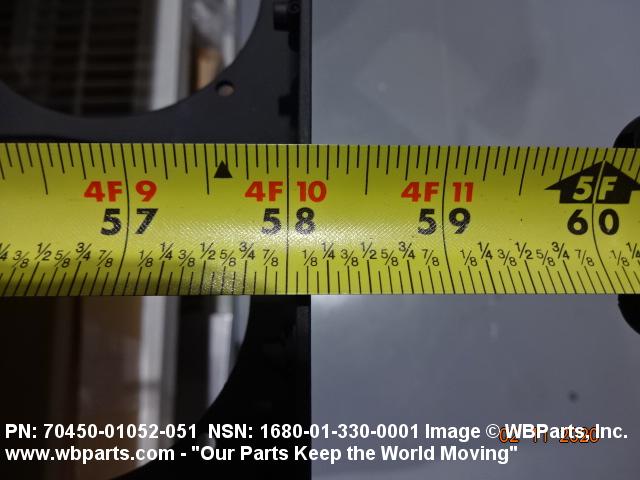

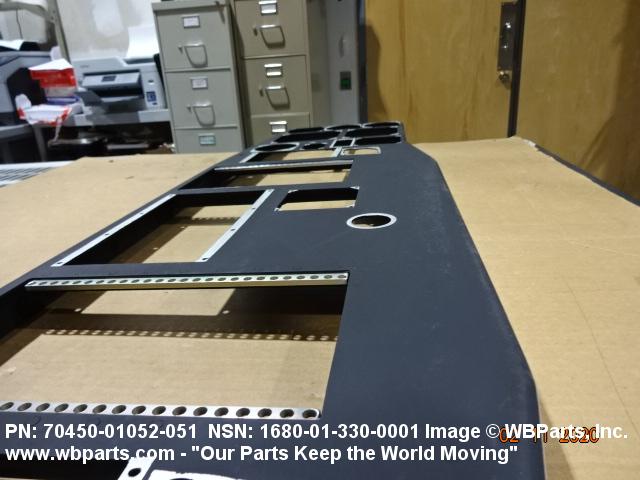

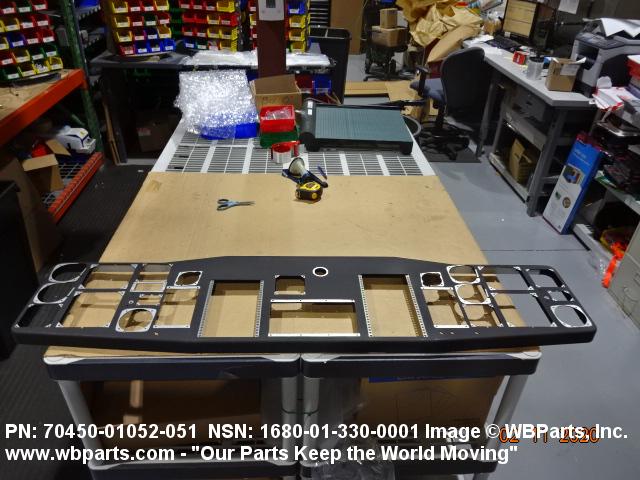

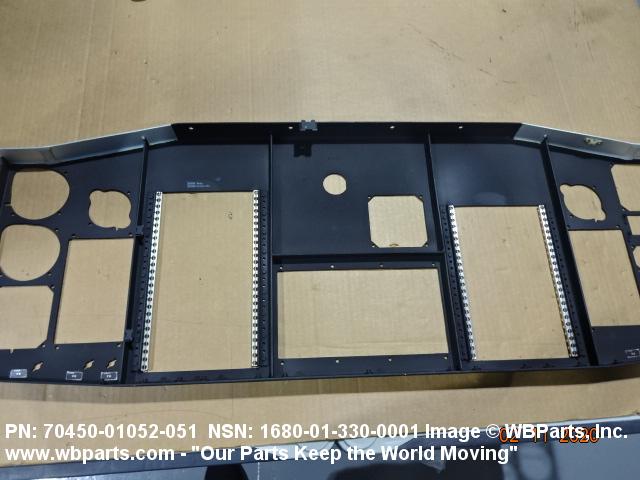

Drawings & Photos | NSN 1680-01-330-0001
Demand History | NSN 1680-01-330-0001
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 70450-01052-051 | 2020-10-281 | 16 | DIBBS |
| 70450-01052-051 | 2020-06-155 | 18 | DIBBS |
| 70450-01052-051 | 2020-05-127 | 22 | DIBBS |
| 70450-01052-051 | 2020-01-21 | 19 | DIBBS |
| 1680-01-330-0001 | 2020-01-17 | 7 | United States |
| 70450-01052-051 | 2019-08-226 | 17 | DIBBS |
| 70450-01052-051 | 2019-06-171 | 26 | DIBBS |
| 70450-01052-051 | 2019-06-170 | 3 | DIBBS |
| 70450-01052-051 | 2019-06-170 | 4 | DIBBS |
| 1680-01-330-0001 | 2018-10-284 | 9 | DIBBS |
| 1680-01-330-0001 | 2018-08-232 | 4 | DIBBS |
| 1680-01-330-0001 | 2018-08-221 | 4 | DIBBS |
| 1680-01-330-0001 | 2018-05-141 | 7 | DIBBS |
| 1680-01-330-0001 | 2018-05-128 | 7 | DIBBS |
| 1680-01-330-0001 | 2018-03-79 | 4 | DIBBS |
| 1680-01-330-0001 | 2018-01-18 | 3 | DIBBS |
| 1680-01-330-0001 | 2018-01-07 | 3 | DIBBS |
| 1680-01-330-0001 | 2017-12-353 | 7 | DIBBS |
| 1680-01-330-0001 | 2017-12-339 | 7 | DIBBS |
Cross Reference | NSN 1680-01-330-0001
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70450-01052-051 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1680-01-330-0001
Related Products | NSN 1680-01-330-0001
Technical Data | NSN 1680-01-330-0001
| Characteristic | Specifications |
|---|---|
| PANEL MATERIAL | METAL |
| MOUNTING CONFIGURATION | TWENTY MOUNTING HOLES WITH MACHINE SCREWS AND FLAT WASHERS |
| SPECIAL FEATURES | CONTAINS THREE NAMEPLATES |
| III END ITEM IDENTIFICATION | USED ON L60 |
Restrictions/Controls & Freight Information | NSN 1680-01-330-0001
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-01-330-0001
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BE | UH-60 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | O | If condemned or economically unserviceable, dispose at organizational level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GC | TG:UH/60A BLACKHAWK |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
