NSN 1680-01-248-3646 BACS38A169A20N, 01-248-3646, 012483646
Product Details | WEBBING STRAP
1680-01-248-3646 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal
Part Alternates: BACS38A169A20N, 1680-01-248-3646, 01-248-3646, 1680012483646, 012483646
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 22 JAN 1987 | 01-248-3646 | 20659 ( STRAP, WEBBING ) |
Drawings & Photos | NSN 1680-01-248-3646
Demand History | NSN 1680-01-248-3646
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-01-248-3646 | 2007-02-01 | 4 | DIBBS |
| 1680-01-248-3646 | 2007-02-01 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-01-248-3646
Technical Data | NSN 1680-01-248-3646
| Characteristic | Specifications |
|---|---|
| MATERIAL | NYLON, MIL-W-4088 |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND LIGHT RESISTANT |
| LENGTH | 20.000 INCHES NOMINAL |
| WIDTH | 1.000 INCHES NOMINAL |
| COLOR | GRAY, CINDER |
| END TYPE | BOTH W/ATTACHMENTS |
| END ATTACHMENT/FASTENING FACILITY | END CLIP GROMMET |
| END CLIP STYLE DESIGNATOR | E4 END CLIP |
| END CLIP MATERIAL | STEEL |
| END CLIP QUANTITY | 1 |
| GROMMET QUANTITY | 1 |
| GROMMET BARREL STYLE DESIGNATOR | F2 TAPERED ROUND TYPE |
| GROMMET FLANGE STYLE DESIGNATOR | G1 FLANGE |

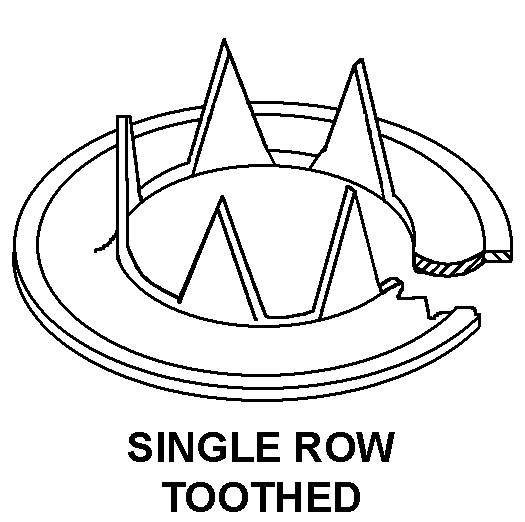

| GROMMET WASHER STYLE DESIGNATOR | H5 SINGLE ROW TOOTHED |
| DISTANCE FROM STRAP END TO FIRST GROMMET HOLE CENTER | 0.530 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 81205-BACS38A MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 1680-01-248-3646
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 179580 | STRAPS LEATHER IMITATION LEATHER |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-01-248-3646
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
