NSN 1680-01-140-3888 10356298 , 74A5420032009, 74A542003-2009
Product Details | ACCESSORY DRIVE-SIDE MOUNT MOUNT-GEARBOX
1680-01-140-3888
Part Alternates: 10356298 , 74A5420032009, 74A542003-2009 , 1680-01-140-3888, 01-140-3888, 1680011403888, 011403888
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
16 | 11 OCT 1982 | 01-140-3888 | 77777 ( ) |
Demand History | NSN 1680-01-140-3888
Part Number | Request Date | QTY | Origin |
---|---|---|---|
74A5420032009 | 2024-10-281 | 2 | us |
1680-01-140-3888 | 2016-11-313 | 7 | DIBBS |
1680-01-140-3888 | 2016-09-262 | 18 | DIBBS |
1680-01-140-3888 | 2016-08-215 | 51 | DIBBS |
1680-01-140-3888 | 2016-07-189 | 68 | DIBBS |
1680-01-140-3888 | 2015-10-300 | 1 | DIBBS-RFPs |
1680-01-140-3888 | 2015-08-235 | 186 | DIBBS |
1680-01-140-3888 | 2015-08-217 | 78 | DIBBS |
1680-01-140-3888 | 2015-07-209 | 110 | DIBBS |
1680-01-140-3888 | 2015-07-205 | 1 | DIBBS-RFPs |
1680-01-140-3888 | 2014-06-152 | 150 | DIBBS |
1680-01-140-3888 | 2014-04-110 | 25 | DIBBS |
1680-01-140-3888 | 2014-03-82 | 33 | DIBBS |
1680-01-140-3888 | 2014-01-06 | 100 | DIBBS |
1680-01-140-3888 | 2014-01-06 | 20 | DIBBS |
1680-01-140-3888 | 2013-12-339 | 22 | DIBBS |
1680-01-140-3888 | 2013-11-327 | 100 | US |
1680-01-140-3888 | 2013-11-325 | 100 | DIBBS |
1680-01-140-3888 | 2012-09-249 | 95 | DIBBS |
1680-01-140-3888 | 2012-07-195 | 20 | DIBBS |
1680-01-140-3888 | 2012-06-167 | 60 | DIBBS |
1680-01-140-3888 | 2012-05-126 | 17 | DIBBS |
1680-01-140-3888 | 2012-03-74 | 100 | DIBBS |
1680-01-140-3888 | 2012-03-69 | 100 | DIBBS |
1680-01-140-3888 | 2011-12-362 | 11 | DIBBS |
1680-01-140-3888 | 2011-10-301 | 80 | DIBBS |
1680-01-140-3888 | 2011-07-196 | 37 | DIBBS |
1680-01-140-3888 | 2011-05-151 | 43 | DIBBS |
1680-01-140-3888 | 2006-07-193 | 53 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 1680-01-140-3888
Related Products | NSN 1680-01-140-3888
Technical Data | NSN 1680-01-140-3888
Characteristic | Specifications |
---|---|

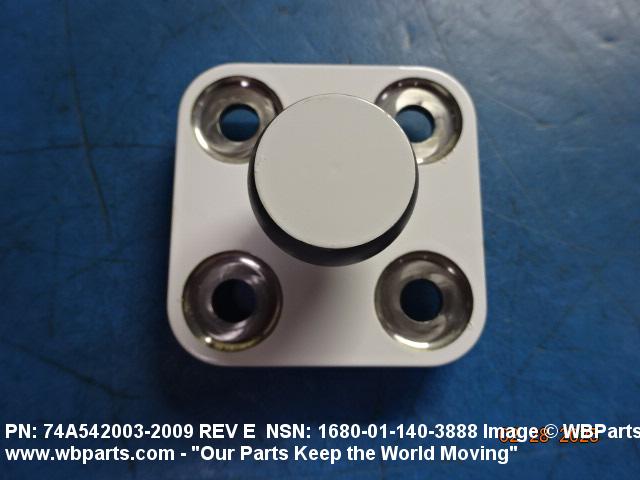

GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL PER AMS 5659; 2.000 IN. NOM W; 2.000 IN. NOM LG; 1.160 IN. O/A THK |
MANUFACTURERS CODE | 76823 |
DESIGN CONTROL REFERENCE | 74A542003-2009 |
Restrictions/Controls & Freight Information | NSN 1680-01-140-3888
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 133300 | MACHINERY/MACHINES NOI |
Less than car load rating | M | 85 |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 671 | unknown |
Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | ||
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-01-140-3888
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
