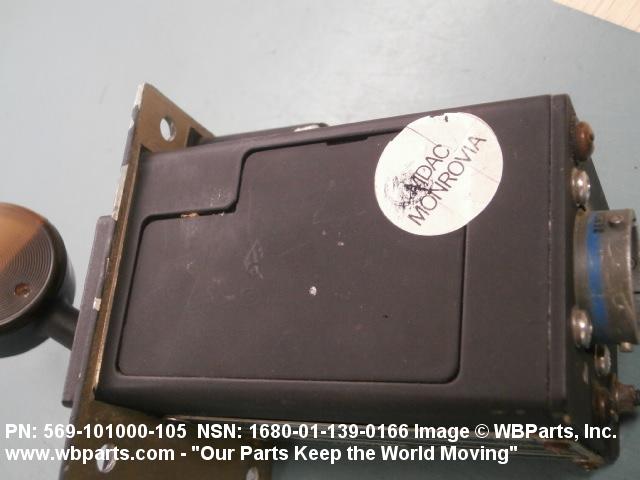

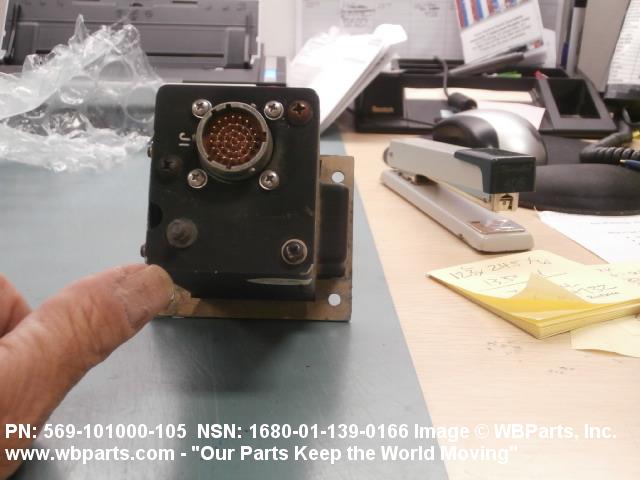

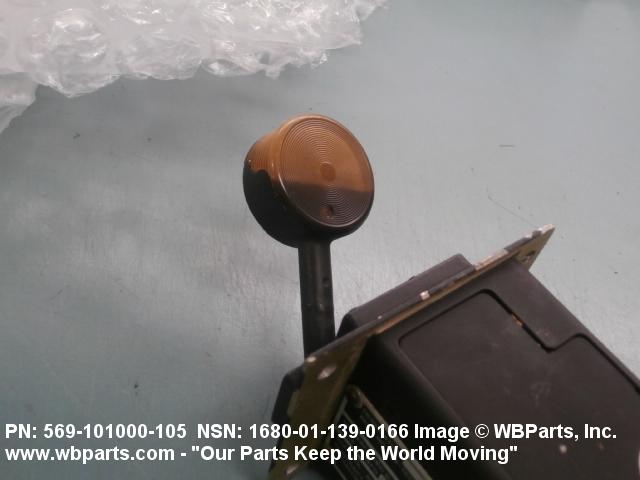

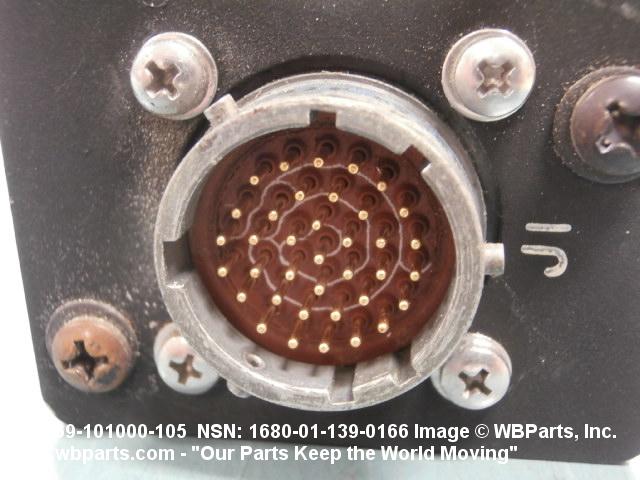

Product Details | LANDING GEAR CONTROL ASSEMBLY

1680-01-139-0166 An item designed to provide the initiating action required to raise and lower the aircraft landing gear.

Part Alternates: 569101000105, 569-101000-105, 1680-01-139-0166, 01-139-0166, 1680011390166, 011390166

Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components

Supply Group (FSG) NSN Assign. NIIN
16 22 SEP 1982 01-139-0166

Drawings & Photos | NSN 1680-01-139-0166


Demand History | NSN 1680-01-139-0166

Part Number Request Date QTY Origin
1680-01-139-0166 2014-02-50 1 United States
1680-01-139-0166 2012-05-145 1 US
1680-01-139-0166 2011-10-286 1 US
1680-01-139-0166 2010-01-22 1 US
1680-01-139-0166 2009-08-229 1 US
1680-01-139-0166 2009-06-166 1 US

Cross Reference | NSN 1680-01-139-0166

Part Number Cage Code Manufacturer
569-101000-105 19133 MCDONNELL DOUGLAS CORP MCDONNELL DOUGLAS AEROSPACE
569-101000-105 76301 BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1680-01-139-0166

Technical Data | NSN 1680-01-139-0166

Characteristic Specifications
SPECIAL FEATURES C/O 10 SCREW,1 GUIDE,1 HOUSING,1 BRACKET, 2 SHIM, 2 PIVOT, 2 COVER, TYPE 1 ADHESIVE, 7 WASHER,1 GROMMET, CLASS 1 INSULATION SLEEVING, 3 NUT, TYPE E24X ELECTRICAL WIRE, SOLDER, GRADE N PRIMER, 1 BEARING, PIN, COTTER PIN, 2 CONNECTOR, 1 TERMINAL, 2 SWITCH, LABEL,ILLUMINATED INDICATOR ASSY, 1 NAME PLATE, 1 SPRING, 1 ARM, 1 CAM, 1 LEVER ASSY, 1 COVER ASSY, 1 TERMINAL BOARD ASSY, ILLUMINATED PANEL
END ITEM IDENTIFICATION F-15 ACFT
MANUFACTURERS CODE 19133
DESIGN CONTROL REFERENCE 569-101000-105

Restrictions/Controls & Freight Information | NSN 1680-01-139-0166

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:DMunitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:7NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 061480 CONTROLLERS/PARTS NOI O/T PLASTIC
Less than car load rating P 77.5
Less than truck load rating P 77.5
Water commodity Code 72D unknown
Originating Activity Code SE San Antonio Air Logistics Center
Kelly AFB, TX 78241-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo 3 Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 1680-01-139-0166

Category Code Description
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation CodeRKSX:AEROSPACE SUPPORT ACCESSORIES
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplyFHZOklahoma City Air Logistics Center
Tinker AFB, OK 73145-5989
AgencyDFDepartment of the Air Force
Service OrganizationLLead Service - 22 (Repairable)
ReparabilityTAF Recoverable Assembly Management System (AFRAMS)
Acquisition Advice CodesCSERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code7NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
