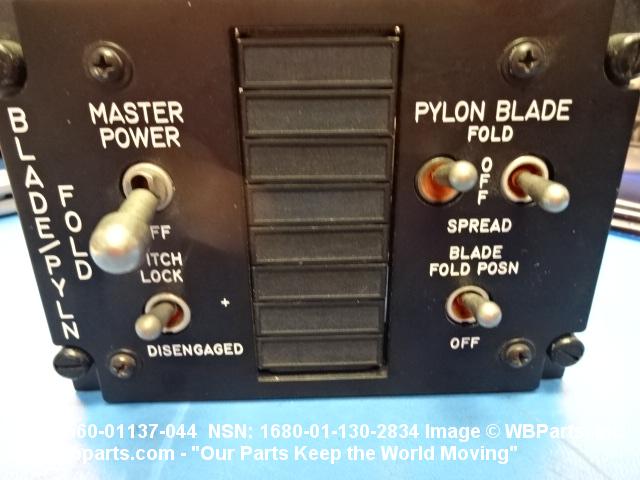

Product Details | BLADE-PYLON PANEL

1680-01-130-2834

Part Alternates: 418351, 41835-1, 65560-01137-041, 65560-01137-044, 1680-01-130-2834, 01-130-2834, 1680011302834, 6556001137044, 6556001137041, 011302834

Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components

Supply Group (FSG) NSN Assign. NIIN
16 19 APR 1982 01-130-2834

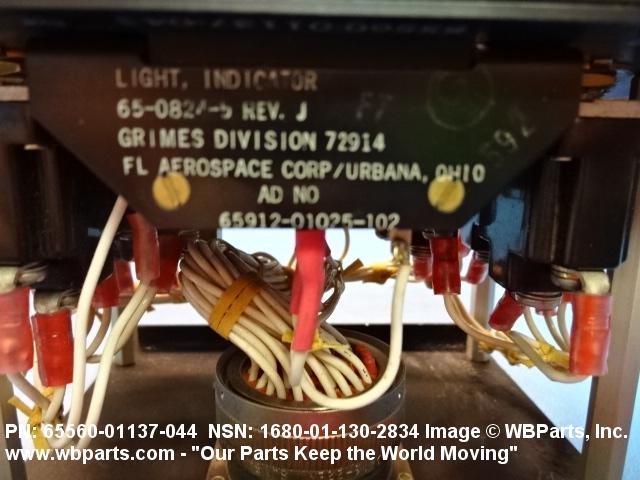

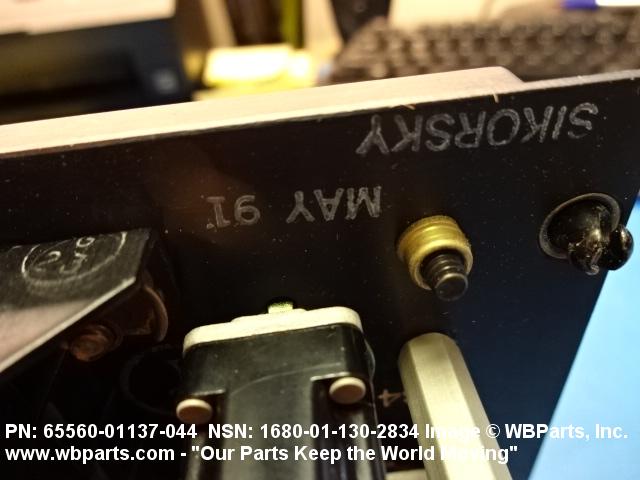

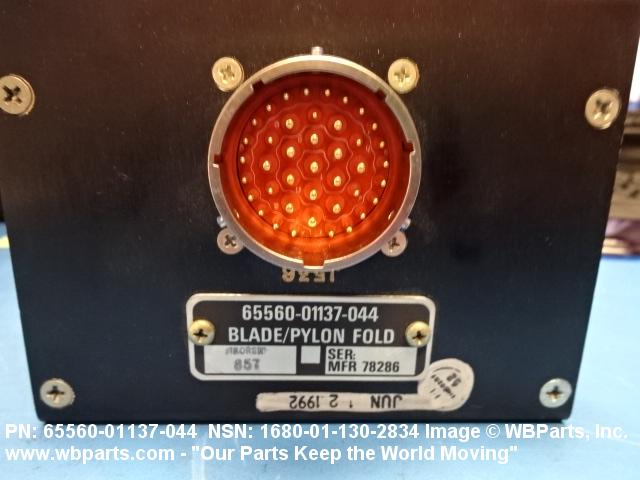

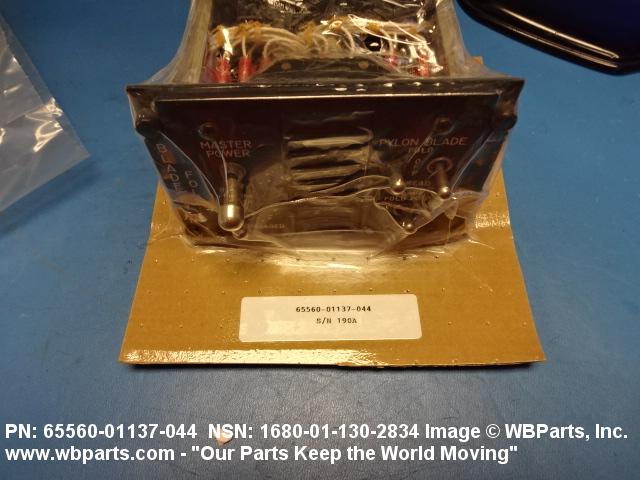

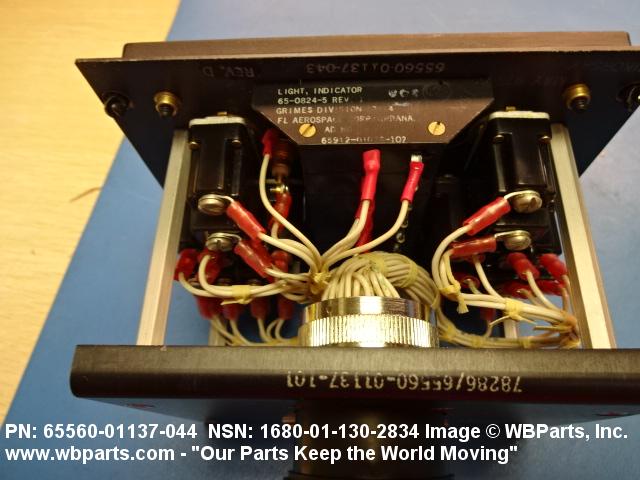

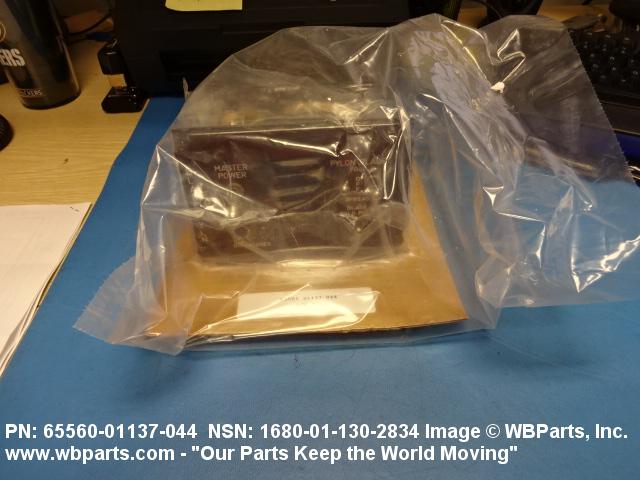

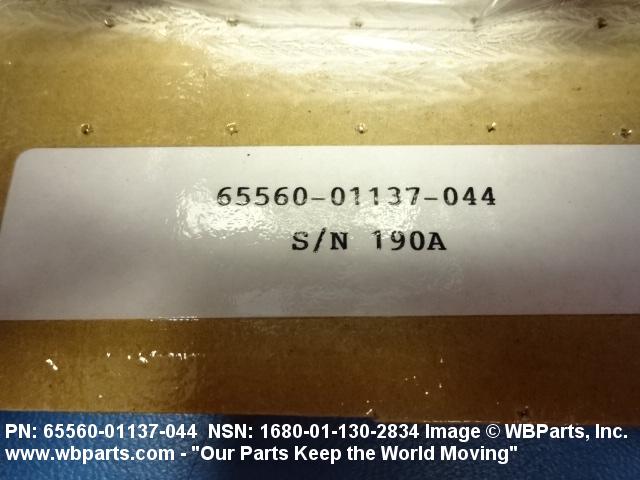

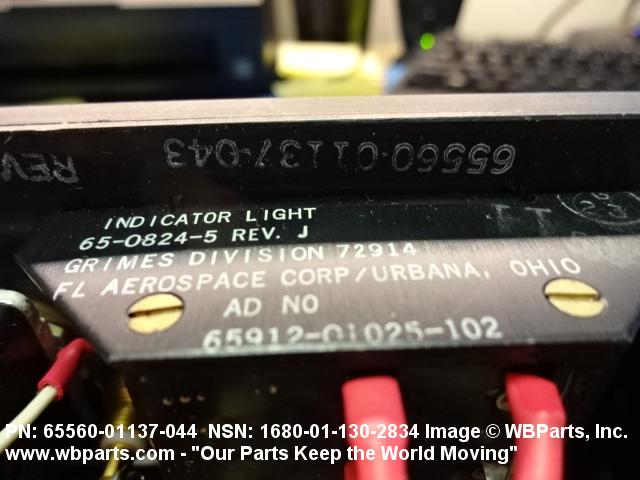

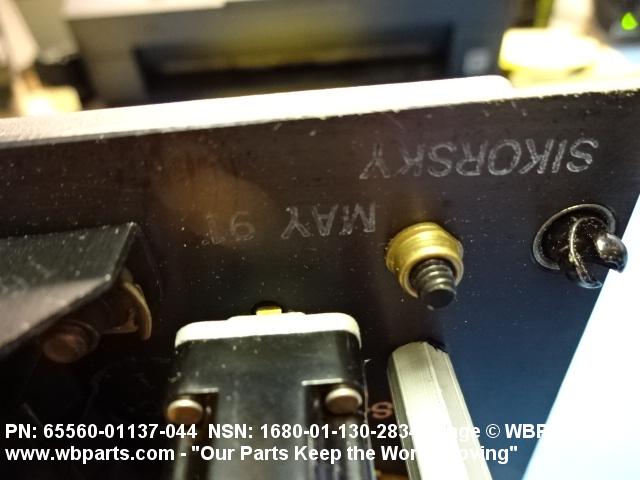

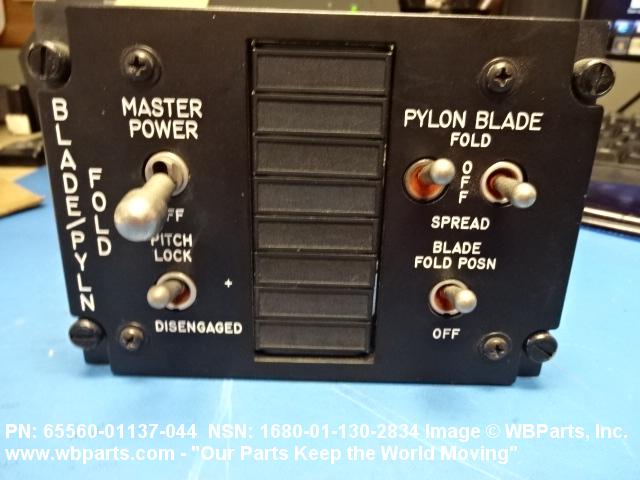

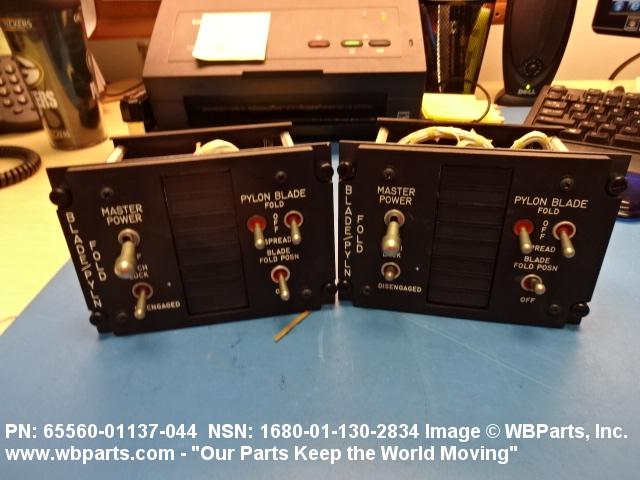

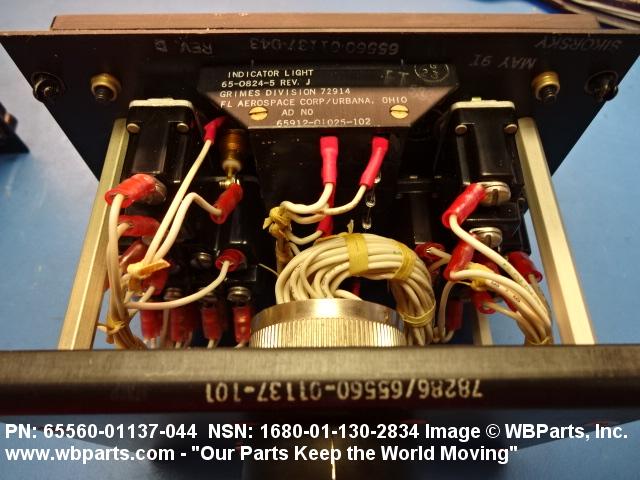

Drawings & Photos | NSN 1680-01-130-2834


Demand History | NSN 1680-01-130-2834

Part Number Request Date QTY Origin
65560-01137-044 2020-07-191 25 DIBBS
65560-01137-044 2020-04-113 1 DIBBS
65560-01137-044 2020-04-103 16 DIBBS
65560-01137-044 2019-05-133 2 DIBBS
65560-01137-044 2019-04-101 3 DIBBS
1680-01-130-2834 2018-11-312 3 DIBBS
1680-01-130-2834 2018-07-192 8 DIBBS
1680-01-130-2834 2018-05-150 1 DIBBS-RFPs
1680-01-130-2834 2018-02-51 3 DIBBS
1680-01-130-2834 2018-02-37 3 DIBBS
1680-01-130-2834 2017-10-296 12 DIBBS
1680-01-130-2834 2017-04-114 3 United States
1680-01-130-2834 2017-02-37 3 DIBBS
1680-01-130-2834 2017-01-25 3 DIBBS
1680-01-130-2834 2016-10-288 3 DIBBS
1680-01-130-2834 2016-10-277 3 DIBBS

Cross Reference | NSN 1680-01-130-2834

Part Number Cage Code Manufacturer
41835-1 3DYM9 L-3 COMMUNICATIONS INTEGRATED SYSTEMS L.P.
41835-1 96916 COMMANDING OFFICER NAVAL AVIATION DEPOT
65560-01137-041 78286 SIKORSKY AIRCRAFT CORPORATION
65560-01137-044 78286 SIKORSKY AIRCRAFT CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1680-01-130-2834

Technical Data | NSN 1680-01-130-2834

Characteristic Specifications
GENERAL CHARACTERISTICS ITEM DESCRIPTION 5.750 IN. LG,4.125 IN. W
III END ITEM IDENTIFICATION AIRCRAFT MODEL CH-53E
MANUFACTURERS CODE 78286
DESIGN CONTROL REFERENCE 65560-01137-044

Restrictions/Controls & Freight Information | NSN 1680-01-130-2834

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 061700 ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating W Rating Variable
Less than truck load rating W Rating Variable
Water commodity Code 658 unknown
Originating Activity Code KE Naval ICP
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 1680-01-130-2834

Category Code Description
Cognizance Codes3BNavy-owned stocks of field level repairable DLA material
Naval Inventory Control Point, Mechanicsburg
Special Material IDLUHELICOPTERS(CH-53E)
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
ReparabilityDField Level Reparables
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
