NSN 1680-01-093-2396 PM226042, PM22604-2, 70400-01260-102
Product Details | AIRCRAFT CONTROLLER GRIP ASSEMBLY

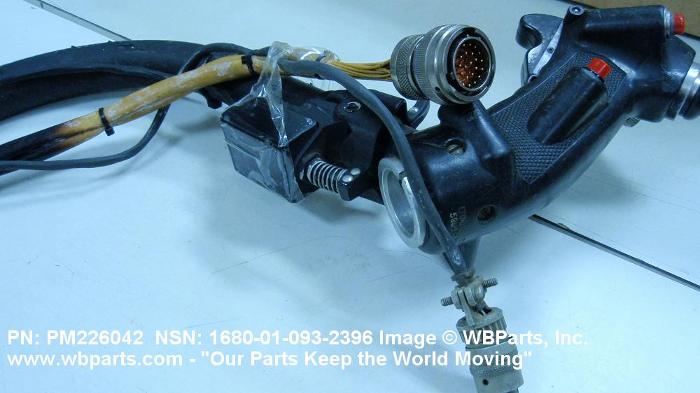

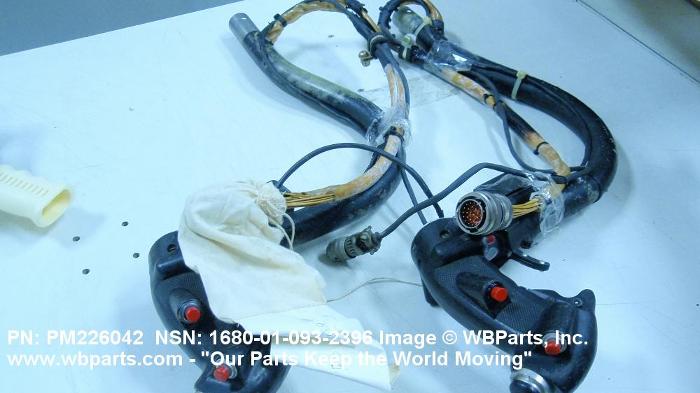

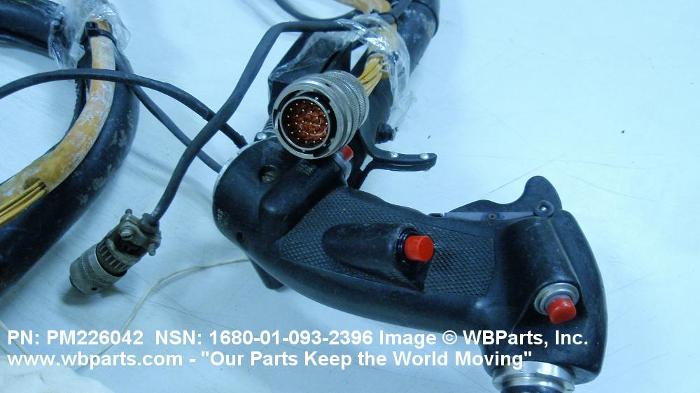

1680-01-093-2396 A hand grip, usually of pistol grip design, made of rubber, plastic or other material and designed to be mounted on an aircraft control stick to provide a formed gripping surface. It incorporates electrical controls, such as resistor(s) and/or switches for remotely actuating associated equipment, such as servos, armament, trim tabs, and the like. Excludes SWITCH, TRIGGER and other multiapplication switches.
Part Alternates: PM226042, PM22604-2, 70400-01260-102, 1680-01-093-2396, 01-093-2396, 1680010932396, 7040001260102, 010932396
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 12 APR 1980 | 01-093-2396 | 19339 ( GRIP ASSEMBLY, CONTROLLER, AIRCRAFT ) |
Drawings & Photos | NSN 1680-01-093-2396
Demand History | NSN 1680-01-093-2396
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-01-093-2396 | 2019-07-186 | 1 | DIBBS-RFPs |
| 1680-01-093-2396 | 2018-04-102 | 1 | US |
| 1680-01-093-2396 | 2017-06-153 | 2 | United States |
| 1680-01-093-2396 | 2017-01-07 | 31 | US |
| 1680-01-093-2396 | 2016-07-196 | 31 | DIBBS |
| 1680-01-093-2396 | 2014-11-327 | 28 | DIBBS |
| 7040-00-126-0102 | 2014-10-290 | 3 | United States |
| 1680-01-093-2396 | 2014-09-246 | 30 | DIBBS |
| 1680-01-093-2396 | 2014-09-246 | 12 | DIBBS |
| 1680-01-093-2396 | 2014-06-155 | 24 | DIBBS |
| PM226042 | 2013-02-35 | 2 | United States |
| 1680-01-093-2396 | 2009-08-231 | 50 | DIBBS |
| 1680-01-093-2396 | 2009-07-210 | 42 | DIBBS |
| 1680-01-093-2396 | 2009-05-146 | 35 | DIBBS |
| PM226042 | 2008-11-324 | 10 | United States |
| PM226042 | 2008-09-247 | 4 | United States |
| PM226042 | 2008-06-171 | 4 | United States |
| 1680-01-093-2396 | 2008-04-100 | 13 | DIBBS |
| 1680-01-093-2396 | 2008-02-39 | 2 | Canada |
| 1680-01-093-2396 | 2008-01-22 | 11 | DIBBS |
