NSN 1680-00-909-8099 R356501, R3565011, R356501-1
Product Details | MAGNETIC BRAKE
1680-00-909-8099
Part Alternates: R356501, R3565011, R356501-1, R460M153, R460M15-3, 2040013763, 204-001-376-3, 1680-00-909-8099, 00-909-8099, 1680009098099, 009098099
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1960 | 00-909-8099 | 77777 ( ) |

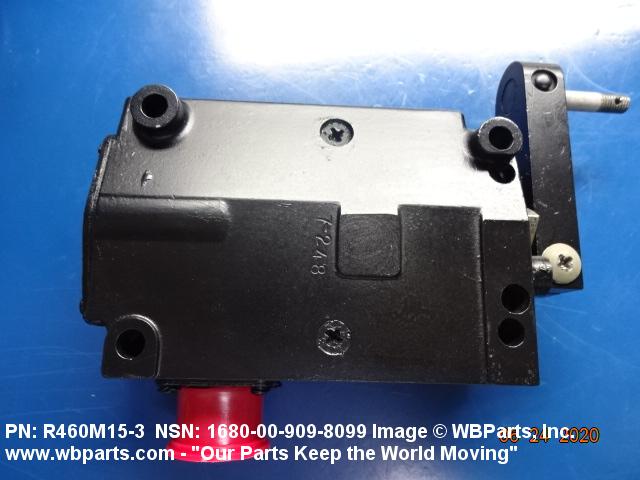

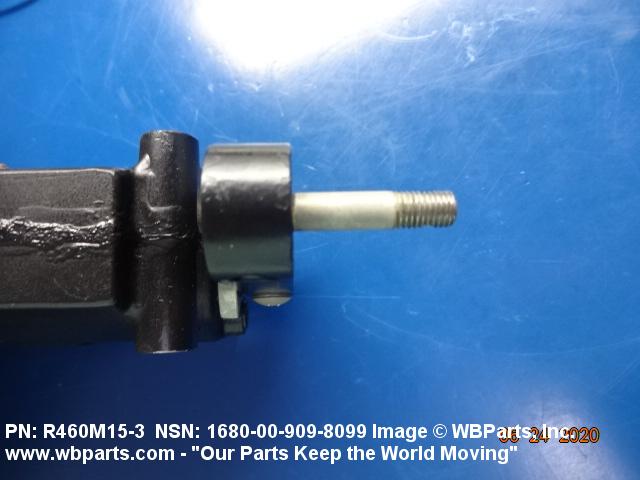

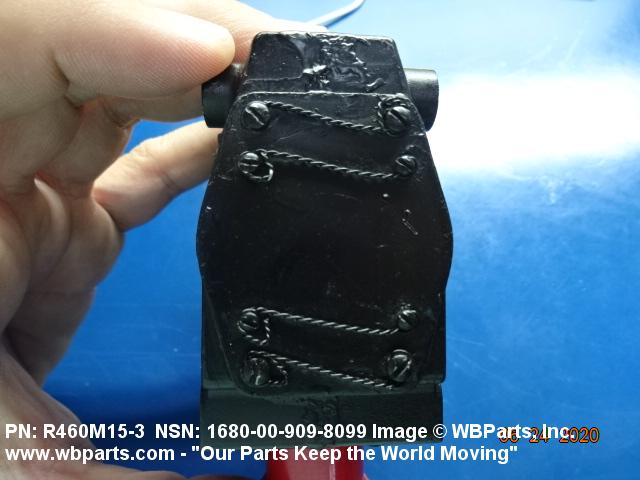

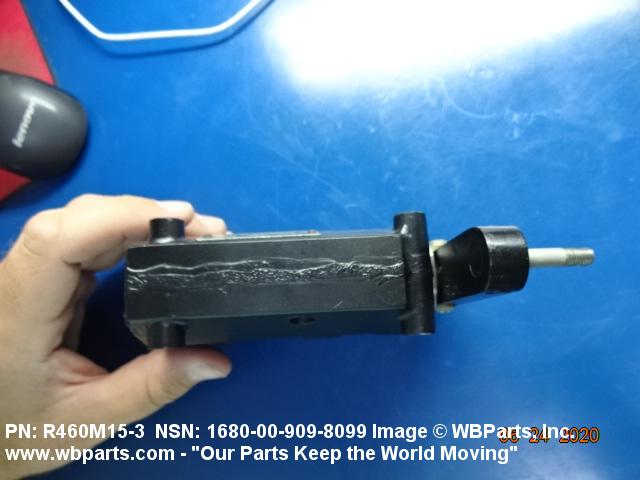

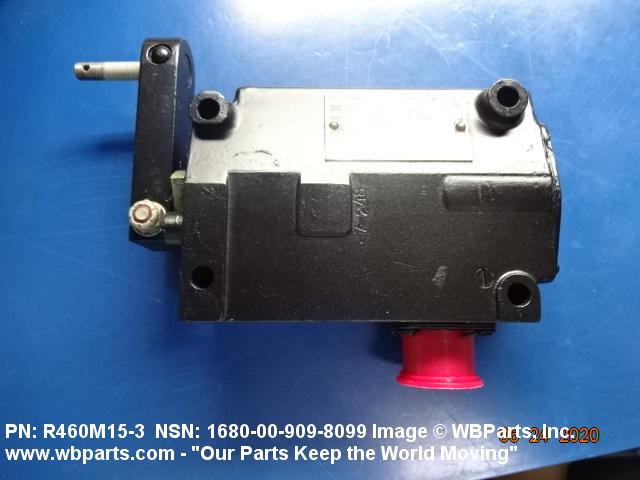

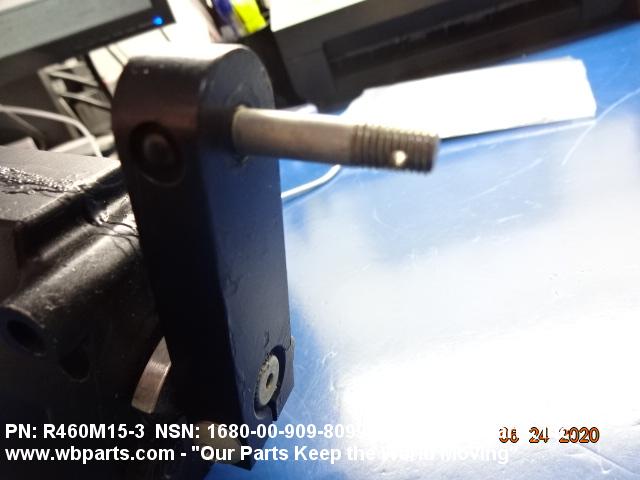

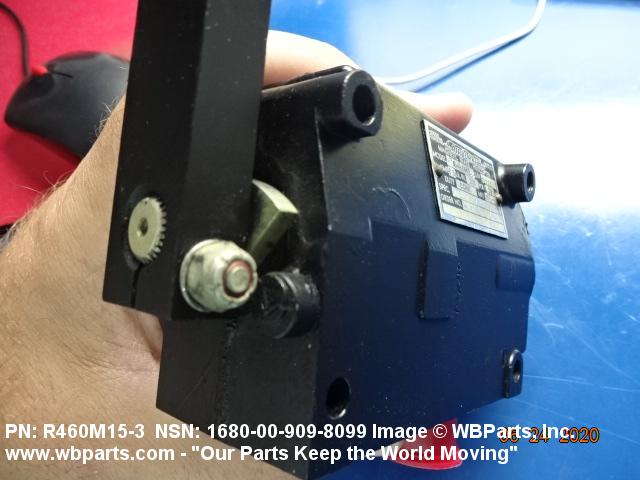

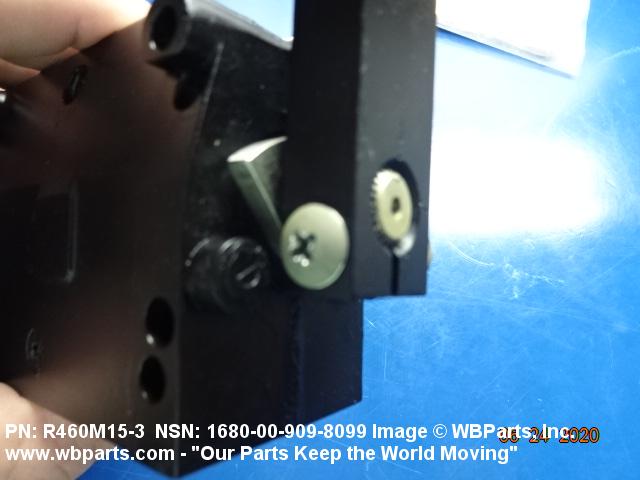

Drawings & Photos | NSN 1680-00-909-8099
Demand History | NSN 1680-00-909-8099
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| R460M15-3 | 2023-05-151 | 2 | Philippines |
| R460M153 | 2020-05-143 | 1 | Philippines |
| R460M153 | 2020-05-143 | 1 | Philippines |
| 1680-00-909-8099 | 2020-05-143 | 1 | Philippines |
| R460M153 | 2020-02-50 | 1 | Philippines |
| 1680-00-909-8099 | 2018-10-275 | 2 | Lebanon |
| R460M153 | 2016-04-96 | 2 | Philippines |
| 2040013763 | 2008-05-138 | 15 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1680-00-909-8099
Related Products | NSN 1680-00-909-8099
Technical Data | NSN 1680-00-909-8099
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL,COMP 4140 BODY,TORQUE 200 IN-LBS WITH BRAKE ON,5 IN-LBS WITH BRAKE OFF,VOLTAGE,14 TO 32 VOLTS DC CONTINUOUS DUTY,28.0 VOLTS NOM AND 0.5AMPS MAX,CONNECTOR NO. 3102A-14S-9F,SOLENOID NO. MIL-S-4040 TY 1 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY SOURCE CONTROL DWG NO. 204-001-376-3 |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 204-001-376-3 |
| MANUFACTURERS CODE | 81039 |
| DESIGN CONTROL REFERENCE | R460M15-3 |
Restrictions/Controls & Freight Information | NSN 1680-00-909-8099
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 1680-00-909-8099
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
