NSN 1680-00-831-4166 K63310313, K633103-13, 00-831-4166
Product Details | DOOR HANDLE
1680-00-831-4166 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: K63310313, K633103-13, 1680-00-831-4166, 00-831-4166, 1680008314166, 008314166
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 13 SEP 1967 | 00-831-4166 | 18073 ( HANDLE, DOOR ) |

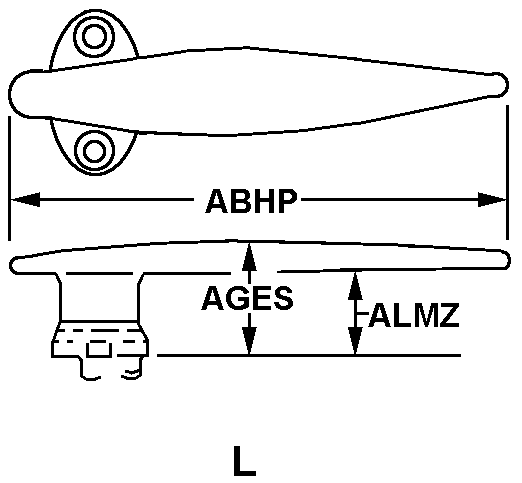

Drawings & Photos | NSN 1680-00-831-4166
Cross Reference | NSN 1680-00-831-4166
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K633103-13 | 84955 | KAMAN AEROSPACE CORPORATION DBA AIR VEHICLES & MRO DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-00-831-4166
Technical Data | NSN 1680-00-831-4166
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| STYLE DESIGNATOR | C35 L |
| OVERALL LENGTH | 5.310 INCHES NOMINAL |
| HANDLE HEIGHT | 1.730 INCHES NOMINAL |
| HANDLE CLEARANCE | 1.250 INCHES NOMINAL |
| III FSC APPLICATION DATA | DOOR,PILOT AND CO-PILOT CARGO,AIRCRAFT |
| MANUFACTURERS CODE | 84955 |
| DESIGN CONTROL REFERENCE | K633103-13 |
Restrictions/Controls & Freight Information | NSN 1680-00-831-4166
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-00-831-4166
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
