NSN 1680-00-633-1715 D1756223, D17562-23, D184795
Product Details | WINDSHIELD WIPER ARM
1680-00-633-1715 An arm, usually metal, designed to mount the BLADE, WINDSHIELD WIPER and transmit motion from the driving member.20316800049Miscellaneous Aircraft Accessories and Components20900039Miscellaneous Ship and Marine Equipment25400035Vehicular Furniture and Accessories
Part Alternates: D1756223, D17562-23, D184795, D18479-5, 14-98479-05, 69532811, 695328-11, 1680-00-633-1715, 00-633-1715, 1680006331715, 149847905, 006331715
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-633-1715 | 10092 ( ARM, WINDSHIELD WIPER ) |

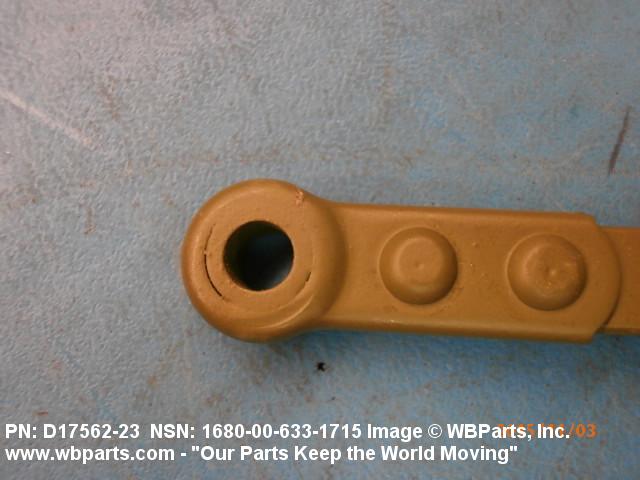

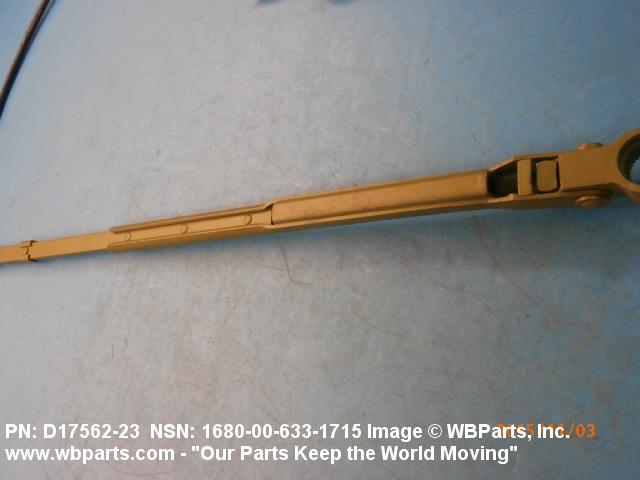

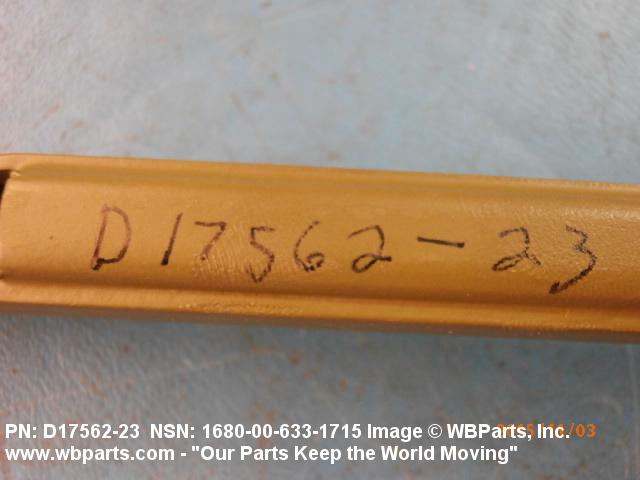

Drawings & Photos | NSN 1680-00-633-1715
Demand History | NSN 1680-00-633-1715
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-633-1715 | 2018-03-60 | 2 | US |
| 1680-00-633-1715 | 2015-10-299 | 1 | United States |
| 1680-00-633-1715 | 2015-10-299 | 1 | United States |
| D1756223 | 2014-06-175 | 2 | United States |
Cross Reference | NSN 1680-00-633-1715
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14-98479-05 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| 695328-11 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| D17562-23 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| D18479-5 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1680-00-633-1715
Related Products | NSN 1680-00-633-1715
Technical Data | NSN 1680-00-633-1715
| Characteristic | Specifications |
|---|---|
| PAINTED FEATURE | INCLUDED |
| COLOR | BLACK |
| ADJUSTABILITY | NONADJUSTABLE |

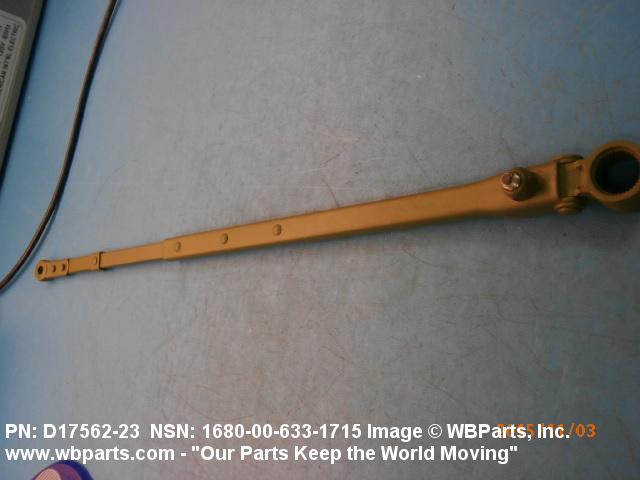

| ARM LENGTH | 15.312 INCHES NOMINAL |
| MOUNTING POSITION | UNIVERSAL |
| DRIVE ADAPTER EXTENSION | NOT INCLUDED |
| BLADE MOUNTING METHOD | PIN |

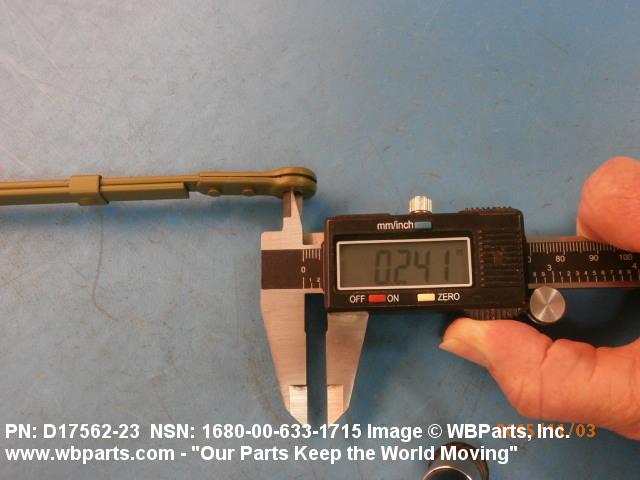

| PIN MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |

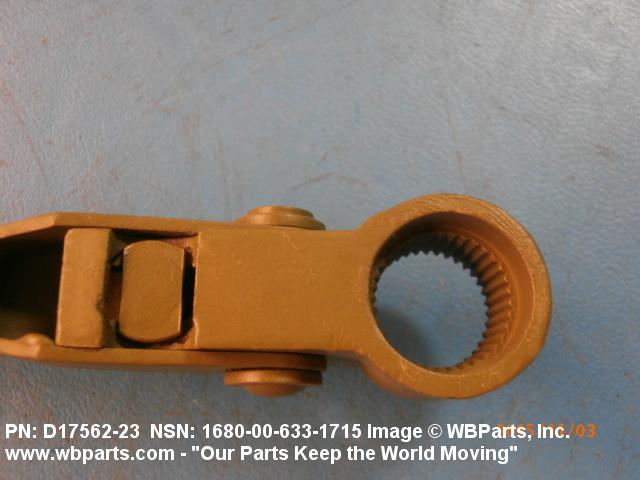

| DRIVE END MOUNTING TYPE | SPLINE |
| SPLINE QUANTITY | 50 |

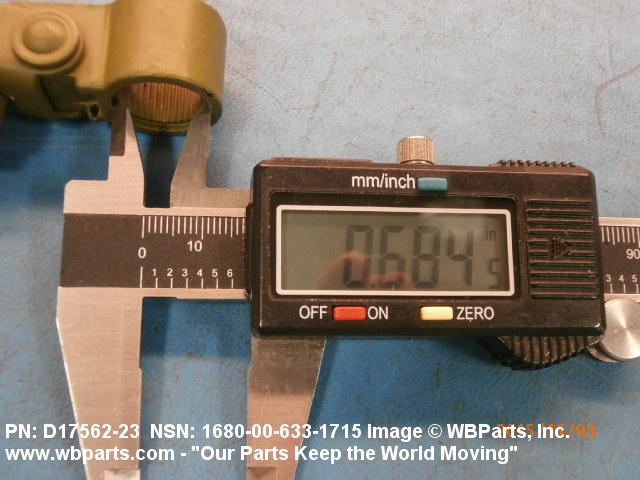

| SPLINE MAJOR DIAMETER | 0.627 INCHES NOMINAL |

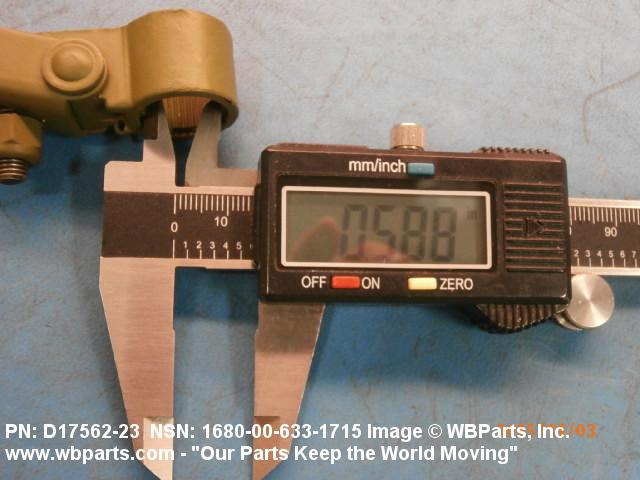

| SPLINE MINOR DIAMETER | 0.584 INCHES NOMINAL |
| DRIVE END DRIVE SHAFT MOUNTING HOLE | INCLUDED |
| HOLE DIAMETER | 0.438 INCHES NOMINAL |
| DRIVE END LOCKING DEVICE | INCLUDED |
| LOCKING DEVICE TYPE | SERRATED CLIP W/TIGHTENING SCREW |
| DRIVE SHAFT ADAPTER | NOT INCLUDED |
| III FSC APPLICATION DATA | MISCELLANEOUS ACFT ACCESSORIES AND COMPONENTS |
| MANUFACTURERS CODE | 0AHP5 |
| DESIGN CONTROL REFERENCE | 14-98479-05 |
Restrictions/Controls & Freight Information | NSN 1680-00-633-1715
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197720 | WINDSHIELD WIPER ARMS BLADES/MTRS |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-00-633-1715
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
