NSN 1680-00-510-4085 4041655, 7839338-01, 7839338101
Product Details | BELL CRANK
1680-00-510-4085 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 4041655, 7839338-01, 7839338101, 7839338-101, 1680-00-510-4085, 00-510-4085, 1680005104085, 005104085, 783933801
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-510-4085 | 22321 ( BELL CRANK ) |
Drawings & Photos | NSN 1680-00-510-4085
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1680-00-510-4085
Related Products | NSN 1680-00-510-4085
Technical Data | NSN 1680-00-510-4085
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |

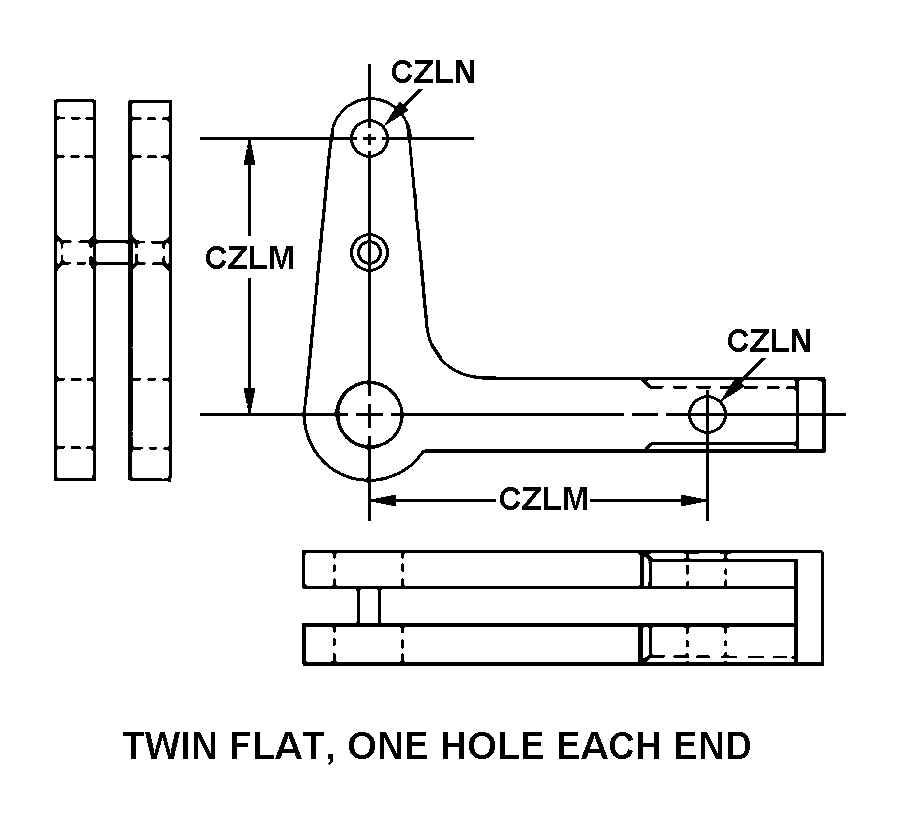

| STYLE DESIGNATOR | A11 TWIN FLAT, ONE HOLE EACH END |
| CENTER TO CENTER DISTANCE BETWEEN FULCRUM AND ARM END HOLE/SLOT/BALL | 2.750 INCHES NOMINAL 1ST END 2.950 INCHES NOMINAL 2ND END |
| END HOLE/BALL DIAMETER | 0.250 INCHES NOMINAL 1ST END |
| BORE LENGTH | 1.400 INCHES NOMINAL |
| BORE DIAMETER | 1.750 INCHES NOMINAL |
| FSC APPLICATION DATA | DOOR RETRACTION MAIN GEAR |
| MANUFACTURERS CODE | 98750 |
| DESIGN CONTROL REFERENCE | 7839338-01 |
