NSN 1680-00-461-6062 4F73151101B, 4F73151-101B, 00-461-6062
Product Details | BELL CRANK
1680-00-461-6062 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 4F73151101B, 4F73151-101B, 1680-00-461-6062, 00-461-6062, 1680004616062, 004616062
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 02 MAY 1969 | 00-461-6062 | 22321 ( BELL CRANK ) |
Drawings & Photos | NSN 1680-00-461-6062
Demand History | NSN 1680-00-461-6062
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-461-6062 | 2014-05-139 | 44 | DIBBS |
| 1680-00-461-6062 | 2013-11-322 | 47 | DIBBS |
| 1680-00-461-6062 | 2011-09-269 | 47 | DIBBS |
| 1680-00-461-6062 | 2010-11-312 | 21 | DIBBS |
| 1680-00-461-6062 | 2010-09-253 | 15 | DIBBS |
| 1680-00-461-6062 | 2010-06-172 | 4 | DIBBS |
| 1680-00-461-6062 | 2008-06-175 | 16 | DIBBS |
| 1680-00-461-6062 | 2007-03-64 | 55 | DIBBS |
Cross Reference | NSN 1680-00-461-6062
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4F73151-101B | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1680-00-461-6062
Related Products | NSN 1680-00-461-6062
Technical Data | NSN 1680-00-461-6062
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |

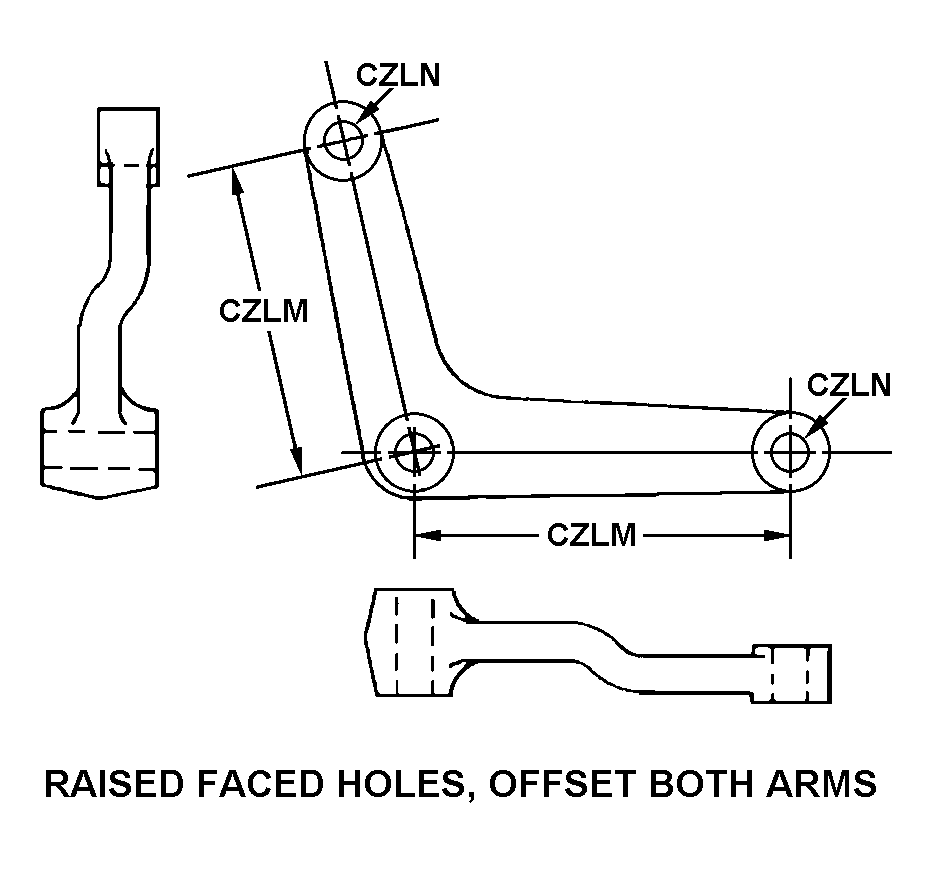

| STYLE DESIGNATOR | A21 RAISED FACED HOLES, OFFSET BOTH ARMS |
| CENTER TO CENTER DISTANCE BETWEEN FULCRUM AND ARM END HOLE/SLOT/BALL | 1.890 INCHES NOMINAL 1ST END 4.500 INCHES NOMINAL 2ND END |
| END HOLE/BALL DIAMETER | 0.251 INCHES MINIMUM AND 0.258 INCHES MAXIMUM 1ST END 0.315 INCHES MINIMUM AND 0.322 INCHES MAXIMUM 2ND END |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 4F73151-101B |
Restrictions/Controls & Freight Information | NSN 1680-00-461-6062
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 130400 | STARTING/CRANKING SYSTMS I/C ENG |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-00-461-6062
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | UC | TG:C-5A GALAXY |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
