Product Details | POWER PACK CHECK VALVE PISTON

1680-00-435-5414

Part Alternates: 30001435, 1680-00-435-5414, 00-435-5414, 1680004355414, 004355414

Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components

Supply Group (FSG) NSN Assign. NIIN
16 12 FEB 1972 00-435-5414

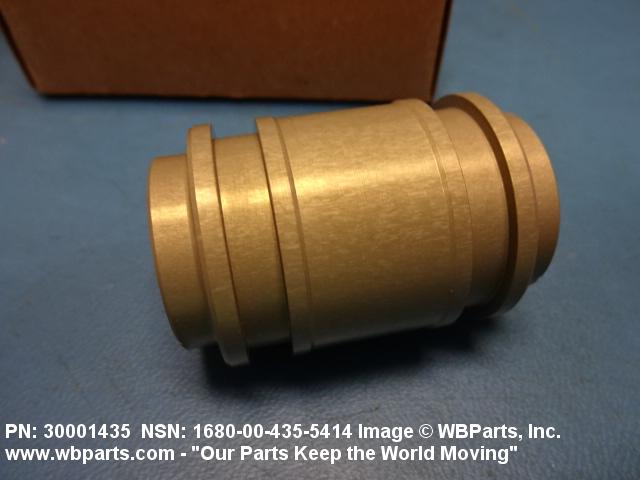

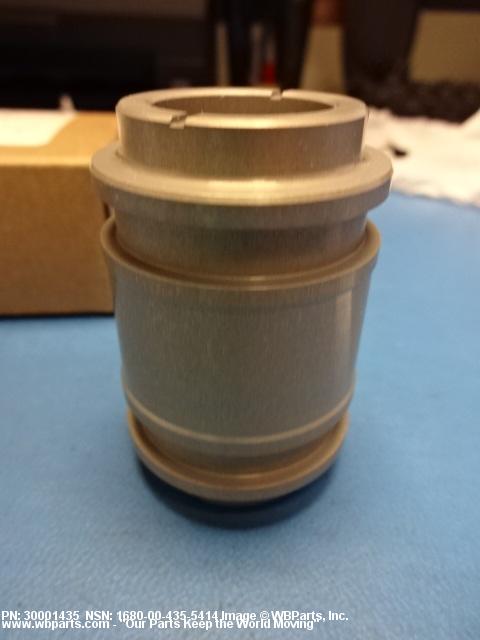

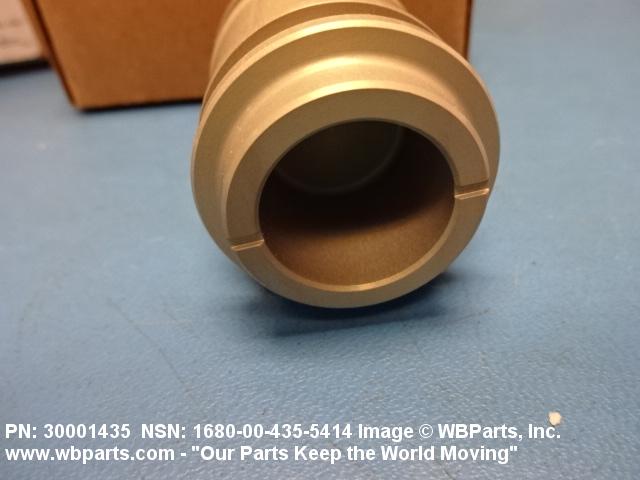

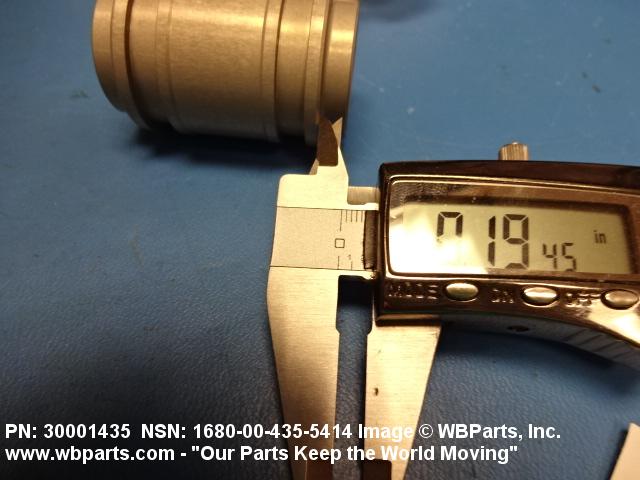

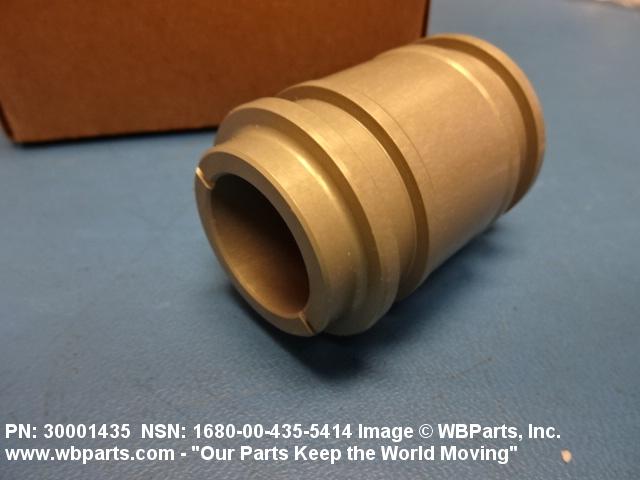

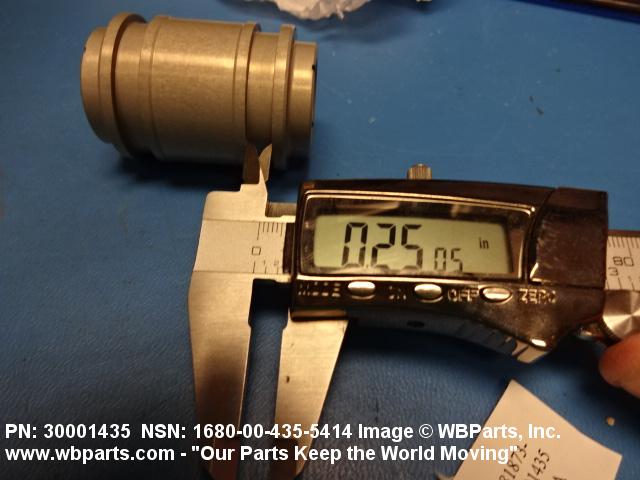

Drawings & Photos | NSN 1680-00-435-5414


Demand History | NSN 1680-00-435-5414

Part Number Request Date QTY Origin
1680-00-435-5414 2017-02-32 5 United States
1680-00-435-5414 2016-11-334 5 DIBBS

Cross Reference | NSN 1680-00-435-5414

Part Number Cage Code Manufacturer
30001435 81873 WOODWARD HRT, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1680-00-435-5414

Technical Data | NSN 1680-00-435-5414

Characteristic Specifications

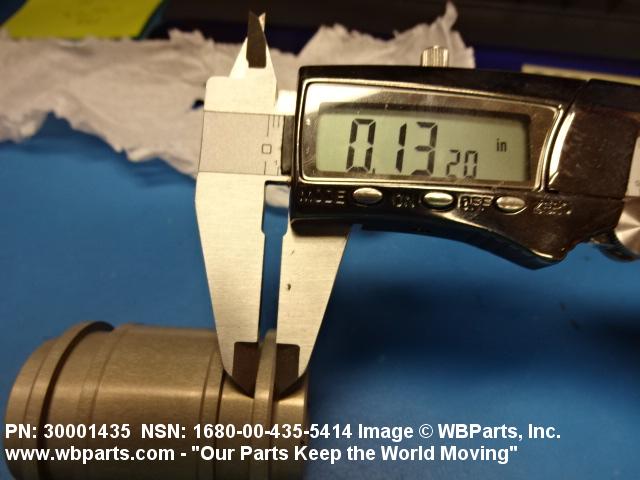

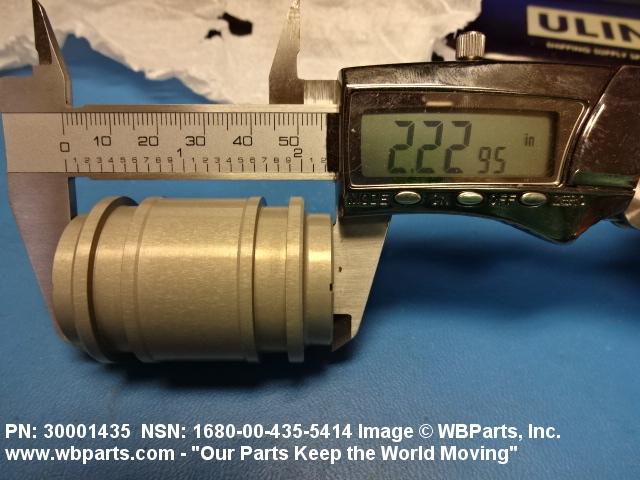

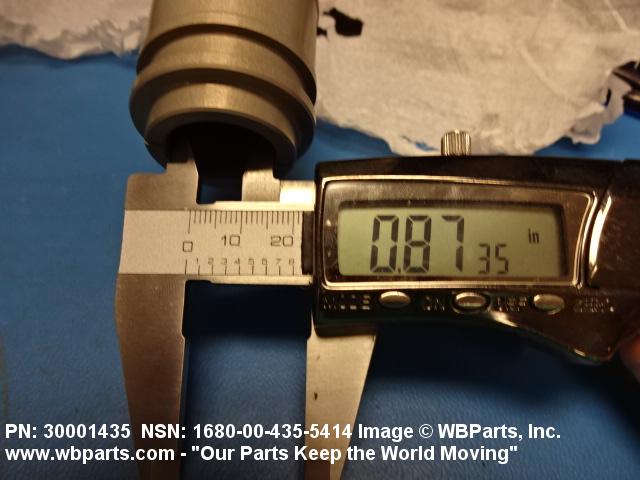

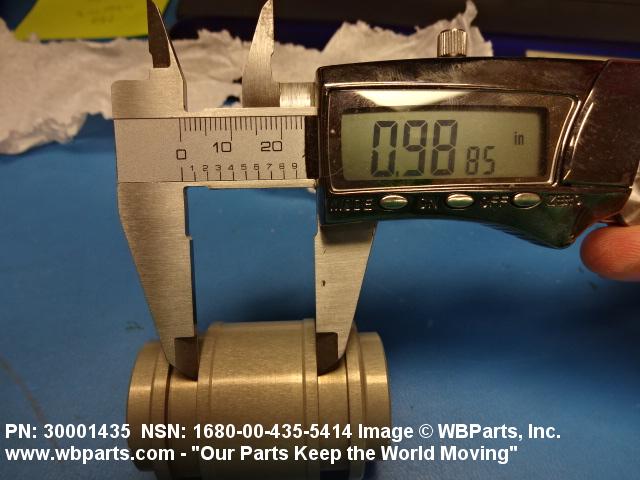

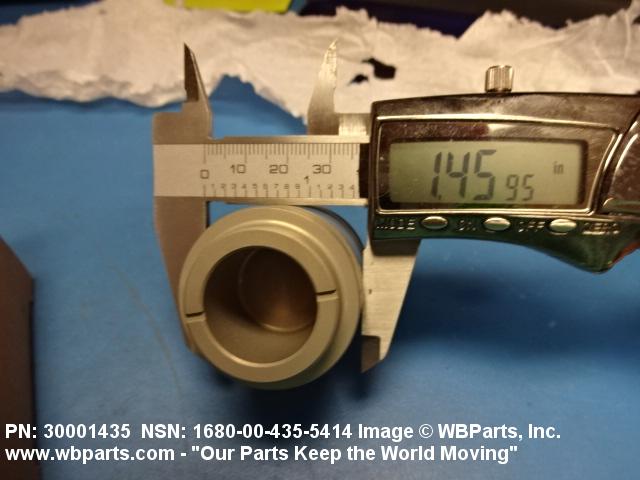

GENERAL CHARACTERISTICS ITEM DESCRIPTION ALUMINUM ALLOY,QQ-A-225/6,GRAY ANODIZE,2.230 IN. LG,1.490IN. MIN,1.491 IN. MAX O/A DIA,32 MICROINCH FINISH,0.874 IN. MIN,0.876 IN. MAX ID,63 MICROINCH FINSIH,2 GROOVES 0.250 IN. W,0.175 IN. MIN,0.178 IN. MAX DEEP
MANUFACTURERS CODE 81873
DESIGN CONTROL REFERENCE 30001435

Restrictions/Controls & Freight Information | NSN 1680-00-435-5414

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 671 unknown
Originating Activity Code SE San Antonio Air Logistics Center
Kelly AFB, TX 78241-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code Z unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 1680-00-435-5414

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
