NSN 1680-00-333-8923 A21895667900, A218-956679-00, G56679
Product Details | AIRCRAFT CONTROLLER GRIP ASSEMBLY
1680-00-333-8923 A hand grip, usually of pistol grip design, made of rubber, plastic or other material and designed to be mounted on an aircraft control stick to provide a formed gripping surface. It incorporates electrical controls, such as resistor(s) and/or switches for remotely actuating associated equipment, such as servos, armament, trim tabs, and the like. Excludes SWITCH, TRIGGER and other multiapplication switches.
Part Alternates: A21895667900, A218-956679-00, G56679, MILS5210TYPEB8A, B8A, 53C4719, 1680-00-333-8923, 00-333-8923, 1680003338923, 003338923
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-333-8923 | 19339 ( GRIP ASSEMBLY, CONTROLLER, AIRCRAFT ) |

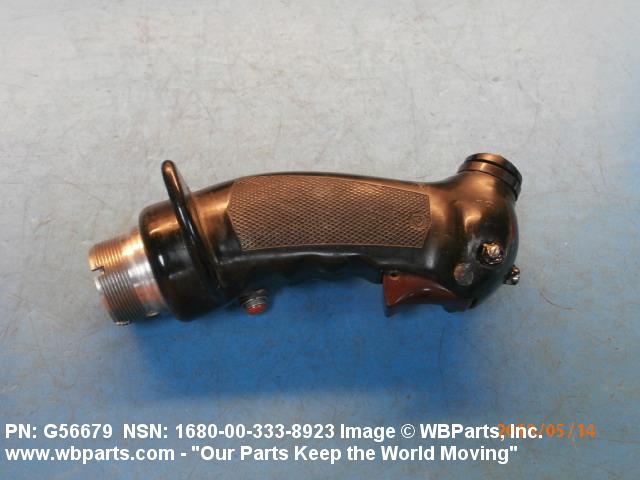

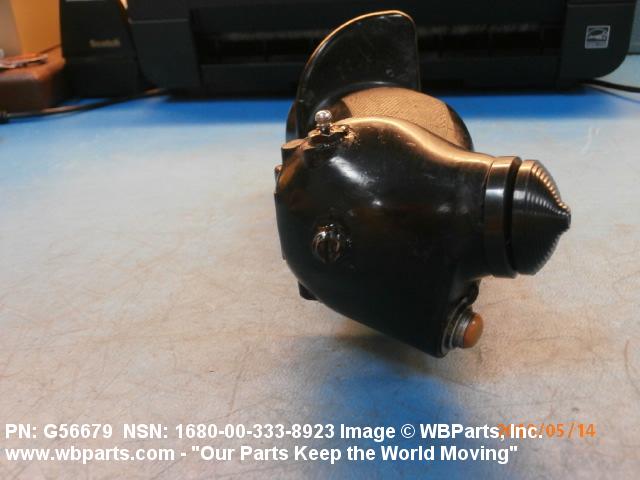

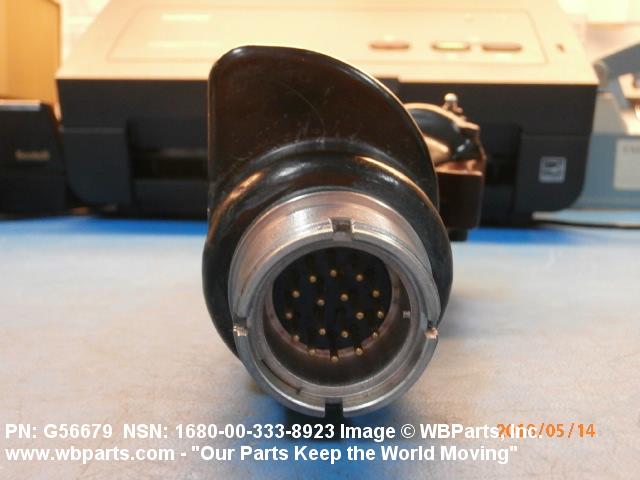

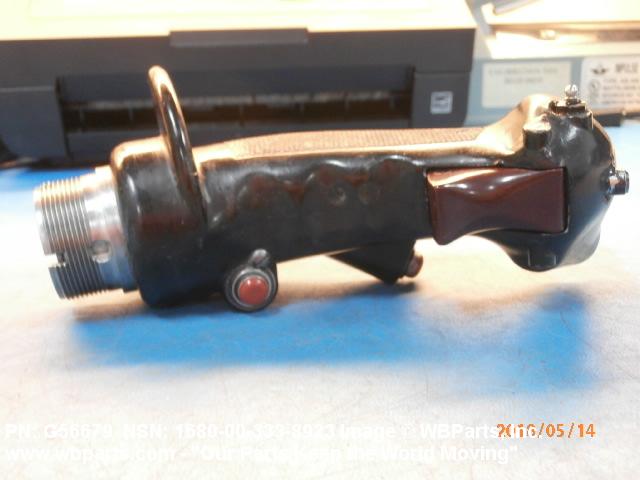

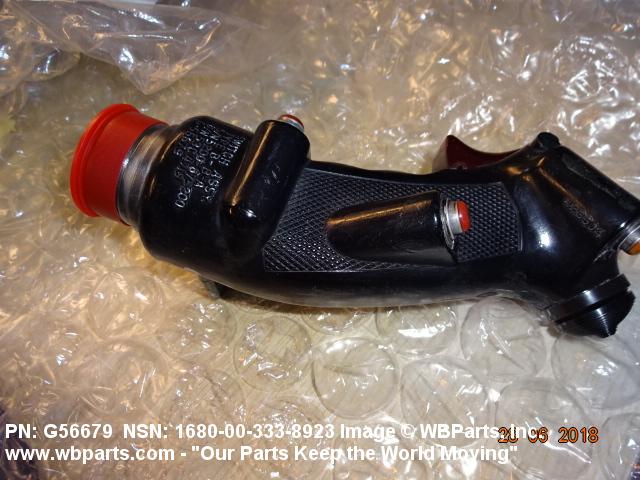

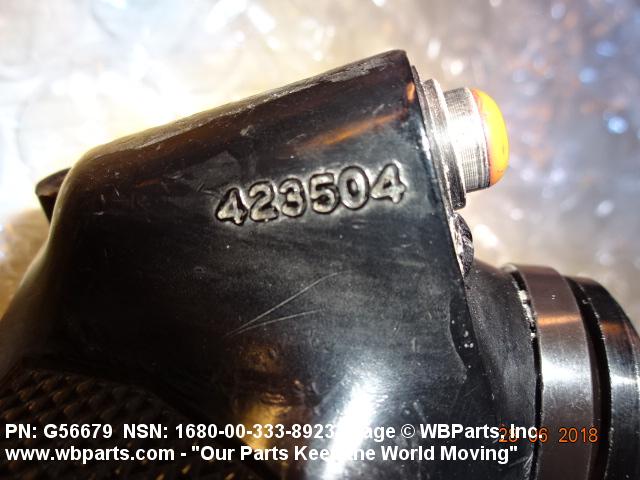

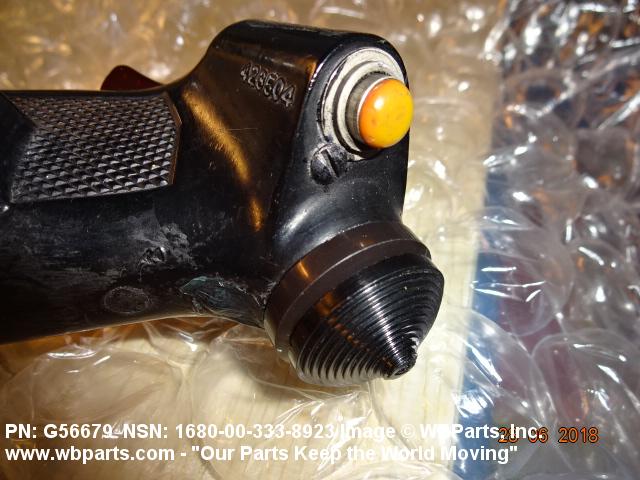

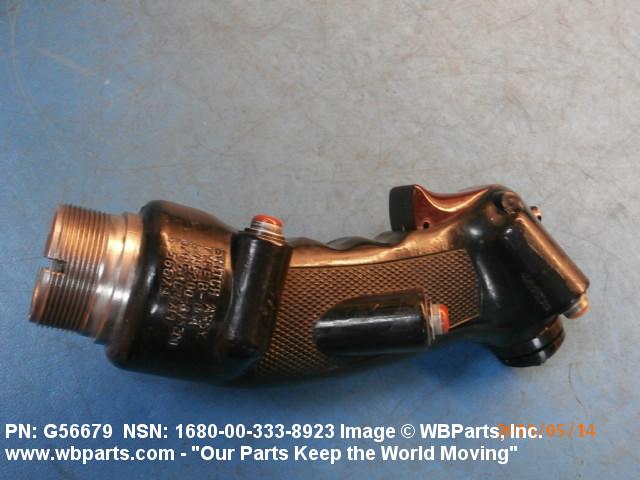

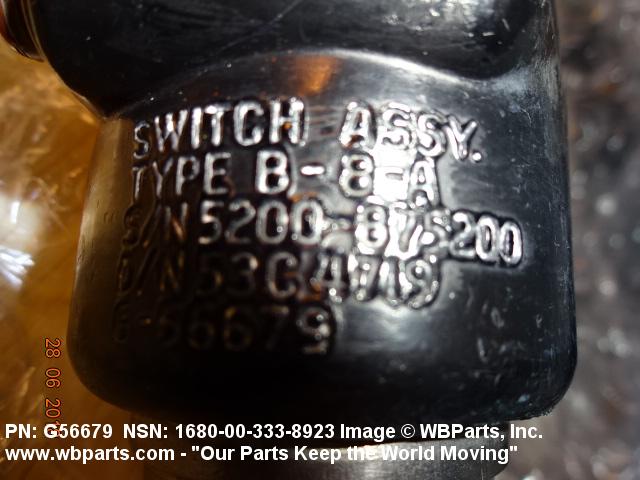

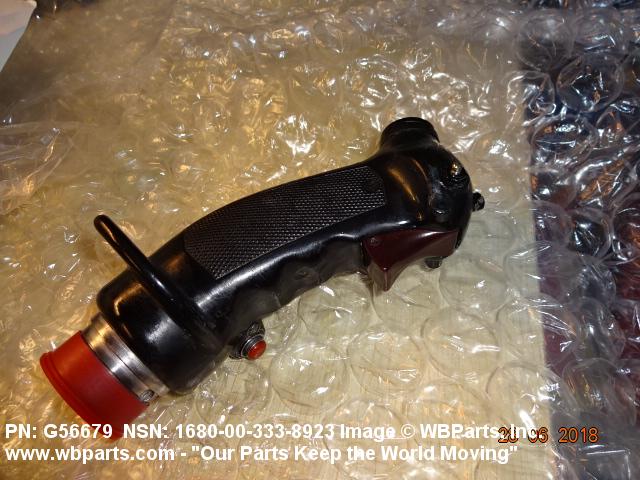

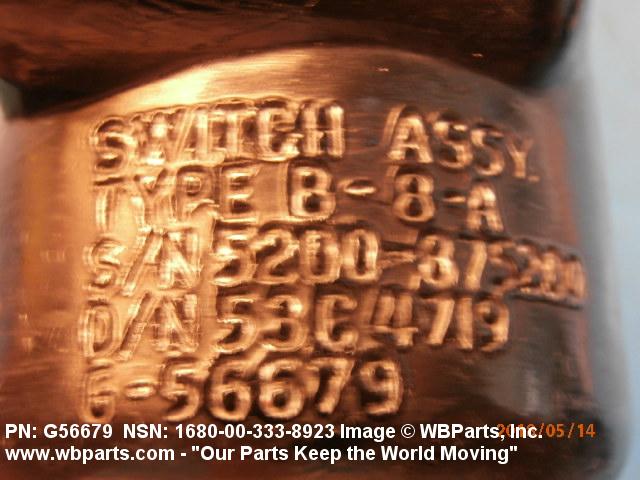

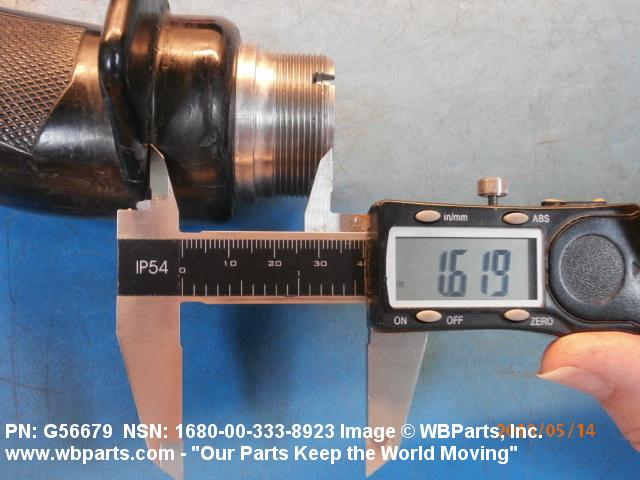

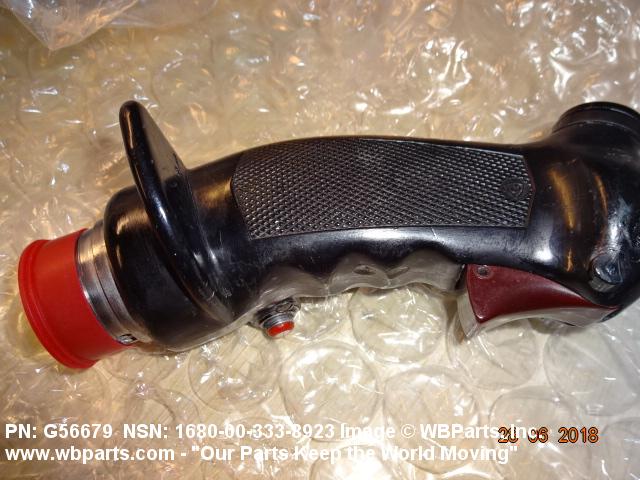

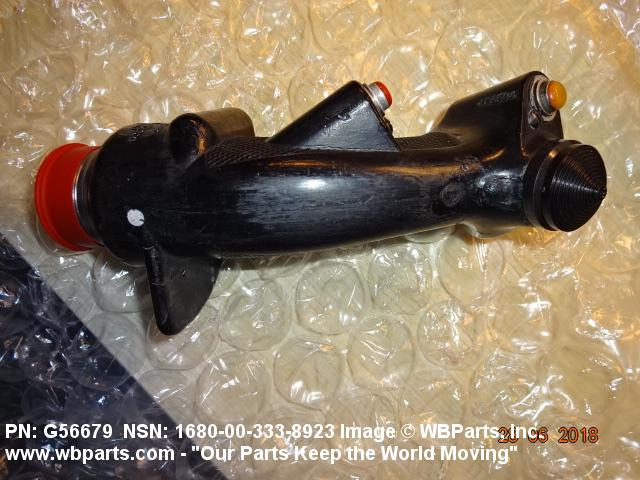

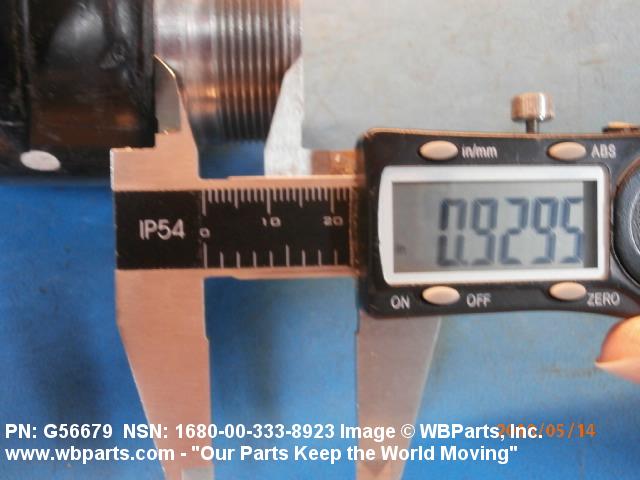

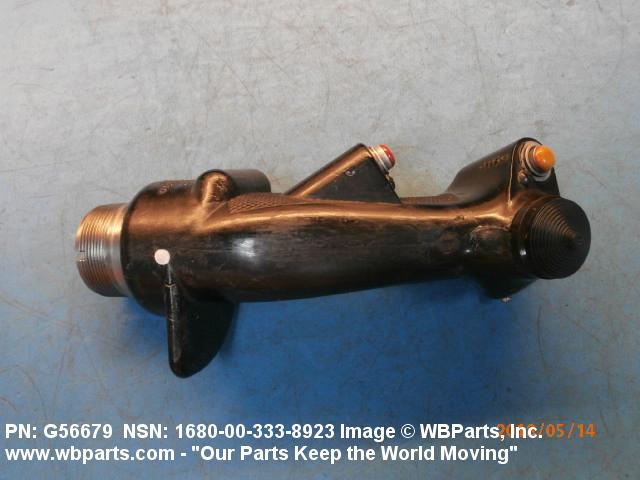

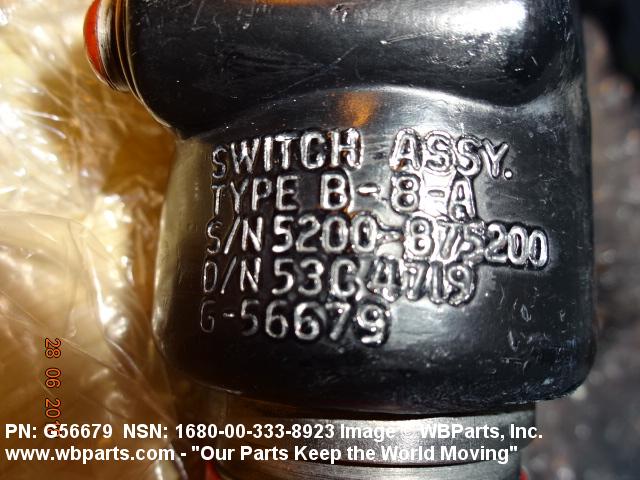

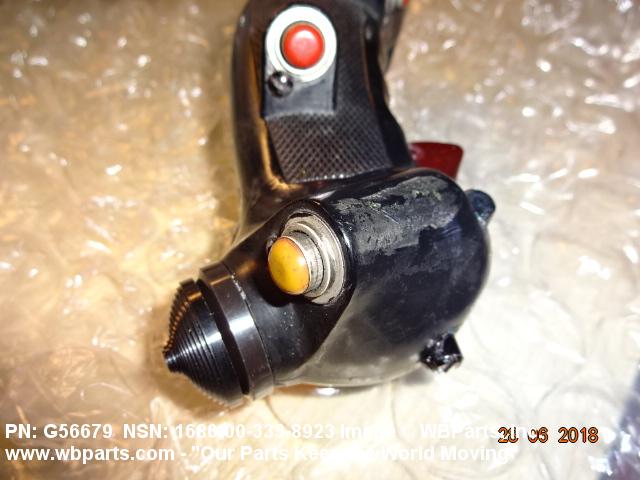

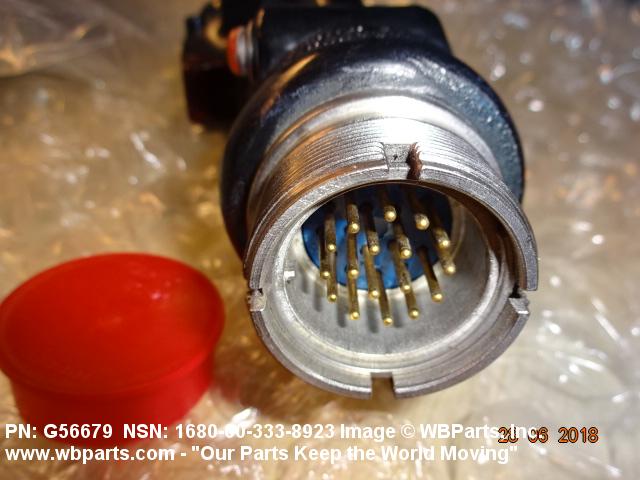

Drawings & Photos | NSN 1680-00-333-8923
Demand History | NSN 1680-00-333-8923
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-333-8923 | 2024-09-262 | 6 | United States |
| A21895667900 | 2023-05-151 | 2 | ID |
| 1680-00-333-8923 | 2021-12-359 | 1 | US |
| 1680-00-333-8923 | 2021-12-359 | 1 | US |
| 1680-00-333-8923 | 2019-05-132 | 1 | US |
| 1680-00-333-8923 | 2018-06-180 | 3 | PK |
| 1680-00-333-8923 | 2018-04-103 | 2 | Australia |
| 1680-00-333-8923 | 2016-11-322 | 1 | US |
| 1680-00-333-8923 | 2013-04-112 | 1 | AU |
| 1680-00-333-8923 | 2012-06-177 | 1 | US |
| 1680-00-333-8923 | 2008-07-193 | 1 | US |
| A21895667900 | 2007-04-116 | 2 | France |
Cross Reference | NSN 1680-00-333-8923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 53C4719 | 80049 | DEPARTMENT OF THE AIR FORCE |
| 53C4719 | 97151 | AIR FORCE LOGISTICS COMMAND 88 0SS OSE |
| A218-956679-00 | 73949 | GUARDIAN ELECTRIC MANUFACTURING CO. |
| B8A | 97151 | AIR FORCE LOGISTICS COMMAND 88 0SS OSE |
| G56679 | 73949 | GUARDIAN ELECTRIC MANUFACTURING CO. |
| MILS5210TYPEB8A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-00-333-8923
Technical Data | NSN 1680-00-333-8923
| Characteristic | Specifications |
|---|---|
| GRIP MATERIAL | PLASTIC |
| DESIGN TYPE | PISTOL |
| GRIPPING ACCOMMODATION TYPE | FINGER NOTCHED |
| MOUNTING END TYPE | EXTERNAL |
| MOUNTING END DIAMETER | 1.500 INCHES NOMINAL |
| MOUNTING END LENGTH | 2.843 INCHES NOMINAL |
| MOUNTING END BOLT HOLE | NOT INCLUDED |
| GRIP LENGTH | 6.000 INCHES NOMINAL |
| SWITCH TYPE | PUSH BUTTON TOGGLE TRIGGER |
| SWITCH QUANTITY | 3 1 1 |
| SWITCH LOCATION | LOCATED AT LH SIDE NEAR MIDDLE,LH SIDE NEAR TOP AND BACK OF GRIP NEAR BOTTOM LOCATED AT TOP IN FRONT OF GRIP LOCATED AT BACK NEAR TOP OF GRIP |
| VARIABLE RESISTOR | NOT INCLUDED |
| ELECTRICAL CABLE | NOT INCLUDED |
| TERMINAL QUANTITY | 17 |
| TERMINAL TYPE | RECEPTACLE |
| NONDEFINITIVE SPEC/STD DATA | B8A TYPE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS5210TYPEB8A |
Restrictions/Controls & Freight Information | NSN 1680-00-333-8923
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-00-333-8923
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
