NSN 1680-00-185-8191 06111053, 0611105-3, 00-185-8191
Product Details | DOOR HANDLE
1680-00-185-8191 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 06111053, 0611105-3, 1680-00-185-8191, 00-185-8191, 1680001858191, 001858191
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-185-8191 | 18073 ( HANDLE, DOOR ) |
Drawings & Photos | NSN 1680-00-185-8191
Demand History | NSN 1680-00-185-8191
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 06111053 | 2011-07-186 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-00-185-8191
Technical Data | NSN 1680-00-185-8191
| Characteristic | Specifications |
|---|---|

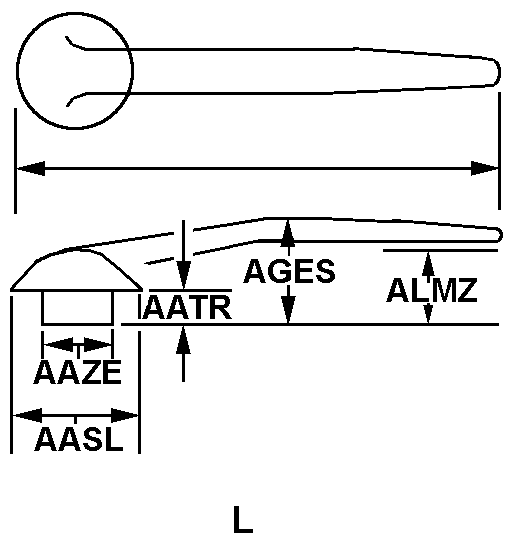

| STYLE DESIGNATOR | C9 L |
| HEAD DIAMETER | 1.000 INCHES NOMINAL |
| SHANK LENGTH | 0.250 INCHES NOMINAL |
| SHANK DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 4.438 INCHES NOMINAL |
| SHAFT ACCOMMODATION STYLE | V1 ROUND |
| ACCOMMODATED SHAFT DIAMETER | 0.437 INCHES NOMINAL |
| MANUFACTURERS CODE | 4J976 |
| DESIGN CONTROL REFERENCE | 0611105-3 |
Restrictions/Controls & Freight Information | NSN 1680-00-185-8191
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | Y | Personnel services, Military Service Records, files, or other information subject to the Privacy Act of 1974. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
